Power MOSFETS | Status : Preferred

MCGD115NP10L

Part Number	Number of Functions	Channel	Drain-Source Voltage V_DS (V)	Gate-Source Voltage V_GS (V)	Drain Current I_D (A)	Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω)	Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω)	Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω)	Gate Threshold Voltage VGS(th) Min (V)	Gate Threshold Voltage VGS(th) Max (V)	ESD Diodes	Junction Temperature Tj [max] (°C)	Single Pulsed Avalanche Energy E_AS(mJ)	Pulsed Drain Current I_DM(A)	Input Capacitance Ciss(pF)	Output Capacitance Coss(pF)	Power Rating P_D(W)	Total Gate Charge Qg(nC)	Gate-Drain Charge Qgd(nC)
MCGD115NP10L	Dual	N+P	100/-100	±20	10/-5.5	0.115/0.325	0.125/0.350		1.3/-1.0	2.3/-2.0	No	150	8/6.1	40/-22	851/949	30/24	31/24	23/18.4	6.7/2.2

Part Number MCGD115NP10L

Number of Functions Dual

Channel N+P

Drain-Source
Voltage
V_DS (V) 100/-100

Gate-Source
Voltage
V_GS (V) ±20

Drain
Current
I_D (A) 10/-5.5

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω) 0.115/0.325

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω) 0.125/0.350

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)

Gate
Threshold
Voltage
VGS(th)
Min
(V) 1.3/-1.0

Gate
Threshold
Voltage
VGS(th) Max
(V) 2.3/-2.0

ESD
Diodes No

Junction
Temperature
Tj [max]
(°C) 150

Single Pulsed
Avalanche
Energy
E_AS(mJ) 8/6.1

Pulsed Drain
Current
I_DM(A) 40/-22

Part Number	Package Type	Packing Specification	Component Weight (g)	Marking Code	Packing Info

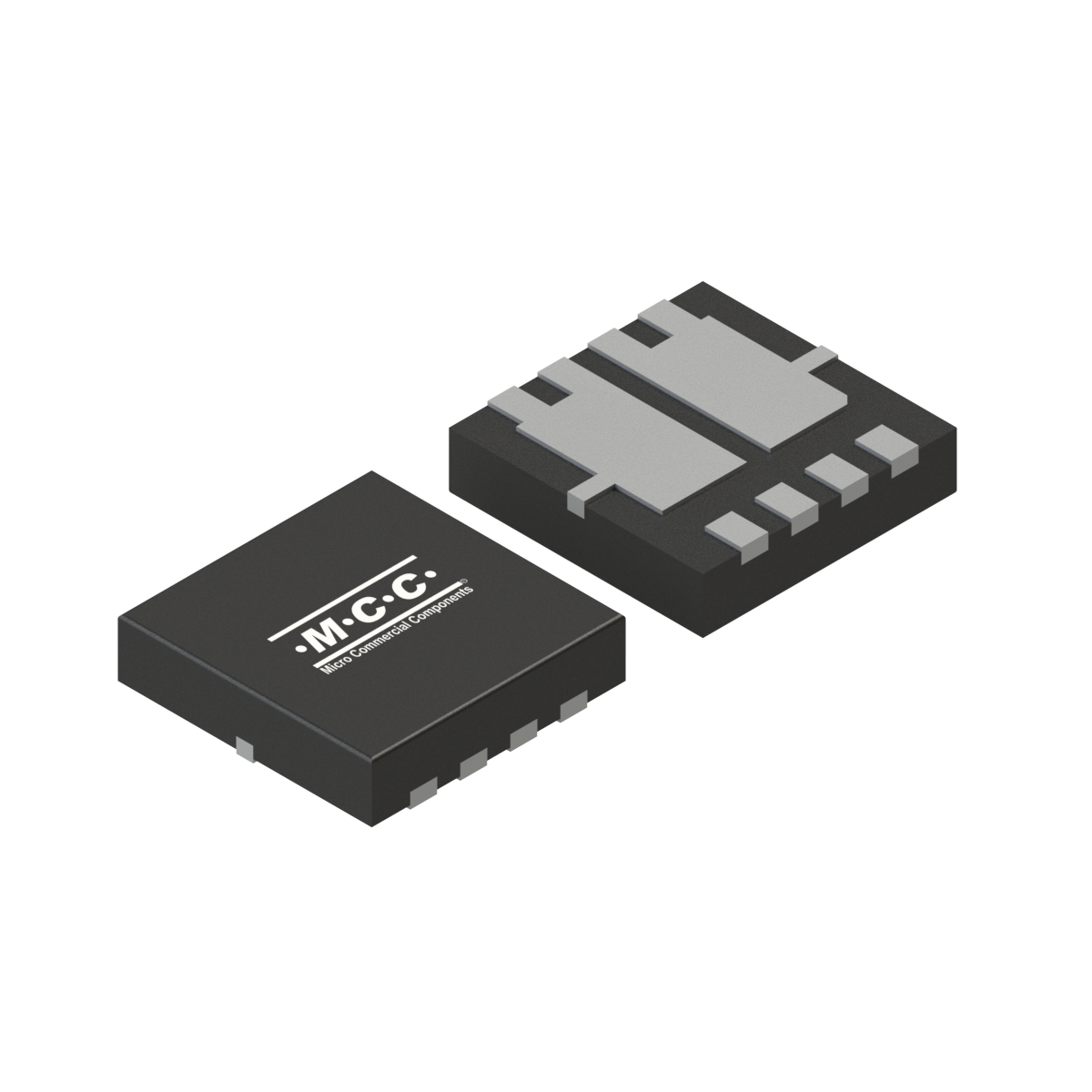

MCGD115NP10L	DFN3333-D	DFN3333-D	0.0272	115NP10L	Tape&Reel:5Kpcs/Reel;

Reliability Report	Soldering Profile	Environmental Compliance
Download	Download	Download

MSL	Halogen Free	MTBF	FIT
3		0.00	0.0
