Power MOSFETS | Status : Active
Automotive

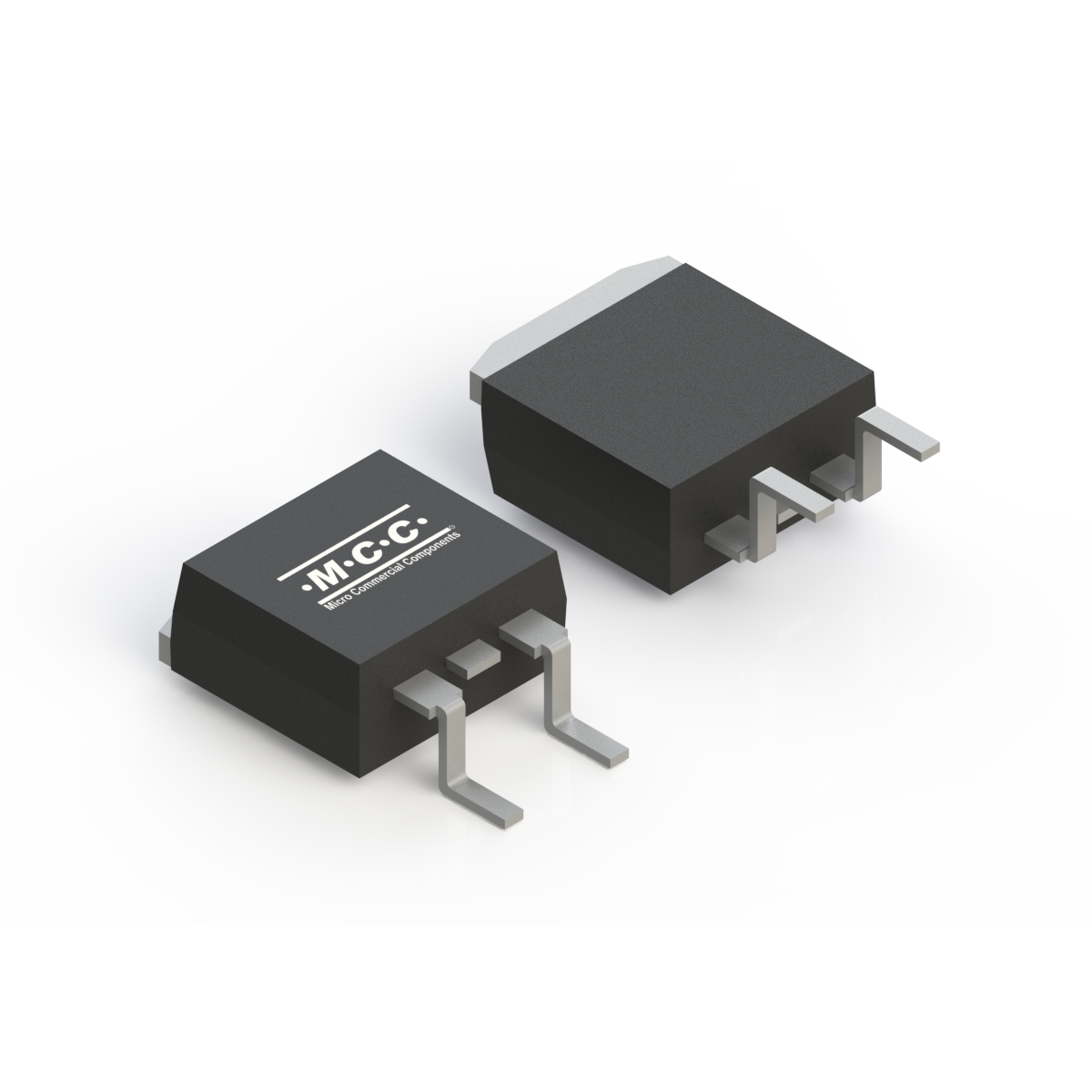

MCB70N15YHE3

  • Package Type:D2-PAK
  • Packing Info:Tape&Reel:800pcs/Reel;
  • Category:Power MOSFETS
Check Stock Add To Cart

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)
Gate-Source
Voltage
VGS (V)
Drain
Current
ID (A)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)
Gate
Threshold
Voltage
VGS(th)
Min
(V)
Gate
Threshold
Voltage
VGS(th) Max
(V)
ESD
Diodes
Junction
Temperature
Tj [max]
(°C)
Single Pulsed
Avalanche
Energy
EAS(mJ)
Pulsed Drain
Current
IDM(A)
Input
Capacitance
Ciss(pF)
Output
Capacitance
Coss(pF)
Power
Rating
PD(W)
Total Gate
Charge
Qg(nC)
Gate-Drain
Charge
Qgd(nC)
MCB70N15YHE3 Single N 150 ±20 70 0.017 2 4 No 175 200 280 2517 210 180 40 11
Part Number MCB70N15YHE3 Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)
 150
Gate-Source
Voltage
VGS (V)
 ±20
Drain
Current
ID (A)
 70
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)
 0.017
Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)

Gate
Threshold
Voltage
VGS(th)
Min
(V)
 2
Gate
Threshold
Voltage
VGS(th) Max
(V)
 4
ESD
Diodes
 No
Junction
Temperature
Tj [max]
(°C)
 175
Single Pulsed
Avalanche
Energy
EAS(mJ)
 200
Pulsed Drain
Current
IDM(A)
 280

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCB70N15YHE3 D2-PAK D2-PAK 1.4040 MCB70N15Y Tape&Reel:800pcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free
1 Halogen Free
