Power MOSFETS | Status : Active

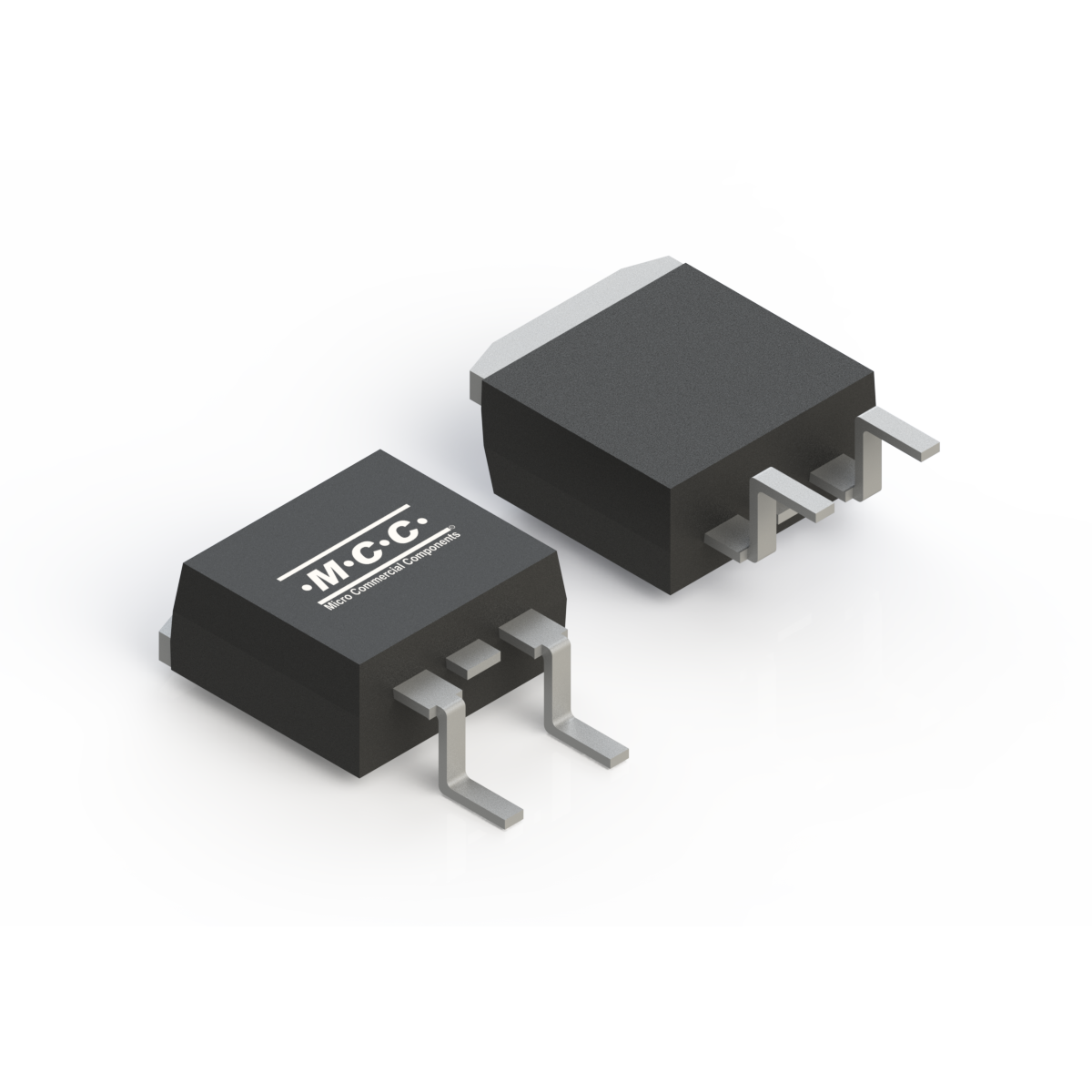

MCB200N06Y

  • Package Type:D2-PAK
  • Packing Info:Tape&Reel:800pcs/Reel;
  • Category:Power MOSFETS
  • MPN:MCB200N06Y-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)		 Gate
Threshold
Voltage
VGS(th)
Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCB200N06Y Single N 60 ±20 200 0.0029 0.0039 1.2 2.2 No 150 500 800 5200 1280 260 85 9.3
Part Number MCB200N06Y Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  60 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  200 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)  0.0029 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)  0.0039 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)   		Gate
Threshold
Voltage
VGS(th)
Min
(V)  1.2 		Gate
Threshold
Voltage
VGS(th) Max
(V)  2.2 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  150 		Single Pulsed
Avalanche
Energy
EAS(mJ)  500 		Pulsed Drain
Current
IDM(A)  800

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCB200N06Y D2-PAK D2-PAK 1.4040 MCB200N06Y Tape&Reel:800pcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 12490.58 9.1

ECN/PCN

ECN/PCN No# Title PDF Issued Date
040725-1 Improve FT yield PDF 04/07/2025
