Super Fast Recovery Rectifiers | Status : Active

MURB10120C

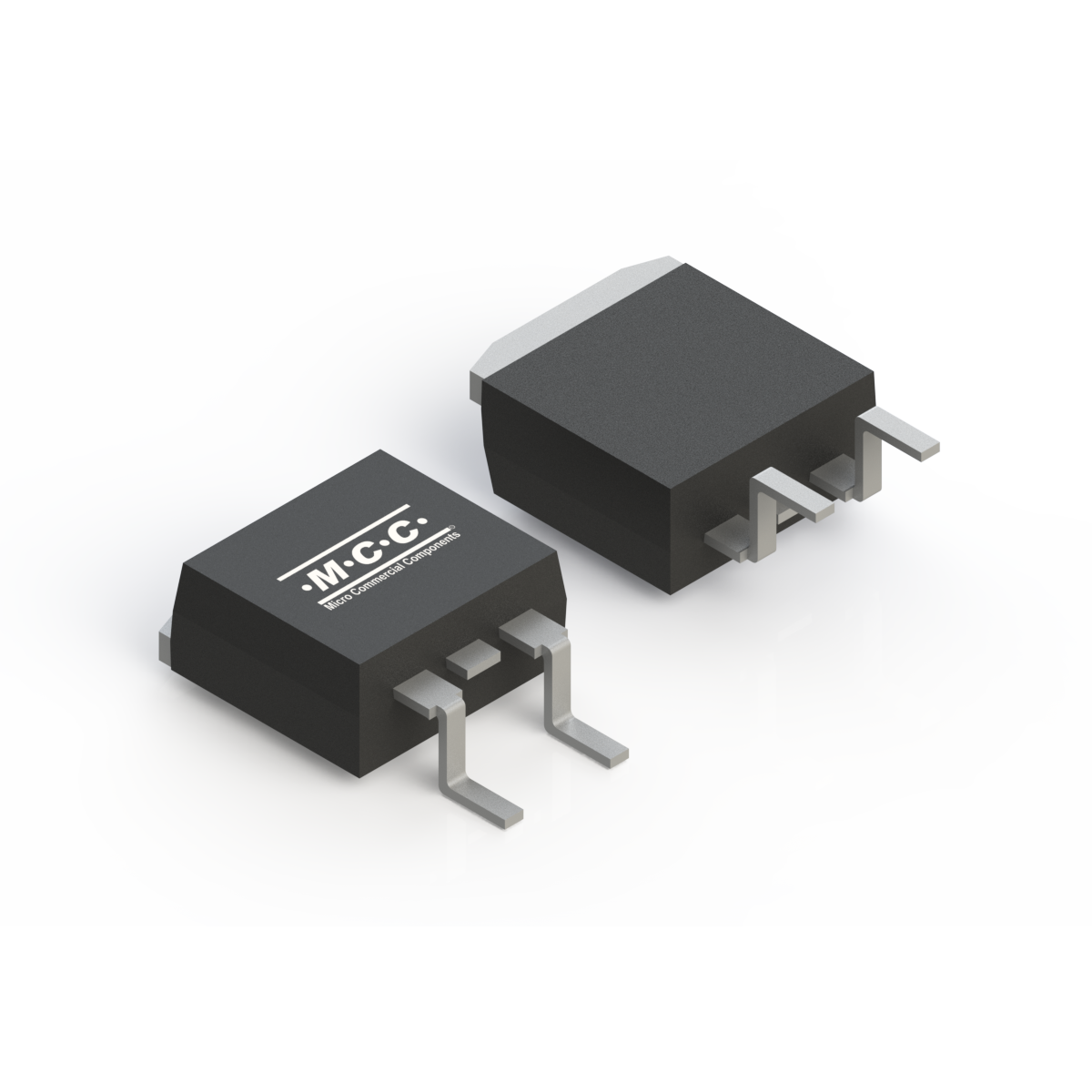

  • Package Type:D2-PAK
  • Packing Info:Tube: 50pcs/Tube, Tape : 800pcs/Reel , 6.4K/Ctn.; Tube: 50pcs/Tube, Tape : 800pcs/Reel , 6.4K/Ctn.;
  • Category:Super Fast Recovery Rectifiers
  • MPN:MURB10120C-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MURB10120C Single 10 1200 2.4 10 0.075 110 10 1200 150
Part Number MURB10120C Number of Functions Single IF(AV)(A)  10 VRWM (V)  1200 VF
(V) [max]@IF(A)  2.4 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.075 IFSM (A)  110 IF(A)  10 VR (V)  1200 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MURB10120C D2-PAK D2-PAK 1.4040 MURB10120C Tube: 50pcs/Tube, Tape : 800pcs/Reel , 6.4K/Ctn.;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 19984.92 5.7

ECN/PCN

ECN/PCN No# Title PDF Issued Date
040423-1 Qualified Additional Wafer Source for MURB10120C-TP PDF 04/04/2023
