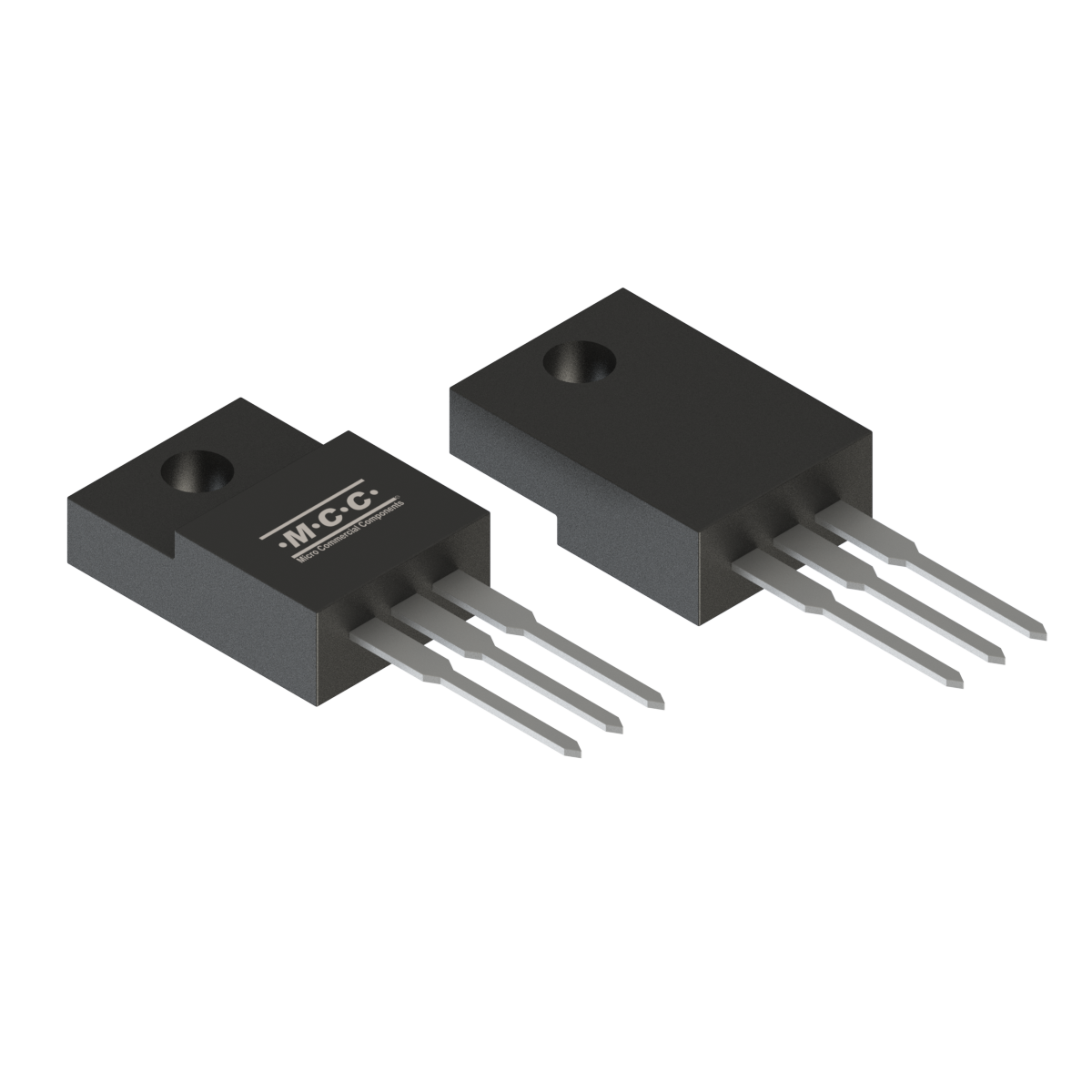

Super Fast Recovery Rectifiers | Status : Active

MUR1040FCT

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MUR1040FCT Dual 10 400 1.3 10 0.05 80 5 400 150
Part Number MUR1040FCT Number of Functions Dual IF(AV)(A)  10 VRWM (V)  400 VF
(V) [max]@IF(A)  1.3 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.05 IFSM (A)  80 IF(A)  5 VR (V)  400 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MUR1040FCT ITO-220AB ITO-220AB 1.6200 MUR1040FCT

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL MTBF FIT
N/A 22483.04 5.1

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080622-1 ITO-220 Series Package Pin Dimension Change PDF 08/06/2022
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
