Small Signal Bipolar Transistors | Status : Active

EMZ1

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
EMZ1 Dual NPN+PNP 0.15 50/-50 0.15/-0.15 120/120 560/560 0.4/-0.5 180/140 150
Part Number EMZ1 Number of Functions Dual Polarity NPN+PNP PD (W)  0.15 VCEO(V)  50/-50 IC (A)  0.15/-0.15 HFE [min]  120/120 HFE [max]  560/560 VCE(sat) [max]
(V)  0.4/-0.5 		fT(MHz)  180/140 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

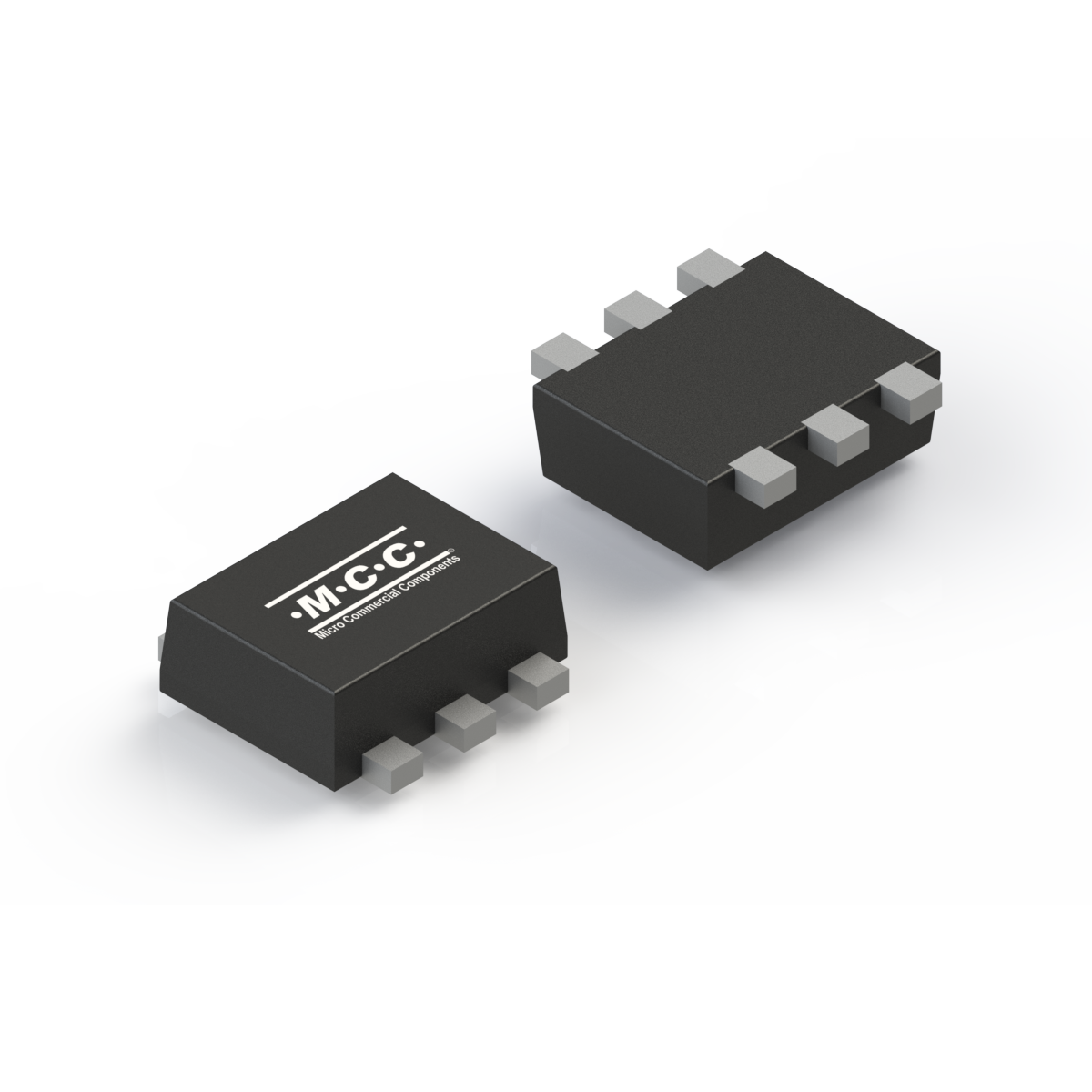

EMZ1 SOT-563 SOT-563 0.0030 Z1 Tape&Reel:3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
043021-2 Additional new lead frame for SOT-563 Package PDF 04/30/2021
