Small Signal Bipolar Transistors | Status : Active

MMDT2222A

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
MMDT2222A Dual NPN*2 0.15 40 0.6 100 300 1 300 150
Part Number MMDT2222A Number of Functions Dual Polarity NPN*2 PD (W)  0.15 VCEO(V)  40 IC (A)  0.6 HFE [min]  100 HFE [max]  300 VCE(sat) [max]
(V)  1 		fT(MHz)  300 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

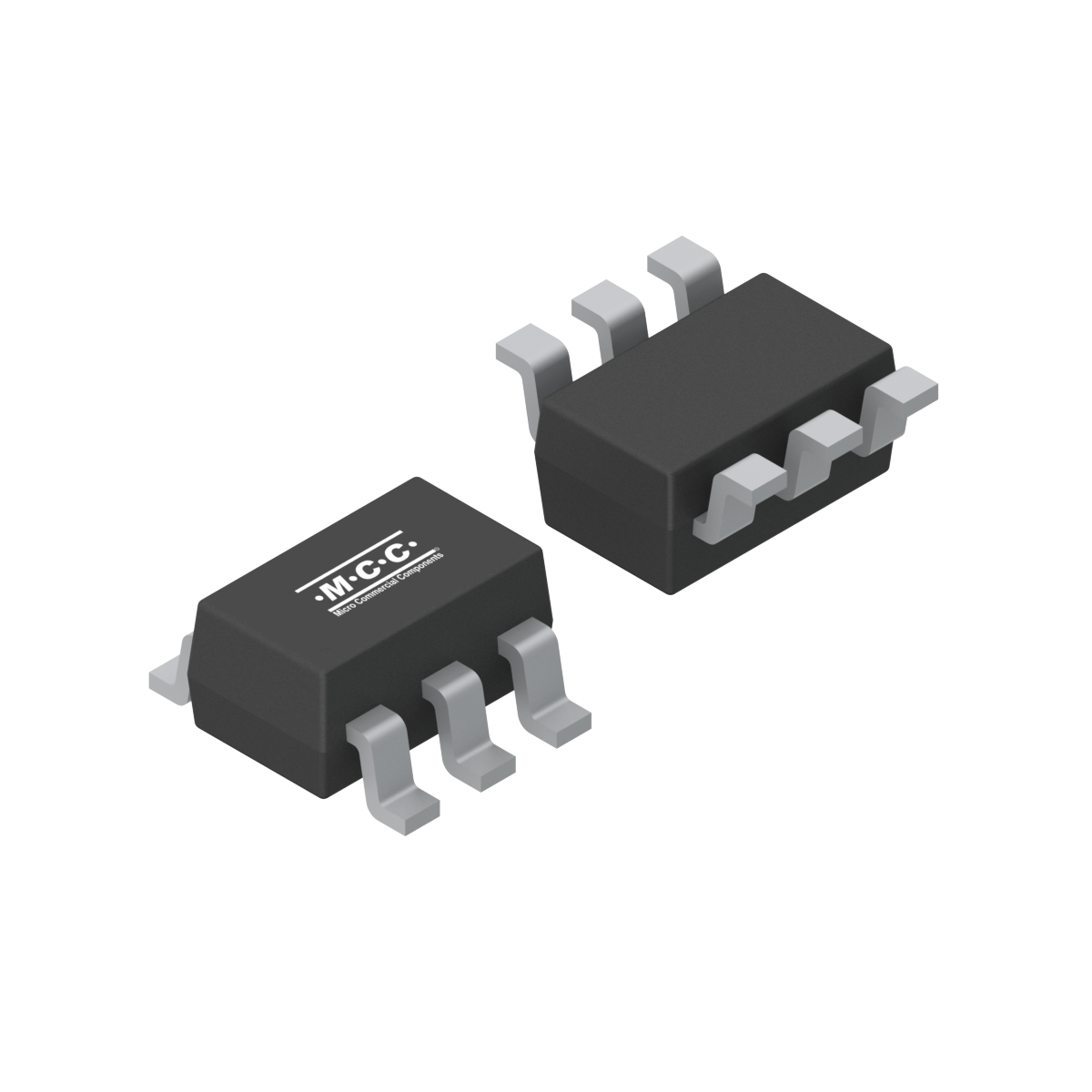

MMDT2222A SOT-363 SOT-363 0.0090 K1P Tape: 3K/Reel , 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
031325-1 Additional new 2nd source PDF 03/13/2025
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003

Similar Recommendations

Part Number Category Package Type Status Datasheet
MMBT2222A Small Signal Bipolar Transistors SOT-23 Active Datasheet
MMBT3904 Small Signal Bipolar Transistors SOT-23 Active Datasheet
MMBT4401 Small Signal Bipolar Transistors SOT-23 Active Datasheet
MMST2222A Small Signal Bipolar Transistors SOT-323 Active Datasheet
