Pre-Biased Transistors | Status : Active

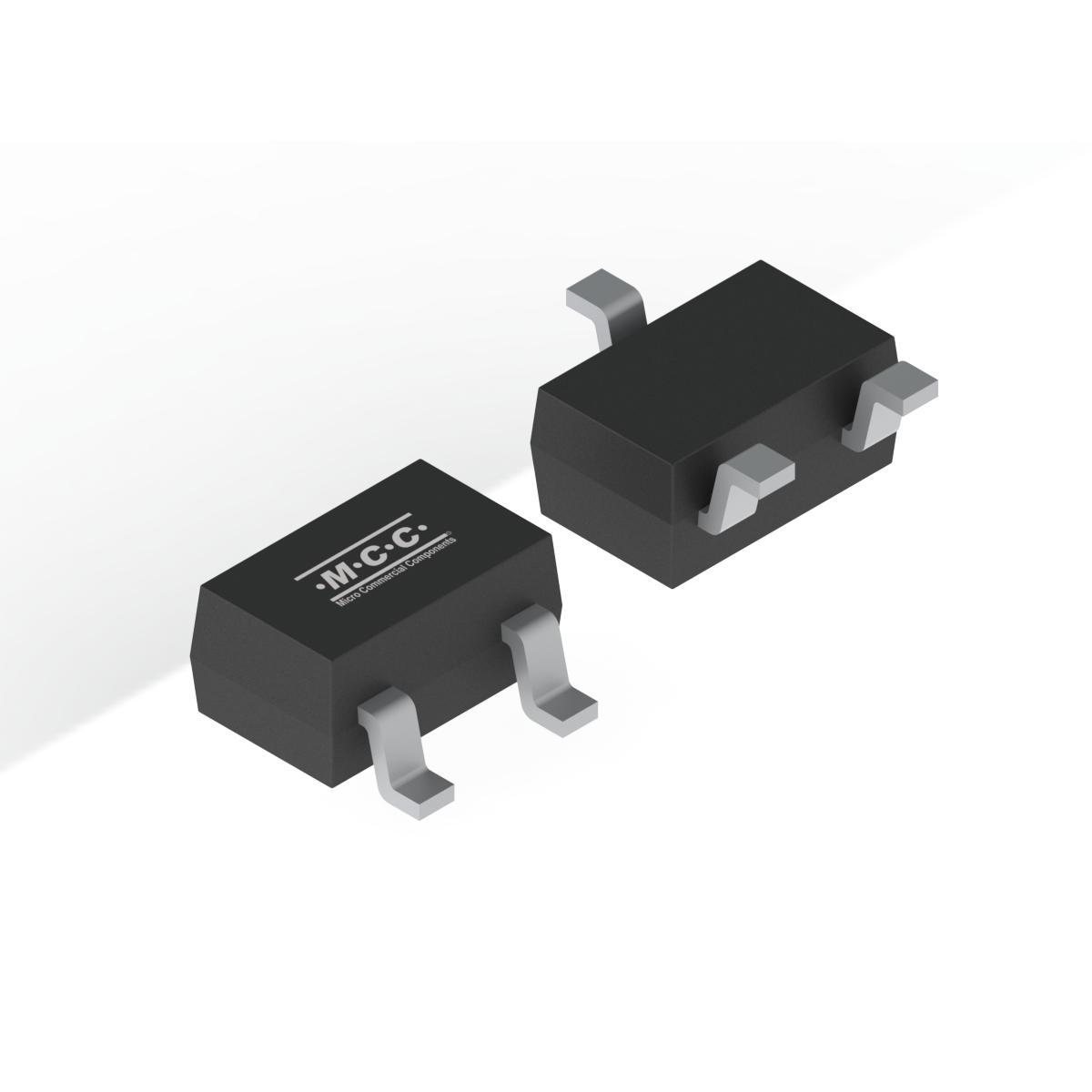

DTC144EUA

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Polarity IO(mA) R1 Typ (KΩ) R2 Typ (KΩ) VCC(V) fT(MHz) PD(mW) Tj [max] (°C)
DTC144EUA Single(R1/R2) NPN 100 47 47 50 250 200 150
Part Number DTC144EUA Number of Functions Single(R1/R2) Polarity NPN IO(mA)  100 R1 Typ (KΩ)  47 R2 Typ (KΩ)  47 VCC(V)  50 fT(MHz)  250 PD(mW)  200 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
DTC144EUA SOT-323 SOT-323 0.0050 26 Tape: 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
