Medium Power Bipolar Transistors | Status :
Active
FMMT5350Z

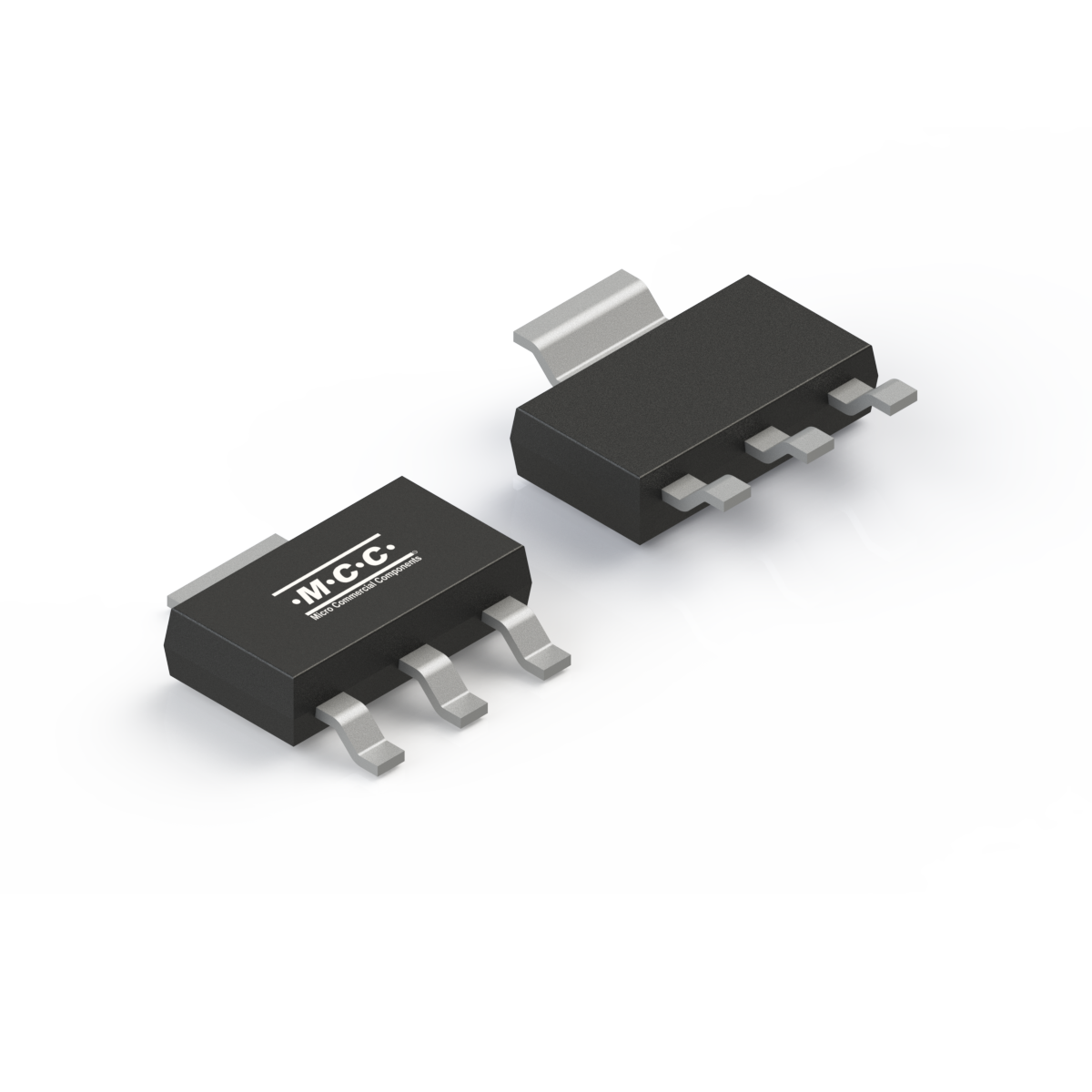

- Package Type:SOT-223
- Packing Info:Tape&Reel:2.5Kpcs/Reel;
- Category:Medium Power Bipolar Transistors
- MPN:FMMT5350Z-TP
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| FMMT5350Z | Single | PNP | 0.5 | -50 | -3 | 200 | -0.3 | 150 | 150 |
| Part Number FMMT5350Z | Number of Functions Single | Polarity PNP | PD (W) 0.5 | VCEO(V) -50 | IC (A) -3 | HFE [min] 200 | HFE [max] |
VCE(sat) [max] (V) -0.3 |
fT(MHz) 150 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|---|
|
1 |
|
0.00 | 0.0 |
