Medium Power Bipolar Transistors | Status : Active

BC869

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
BC869 Single PNP 0.5 -20 -1 100 375 -0.5 40 150
Part Number BC869 Number of Functions Single Polarity PNP PD (W)  0.5 VCEO(V)  -20 IC (A)  -1 HFE [min]  100 HFE [max]  375 VCE(sat) [max]
(V)  -0.5 		fT(MHz)  40 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

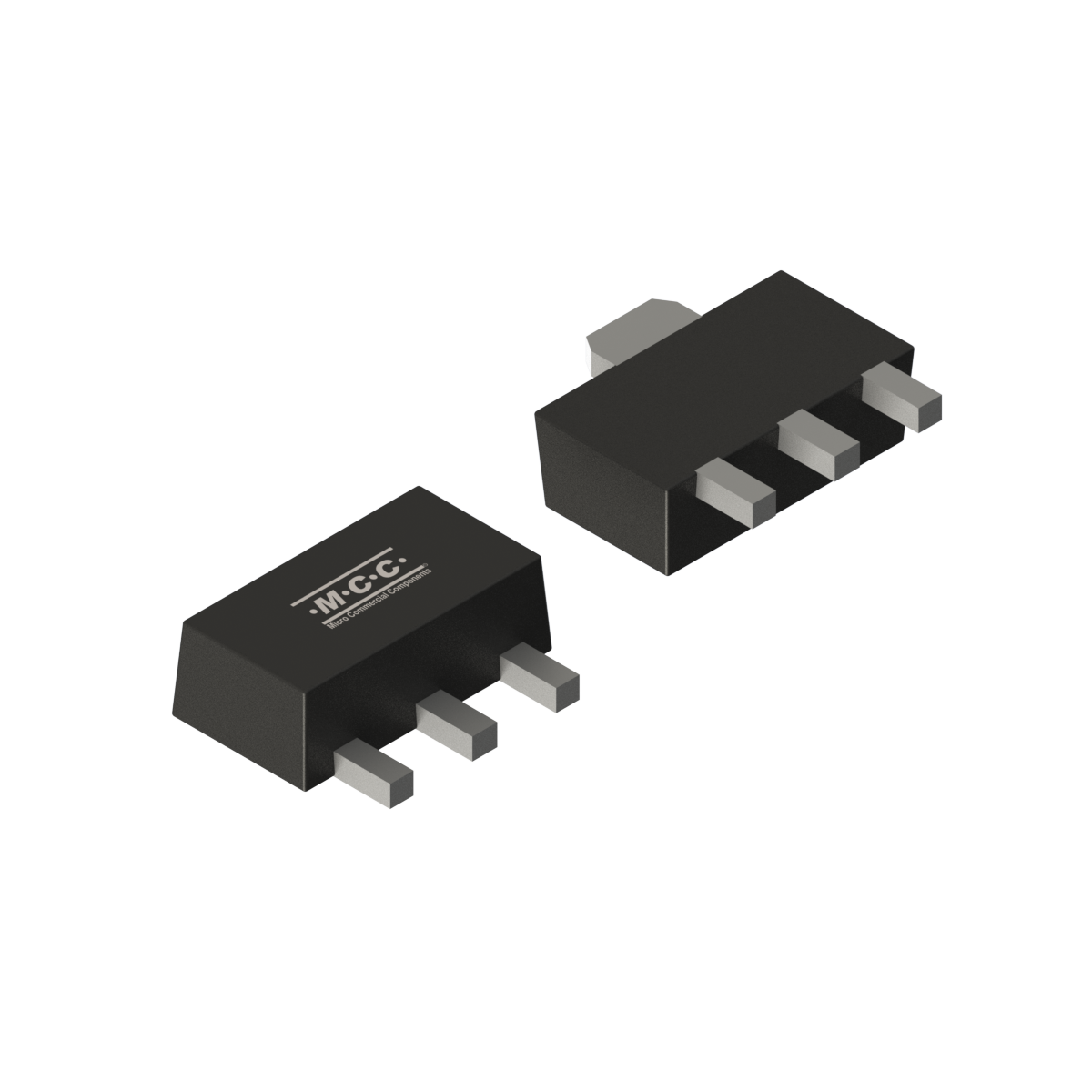

BC869 SOT-89 SOT-89 0.0450 CEC Tape: 1K/Reel , 40K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
122421-1 MCC will update the products packing method for SOT-223 & SOT-89 packages. PDF 12/24/2021
113021-1 Additional new wafer source for SOT-89 & SOT-223 Parts PDF 11/30/2021
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
