Medium Power Bipolar Transistors | Status :
Allocation
BCP69-16

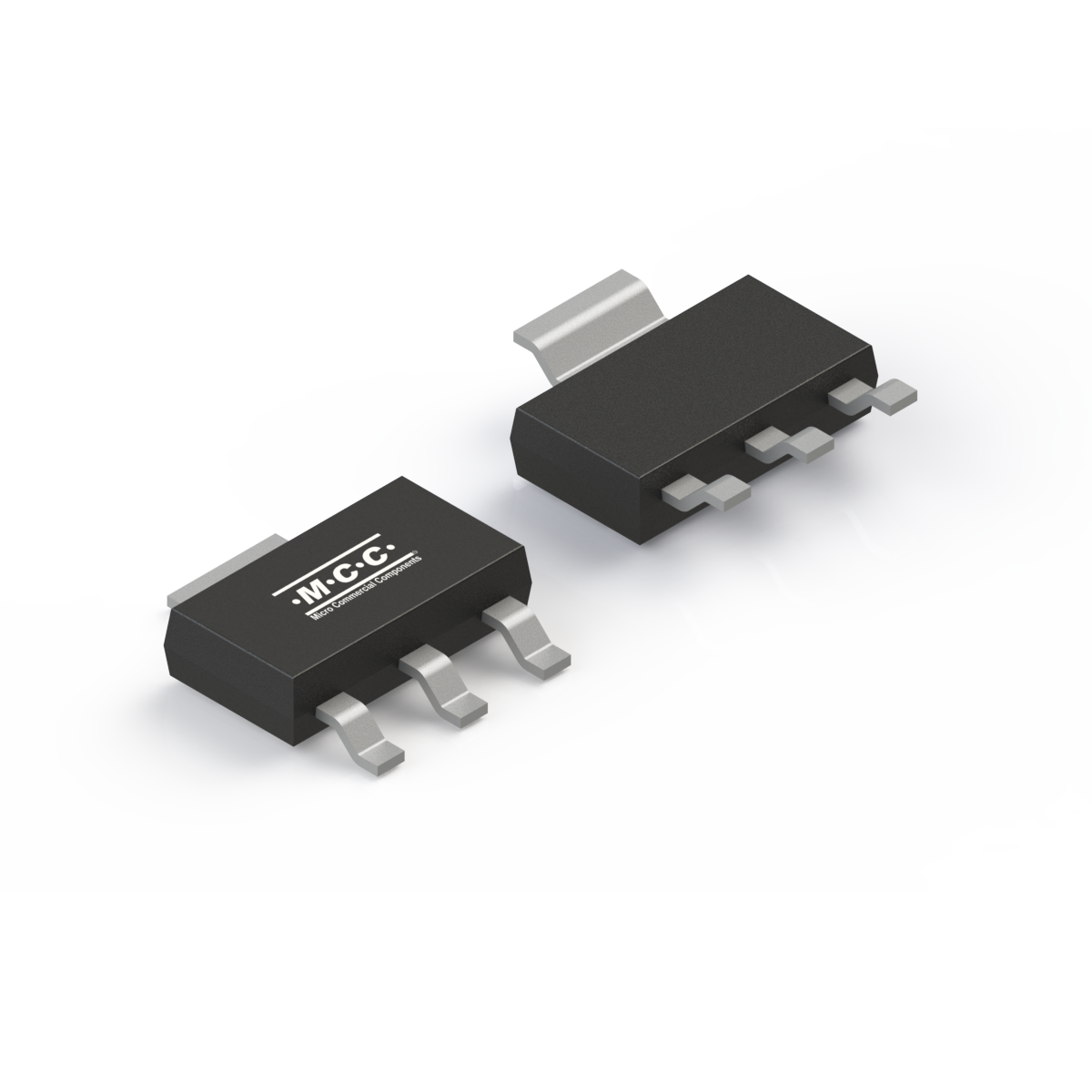

- Package Type:SOT-223
- Packing Info:Tape&Reel:2.5Kpcs/Reel;
- Category:Medium Power Bipolar Transistors
- MPN:BCP69-16-TP
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| BCP69-16 | Single | PNP | 1 | -20 | -1 | 100 | 250 | -0.5 | 40 | 150 |
| Part Number BCP69-16 | Number of Functions Single | Polarity PNP | PD (W) 1 | VCEO(V) -20 | IC (A) -1 | HFE [min] 100 | HFE [max] 250 |
VCE(sat) [max] (V) -0.5 |
fT(MHz) 40 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free | MTBF | FIT |
|---|---|---|---|
|
|
19984.92 | 5.7 |
