Small Signal MOSFETS | Status :
Preferred

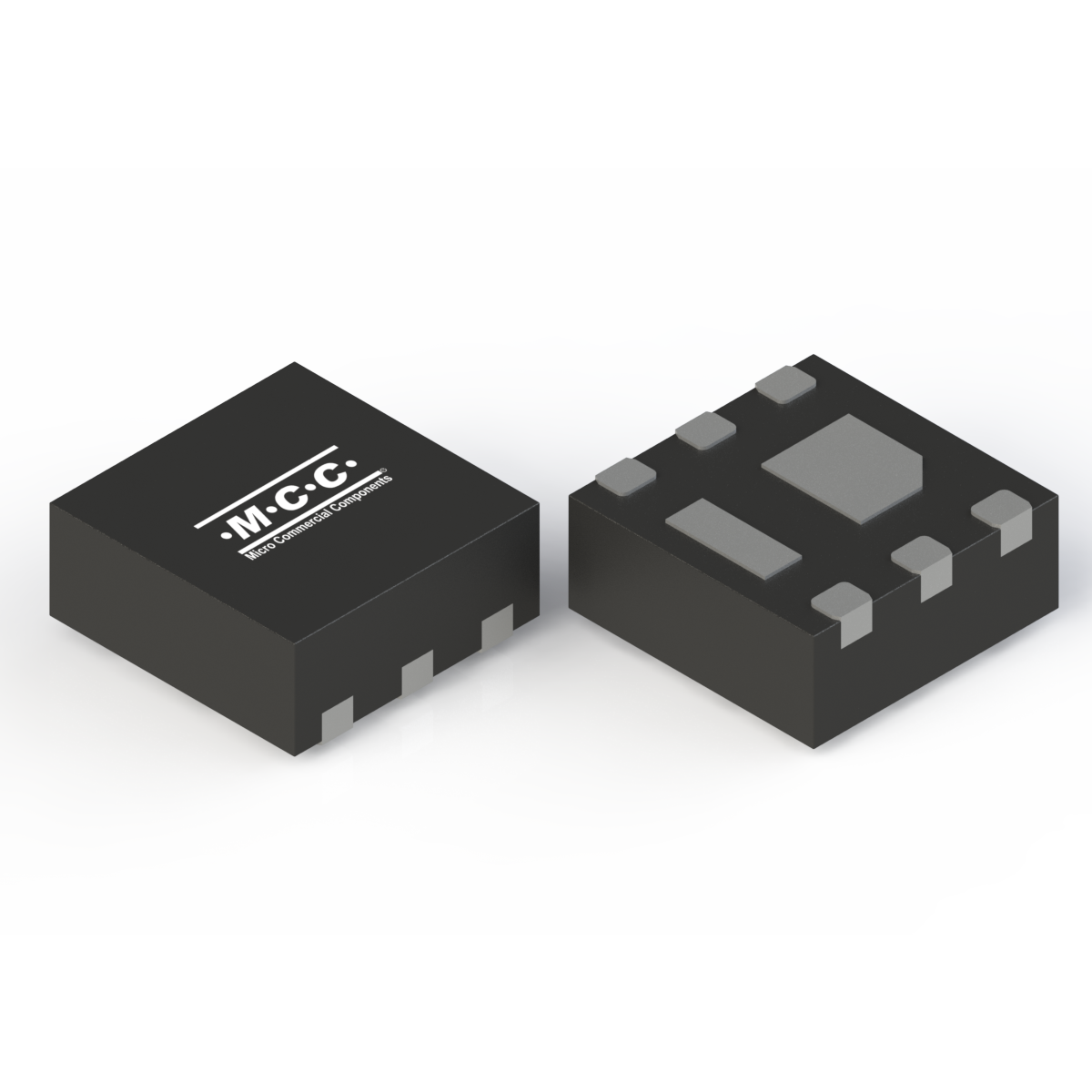

MCM028N03YU
- Package Type:DFN2020-6LE
- Packing Info:Tape&Reel:3Kpcs/Reel;
- Category:Small Signal MOSFETS
- MPN:MCM028N03YU-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
RDS(ON) Max @VGS=10V (Ω) |
RDS(ON) Max @VGS=4.5V (Ω) |
RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCM028N03YU | Single | N | 30 | ±12 | 10 | 0.028 | 0.035 | 0.45 | 1 | No | 150 | 520 | 60 | 16 | 16.5 | 2 |
| Part Number MCM028N03YU | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 30 |
Gate-Source Voltage VGS (V) ±12 |
Drain Current ID (A) 10 |
RDS(ON) Max @VGS=10V (Ω) |
RDS(ON) Max @VGS=4.5V (Ω) 0.028 |
RDS(ON) Max @VGS=2.5V (Ω) 0.035 |
Gate Threshold Voltage VGS(th) Min (V) 0.45 |
Gate Threshold Voltage VGS(th) Max (V) 1 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| MCM028N03YU | DFN2020-6LE | DFN2020-6LE | 0.0098 | 28N03Y | Tape&Reel:3Kpcs/Reel; |
Environmental Information
Download
| MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|
| 3 |
|
0.00 | 0.0 |
