Small Signal MOSFETS | Status : Active

SL3401A

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Channel VDS VGS ID RDS(ON)
Max
@VGS=10V 		RDS(ON)
Max
@VGS=4.5V 		RDS(ON)
Max
@VGS=2.5V 		VGS(th)
Max 		ESD
Diode 		SPICE Model
SL3401A Single P -30 ±12 -4.4 0.06 0.07 0.085 -1.3 No SL3401A.zip
V V A Ω Ω Ω V
Part Number SL3401A Number of Functions Single Channel P VDS  -30 VGS  ±12 ID  -4.4 RDS(ON) Max @VGS=10V  0.06 RDS(ON) Max @VGS=4.5V  0.07 RDS(ON) Max @VGS=2.5V  0.085 VGS(th) Max  -1.3 ESD Diode  No SPICE Model  SL3401A.zip

Package

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

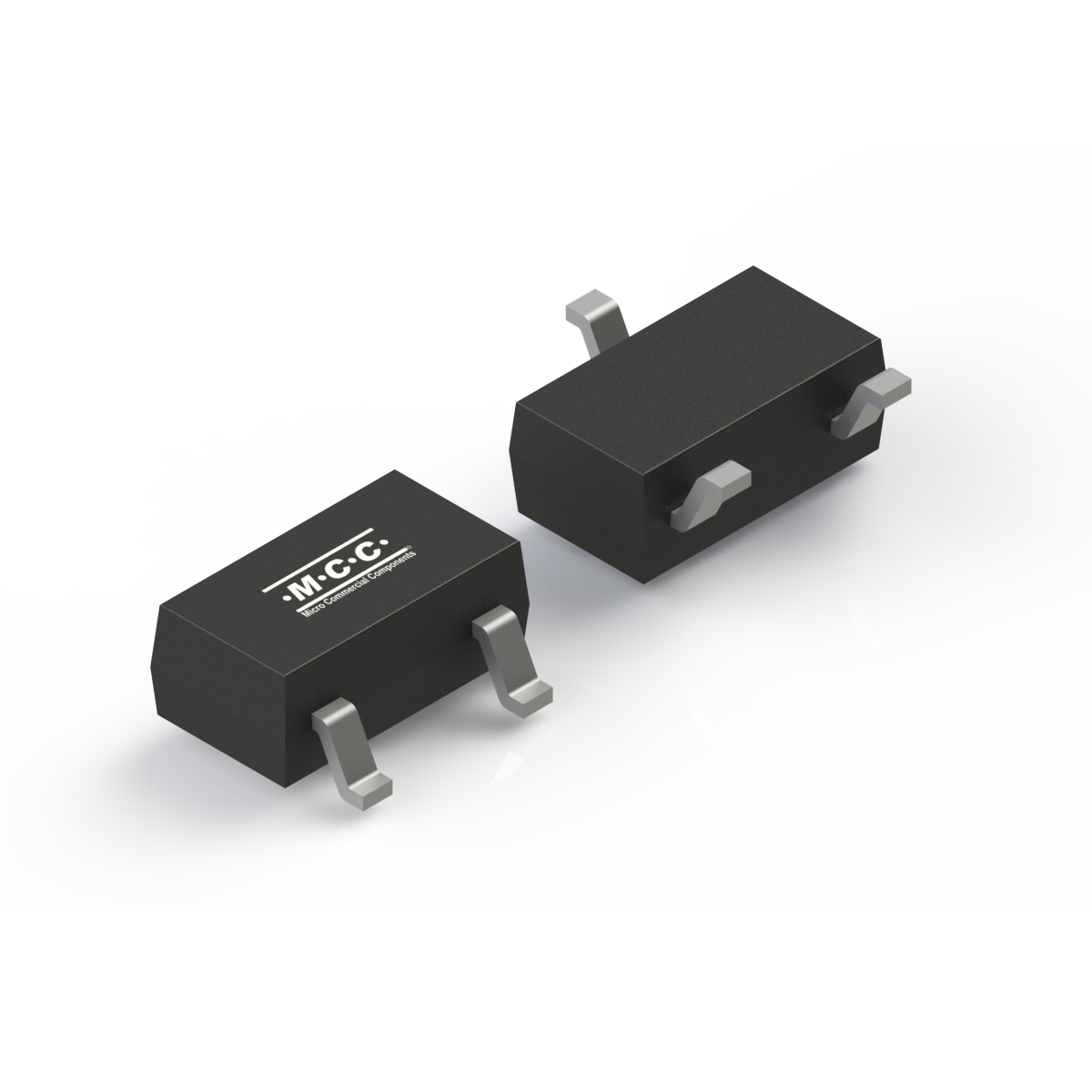

SL3401A Package Type Image SOT-23-3L SOT-23-3L 0.0080 R1A Tape&Reel;

Reliability & Chemical Content link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free
