Small Signal MOSFETS | Status : Active

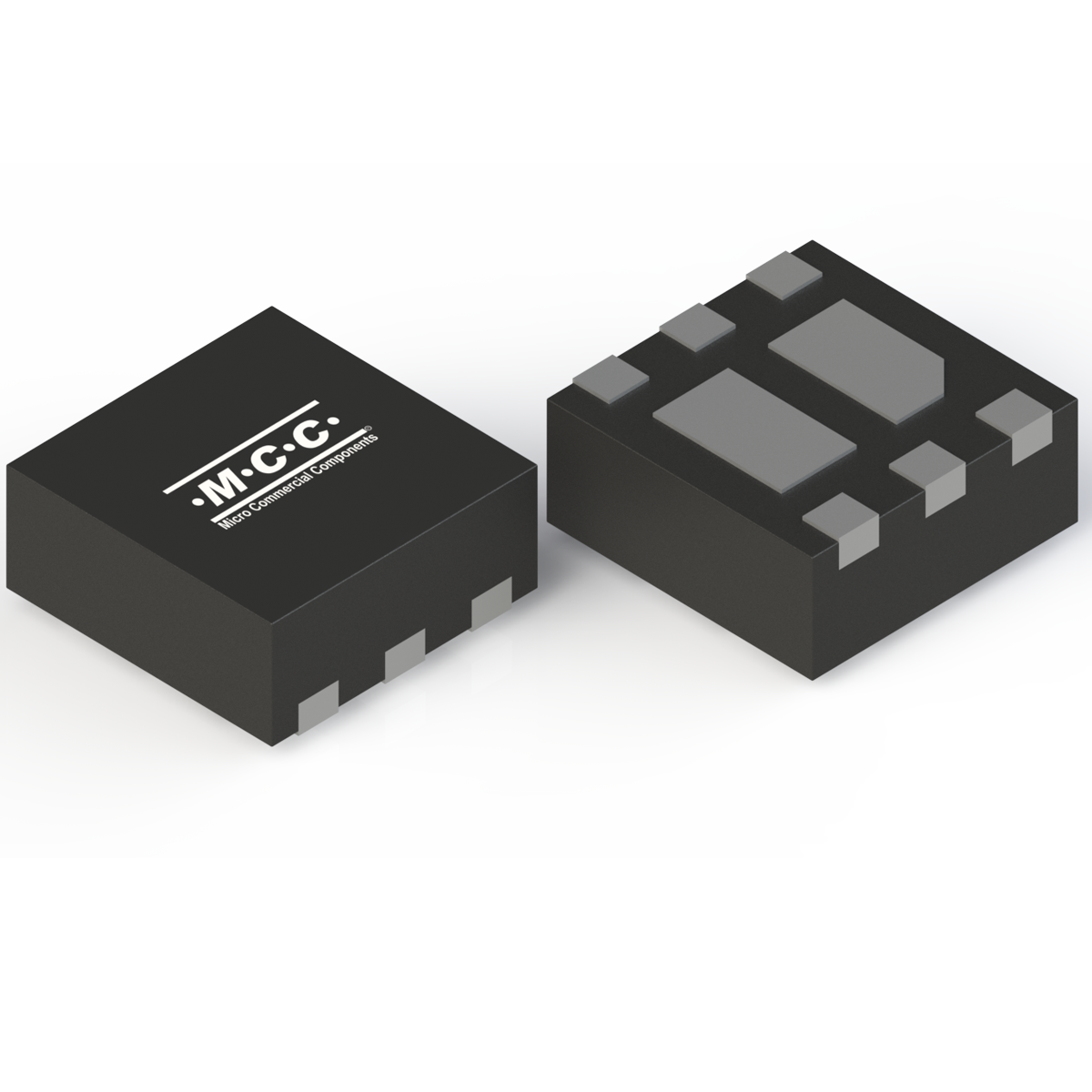

MCM2301

  • Package Type:DFN2020-6L
  • Packing Info:Tape&Reel:3Kpcs/Reel;
  • Category:Small Signal MOSFETS
  • MPN:MCM2301-TP
Check Stock Add To Cart
Datasheet ECAD Model Spice Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 RDS(ON)
Max
@VGS=10V
(Ω)		 RDS(ON)
Max
@VGS=4.5V
(Ω)		 RDS(ON)
Max
@VGS=2.5V
(Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCM2301 Dual P+P -20 ±10 -3.8 0.055 0.075 -0.4 -0.9 No 150 492 83 1.4 5.8 1.2
Part Number MCM2301 Number of Functions Dual Channel P+P Drain-Source
Voltage
VDS (V)  -20 		Gate-Source
Voltage
VGS (V)  ±10 		Drain
Current
ID (A)  -3.8 		RDS(ON)
Max
@VGS=10V
(Ω)   		RDS(ON)
Max
@VGS=4.5V
(Ω)  0.055 		RDS(ON)
Max
@VGS=2.5V
(Ω)  0.075 		Gate
Threshold
Voltage
VGS(th) Min
(V)  -0.4 		Gate
Threshold
Voltage
VGS(th) Max
(V)  -0.9 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCM2301 DFN2020-6L DFN2020-6L 0.0096 2301 Tape&Reel:3Kpcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free MTBF FIT
Halogen Free 19984.92 5.7

ECN/PCN

ECN/PCN No# Title PDF Issued Date
090425-2 To widen the minimum and maximum spec of VGS(th) PDF 09/04/2025
