Power MOSFETS | Status : Preferred

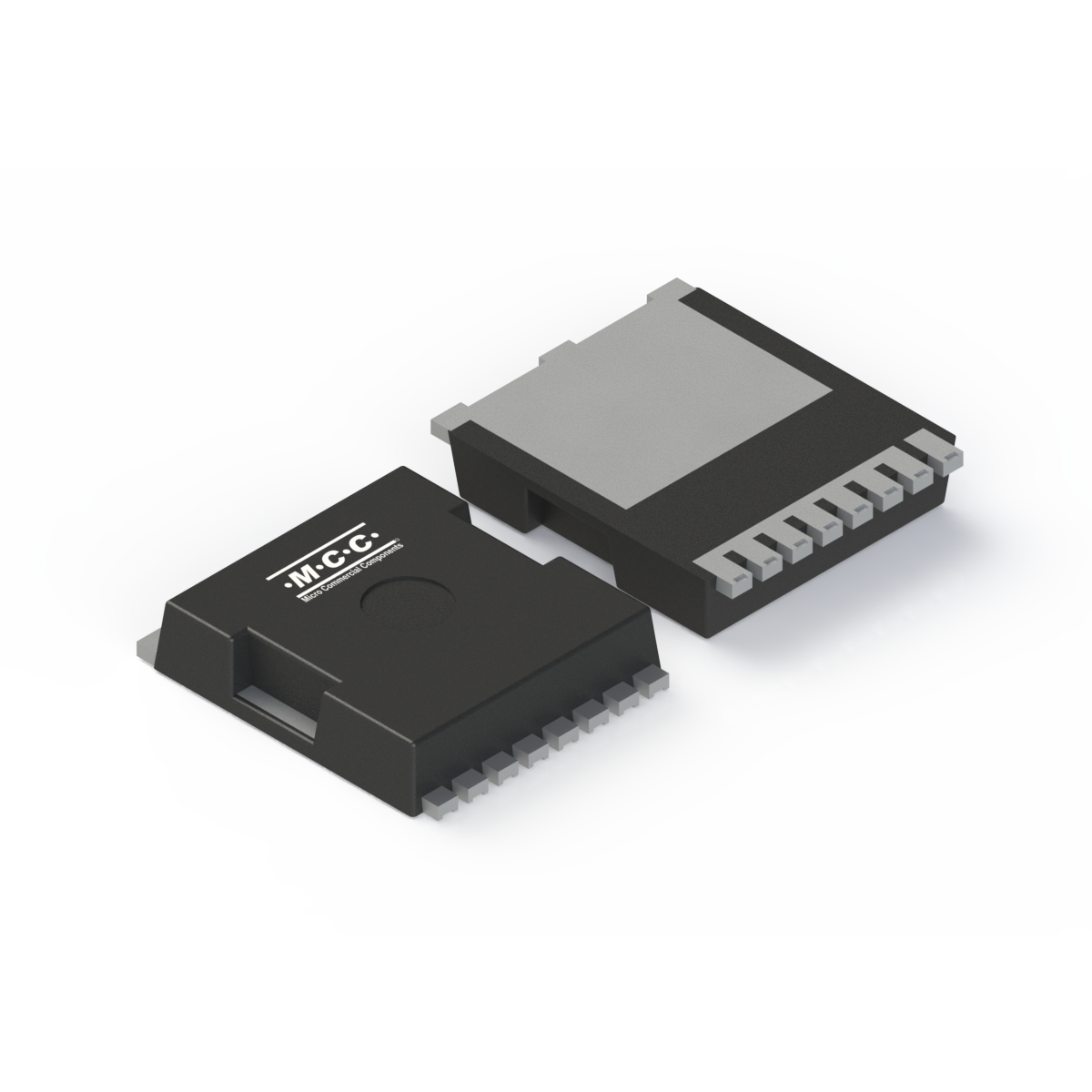

MCTLD58N04Y

  • Package Type:TOLL-8L
  • Packing Info:Tape&Reel:2Kpcs/Reel
  • Category:Power MOSFETS
  • MPN:MCTLD58N04Y-TP
Check Stock Add To Cart
Datasheet ECAD Model Spice Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)		 Gate
Threshold
Voltage
VGS(th)
Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCTLD58N04Y Single N 40 ±20 639 0.00058 2 4 No 175 2964 2556 19547 6480 429 255.7 47.4
Part Number MCTLD58N04Y Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  40 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  639 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)  0.00058 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)   		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)   		Gate
Threshold
Voltage
VGS(th)
Min
(V)  2 		Gate
Threshold
Voltage
VGS(th) Max
(V)  4 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  175 		Single Pulsed
Avalanche
Energy
EAS(mJ)  2964 		Pulsed Drain
Current
IDM(A)  2556

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCTLD58N04Y TOLL-8L TOLL-8L 0.7920 MCTLD58N04Y Tape&Reel:2Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 0.00 0.0
