Power MOSFETS | Status : Preferred

MCTL1D0N08Y

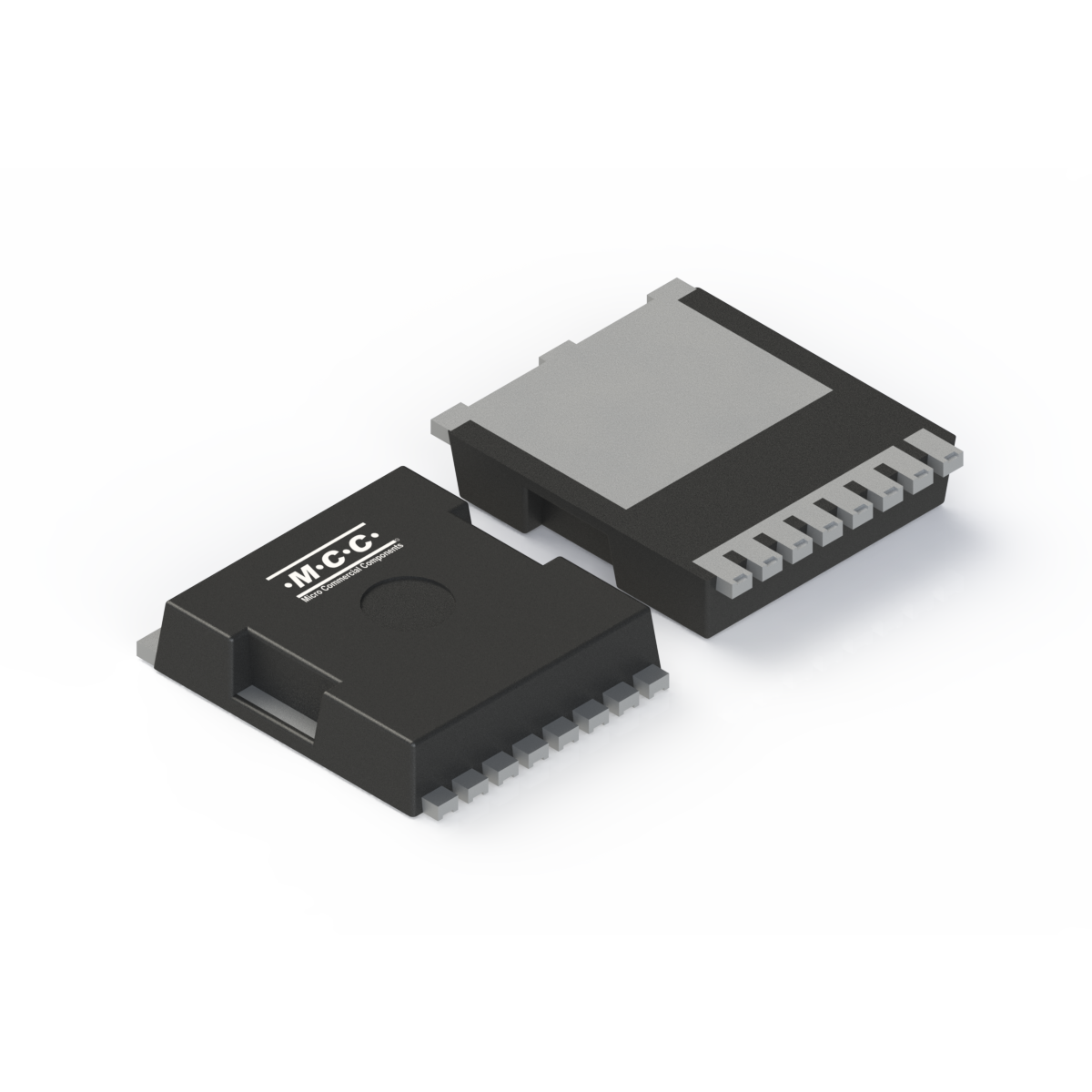

  • Package Type:TOLL-8L
  • Packing Info:Tape&Reel:2Kpcs/Reel;
  • Category:Power MOSFETS
  • MPN:MCTL1D0N08Y-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)		 Gate
Threshold
Voltage
VGS(th)
Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCTL1D0N08Y Single N 80 ±20 320 0.001 2 4 No 175 2401 1280 13030 3930 416 236.7 79.4
Part Number MCTL1D0N08Y Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  80 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  320 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)  0.001 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)   		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)   		Gate
Threshold
Voltage
VGS(th)
Min
(V)  2 		Gate
Threshold
Voltage
VGS(th) Max
(V)  4 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  175 		Single Pulsed
Avalanche
Energy
EAS(mJ)  2401 		Pulsed Drain
Current
IDM(A)  1280

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCTL1D0N08Y TOLL-8L TOLL-8L 0.7920 MCTL1D0N08Y Tape&Reel:2Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 0.00 0.0
