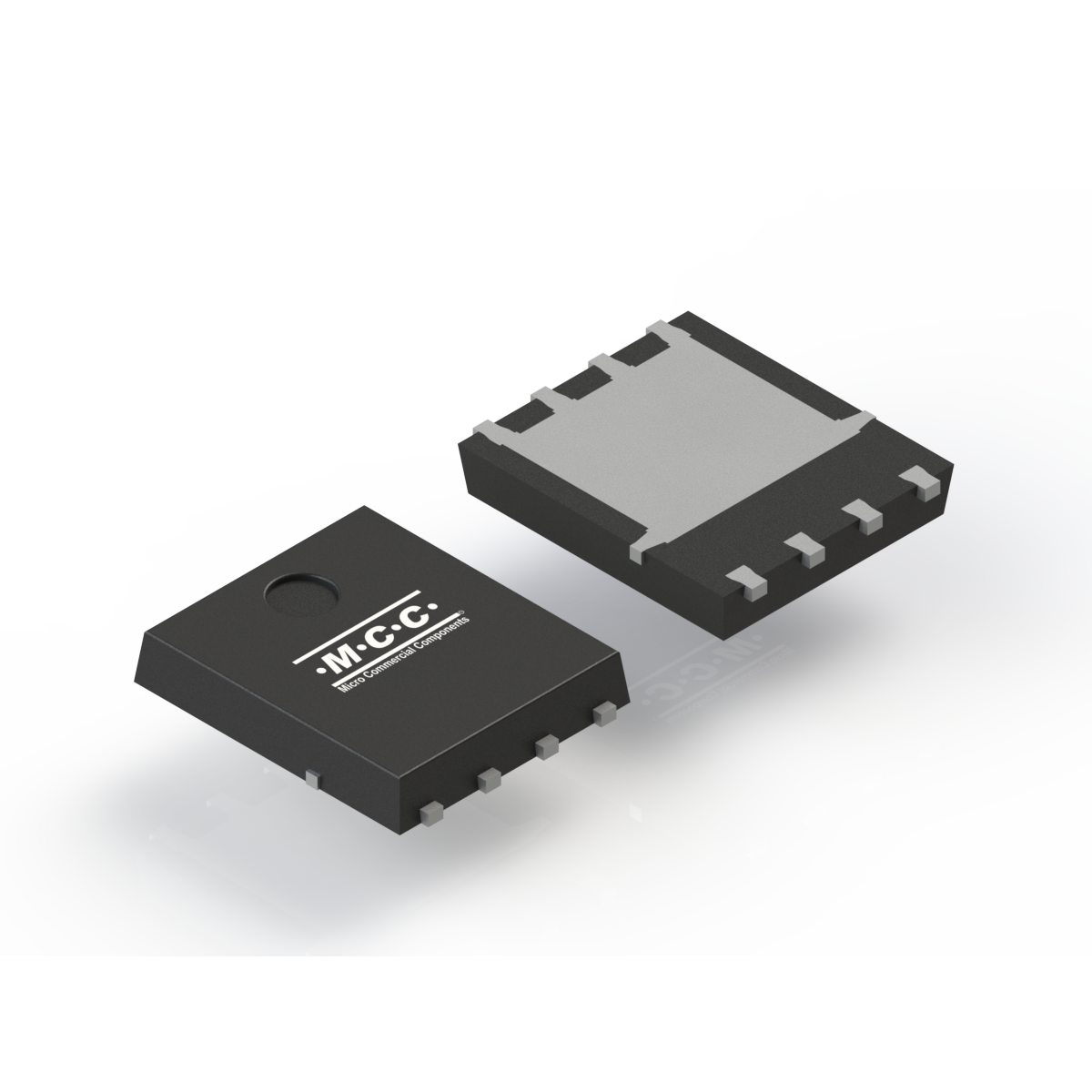

MCACL1D7N04YH
- Package Type:DFN5060-C
- Packing Info:Tape&Reel:5Kpcs/Reel
- Category:Power MOSFETS
- MPN:MCACL1D7N04YH-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCACL1D7N04YH | Single | N | 40 | ±20 | 180 | 0.0017 | 2 | 4 | No | 175 | 506 | 720 | 4317 | 1510 | 125 | 57 | 10 |
| Part Number MCACL1D7N04YH | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 40 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) 180 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.0017 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 2 |
Gate Threshold Voltage VGS(th) Max (V) 4 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 175 |
Single Pulsed Avalanche Energy EAS(mJ) 506 |
Pulsed Drain Current IDM(A) 720 |
Packing Information
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| 1 | 0.00 | 0.0 |
