Power MOSFETS | Status :
Preferred
Automotive

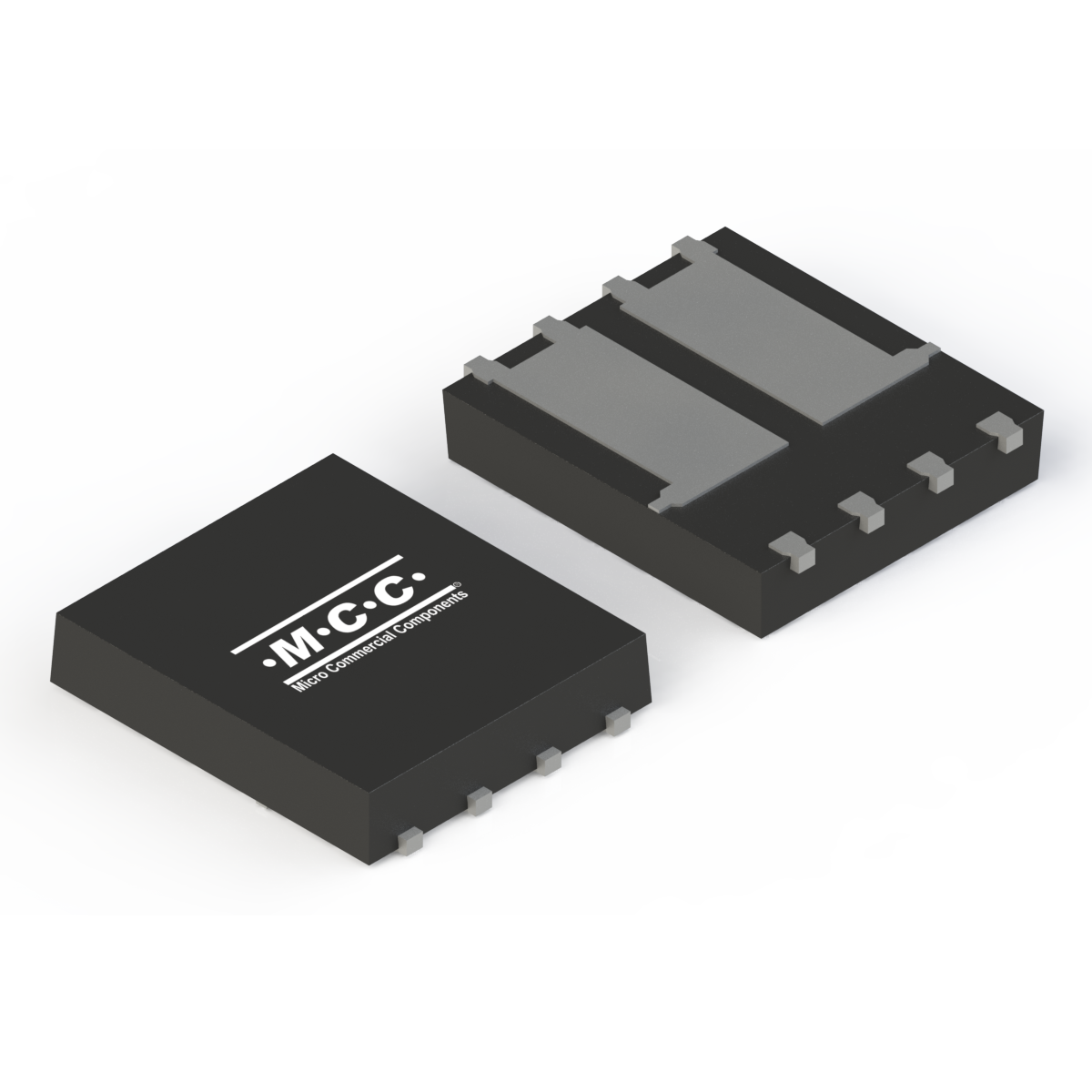

MCACD033N06Q
- Package Type:PDFN5060-8D
- Packing Info:Tape&Reel:5kpcs/Reel;
- Category:Power MOSFETS
- MPN:MCACD033N06Q-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCACD033N06Q | Dual | N+N | 60 | ±20 | 22 | 0.033 | 0.055 | 1.5 | 2.5 | No | 175 | 30 | 88 | 940 | 100 | 62 | 17.2 | 4.5 |
| Part Number MCACD033N06Q | Number of Functions Dual | Channel N+N |
Drain-Source Voltage VDS (V) 60 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) 22 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.033 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) 0.055 |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 1.5 |
Gate Threshold Voltage VGS(th) Max (V) 2.5 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 175 |
Single Pulsed Avalanche Energy EAS(mJ) 30 |
Pulsed Drain Current IDM(A) 88 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| MCACD033N06Q | PDFN5060-8D | PDFN5060-8D | 0.1027 | D033N06Q | Tape&Reel:5kpcs/Reel; |
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| 1 | 0.00 | 0.0 |
