Automotive

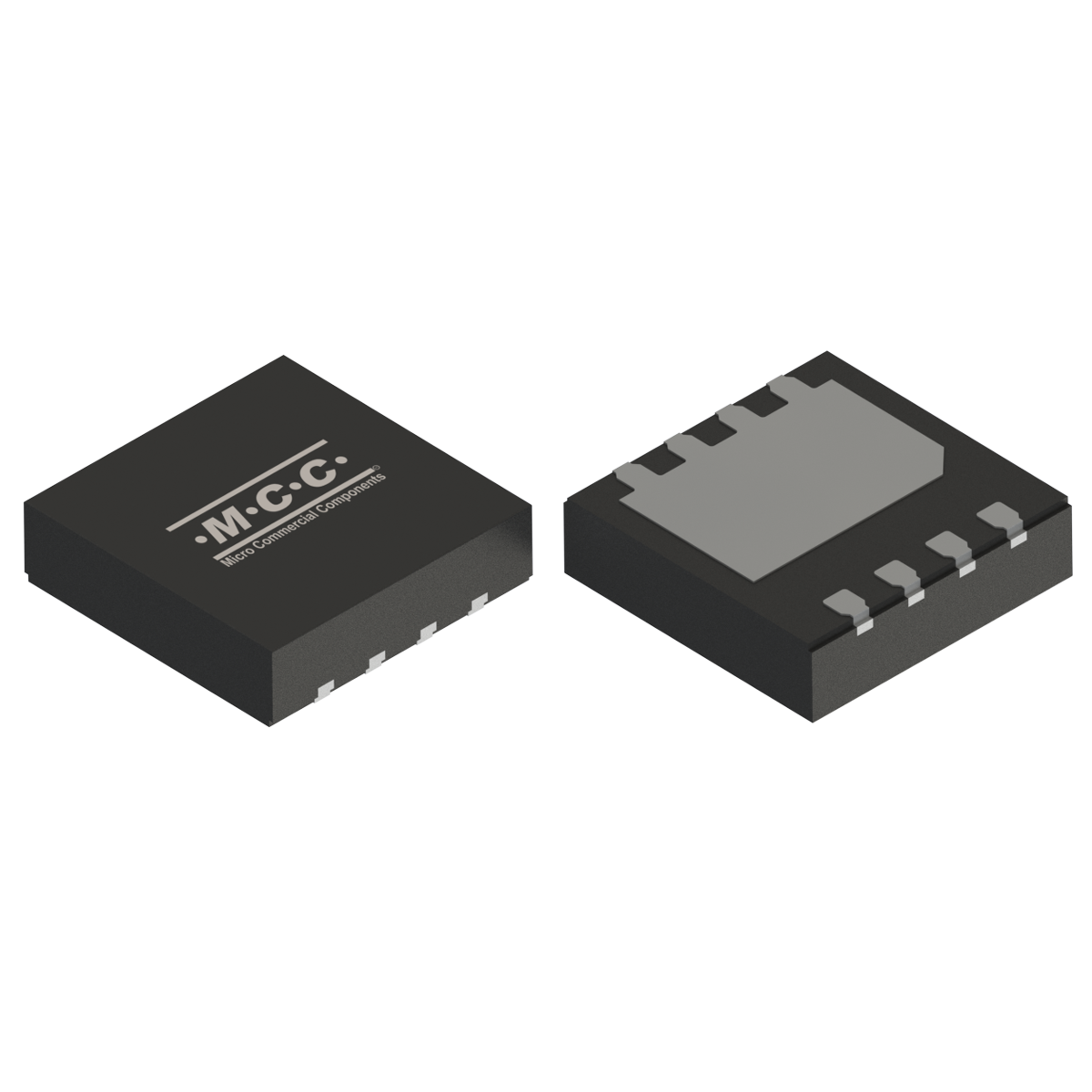

MCGWF60N04YHE3
- Package Type:DFN3333-8(SWF)
- Packing Info:Tape&Reel:5Kpcs/Reel;
- Category:Power MOSFETS
- MPN:MCGWF60N04YHE3-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCGWF60N04YHE3 | Single | N | 40 | ±20 | 60 | 0.0039 | 2 | 4 | No | 175 | 156 | 240 | 2144 | 1340 | 93 | 38 | 12 |
| Part Number MCGWF60N04YHE3 | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 40 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) 60 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.0039 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 2 |
Gate Threshold Voltage VGS(th) Max (V) 4 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 175 |
Single Pulsed Avalanche Energy EAS(mJ) 156 |
Pulsed Drain Current IDM(A) 240 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| MCGWF60N04YHE3 | DFN3333-8(SWF) | DFN3333-8(SWF) | 0.0000 | F60N04 | Tape&Reel:5Kpcs/Reel; |
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| 1 | 0.00 | 0.0 |
