Power MOSFETS | Status : Preferred

MCACLD85N04YL

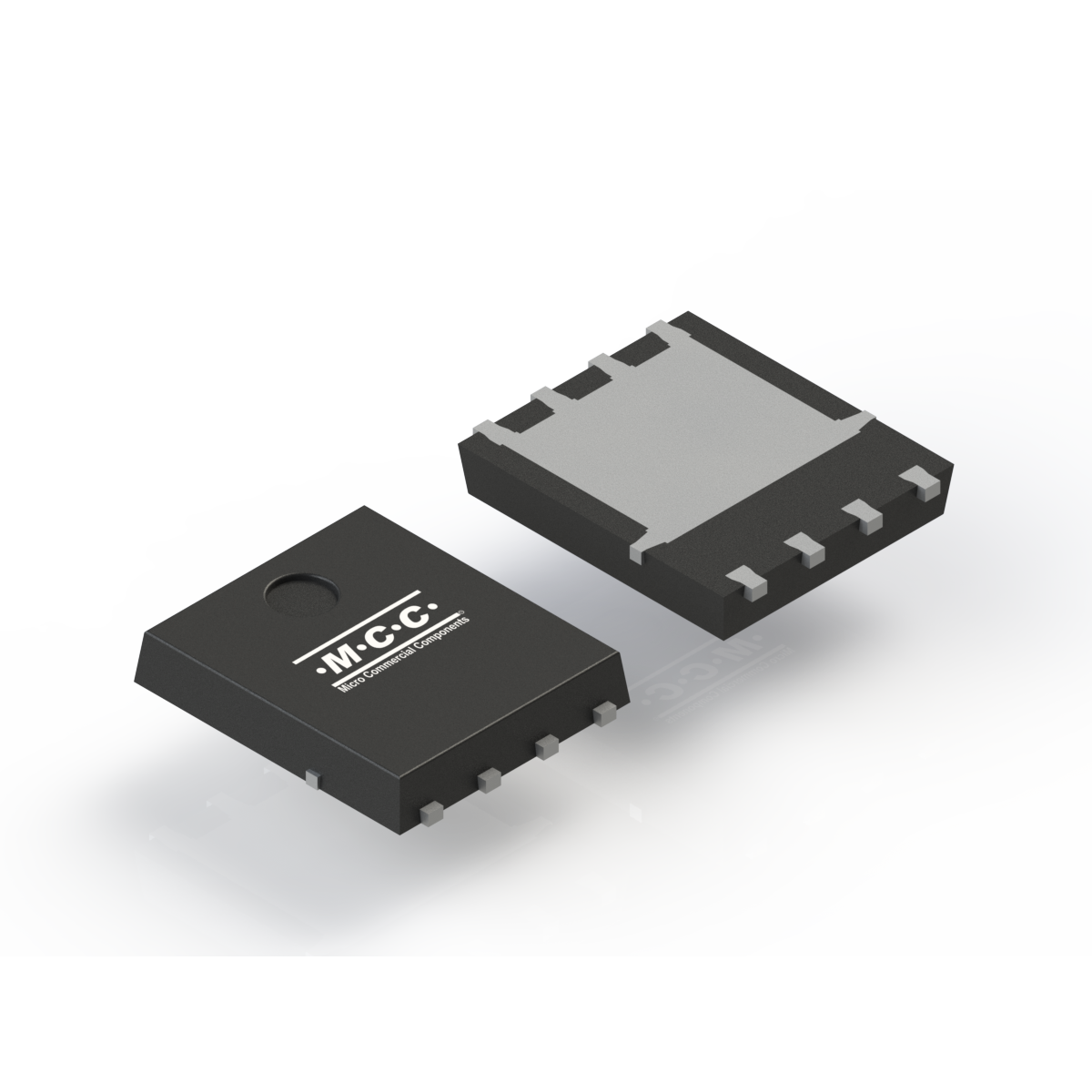

  • Package Type:DFN5060-C
  • Packing Info:Tape&Reel:5Kpcs/Reel;
  • Category:Power MOSFETS
  • MPN:MCACLD85N04YL-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)		 Gate
Threshold
Voltage
VGS(th)
Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCACLD85N04YL Single N 40 ±20 300 0.00085 0.0014 1 2.5 No 175 1250 1200 6125 3250 136 101 21
Part Number MCACLD85N04YL Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  40 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  300 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)  0.00085 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)  0.0014 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)   		Gate
Threshold
Voltage
VGS(th)
Min
(V)  1 		Gate
Threshold
Voltage
VGS(th) Max
(V)  2.5 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  175 		Single Pulsed
Avalanche
Energy
EAS(mJ)  1250 		Pulsed Drain
Current
IDM(A)  1200

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCACLD85N04YL DFN5060-C DFN5060-C 0.0916 LD85N04YL Tape&Reel:5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL MTBF FIT
1 0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
082625-2 Correct DFN5060-C POD PDF 08/26/2025
