Power MOSFETS | Status : Active

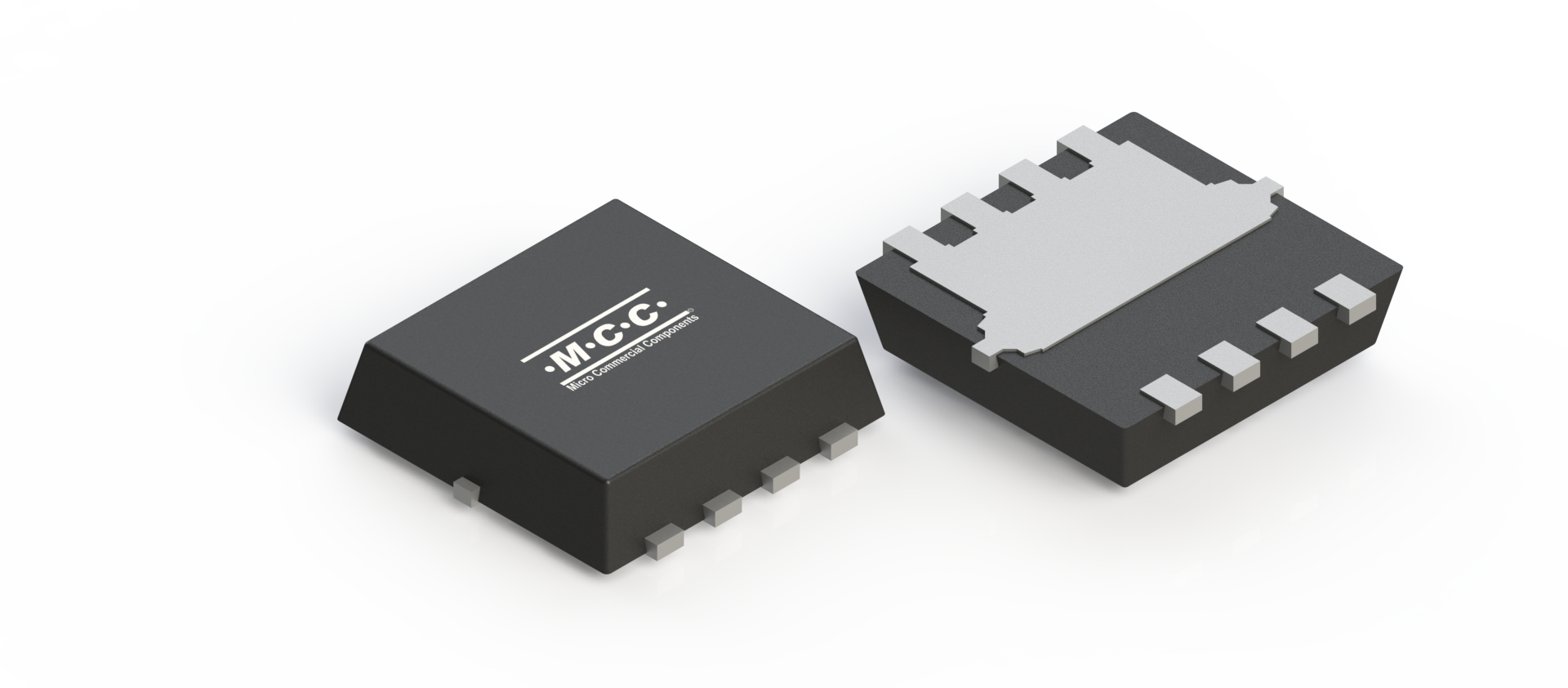

MCAC3D4N10YH

  • Package Type:DFN5060
  • Packing Info:Tape&Reel:5Kpcs/Reel;
  • Category:Power MOSFETS
  • MPN:MCAC3D4N10YH-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)		 Gate
Threshold
Voltage
VGS(th)
Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCAC3D4N10YH Single N 100 ±20 196 0.0034 2 4 No 175 578 784 4738 1718 263 67 14
Part Number MCAC3D4N10YH Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  100 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  196 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω)  0.0034 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)   		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)   		Gate
Threshold
Voltage
VGS(th)
Min
(V)  2 		Gate
Threshold
Voltage
VGS(th) Max
(V)  4 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  175 		Single Pulsed
Avalanche
Energy
EAS(mJ)  578 		Pulsed Drain
Current
IDM(A)  784

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCAC3D4N10YH DFN5060 DFN5060 0.0875 3D4N10YH Tape&Reel:5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
091225-1 Additional new A/T 2nd source PDF 09/12/2025
