IGBT Modules | Status : Active

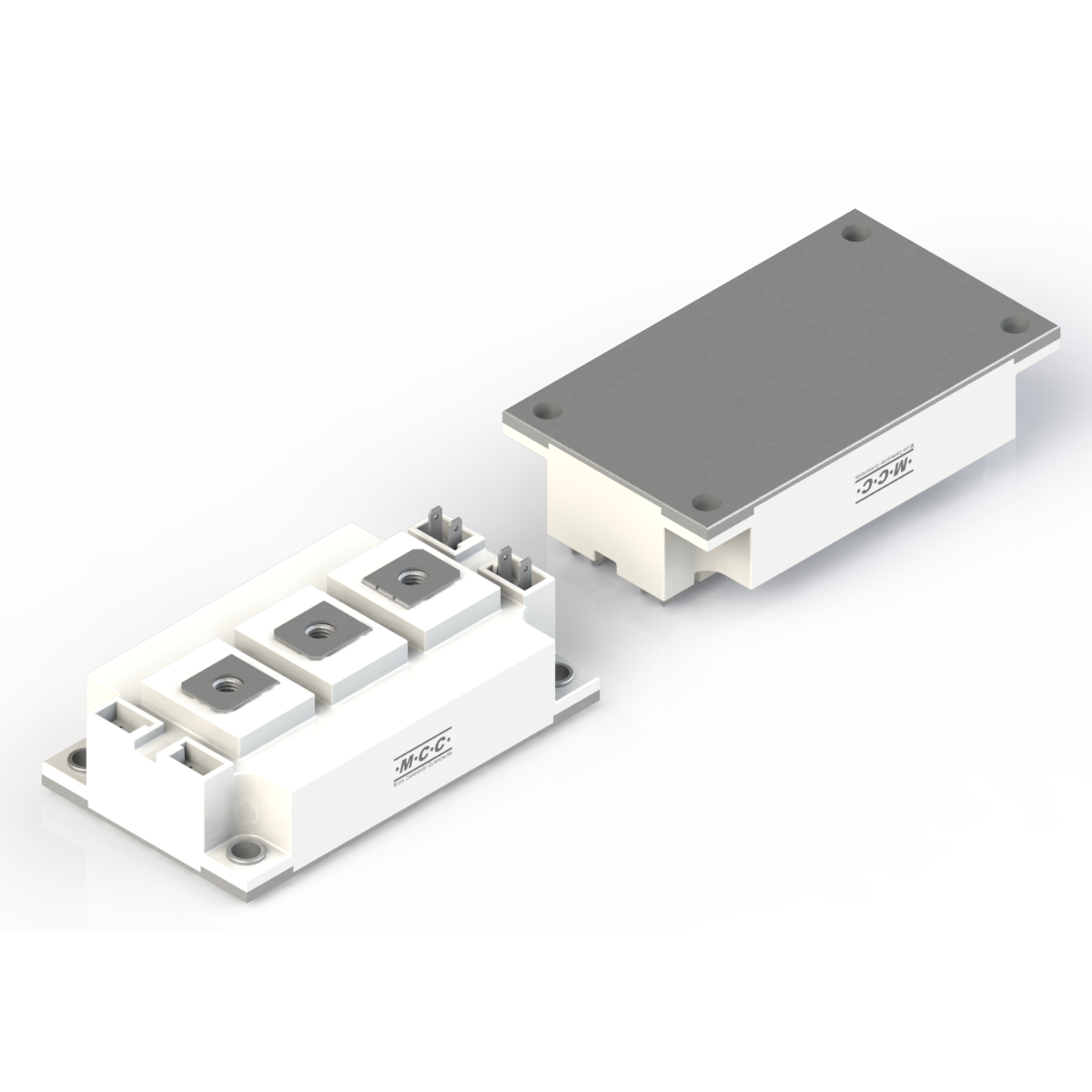

MIF400R065C2TL

  • Package Type:C2
  • Packing Info: Bulk: 6pcs/Box:30pcs/Ctn;
  • Category:IGBT Modules
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Voltage Class max [V] IC @ 100°
max [A]
VCE(sat) [V] Eon [mJ] Eoff Hard
Switching [mJ]
IF max [A]
MIF400R065C2TL Dual 650 400 1.70 6.1 8.5
Voltage Class max [V] IC @ 100°
max [A]
VCE(sat) [V] Eon [mJ] Eoff Hard
Switching [mJ]
IF max [A]
Part Number MIF400R065C2TL Number of Functions Dual Voltage Class max [V]  650 IC @ 100° max [A]  400 VCE(sat) [V]  1.70 Eon [mJ]  6.1 Eoff Hard Switching [mJ]  8.5 IF max [A]

Package

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MIF400R065C2TL Package Type Image C2 C2 315.0000 MIF400R065C2TL

Reliability & Chemical Content link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
