IGBT Discrete | Status : Preferred
Automotive

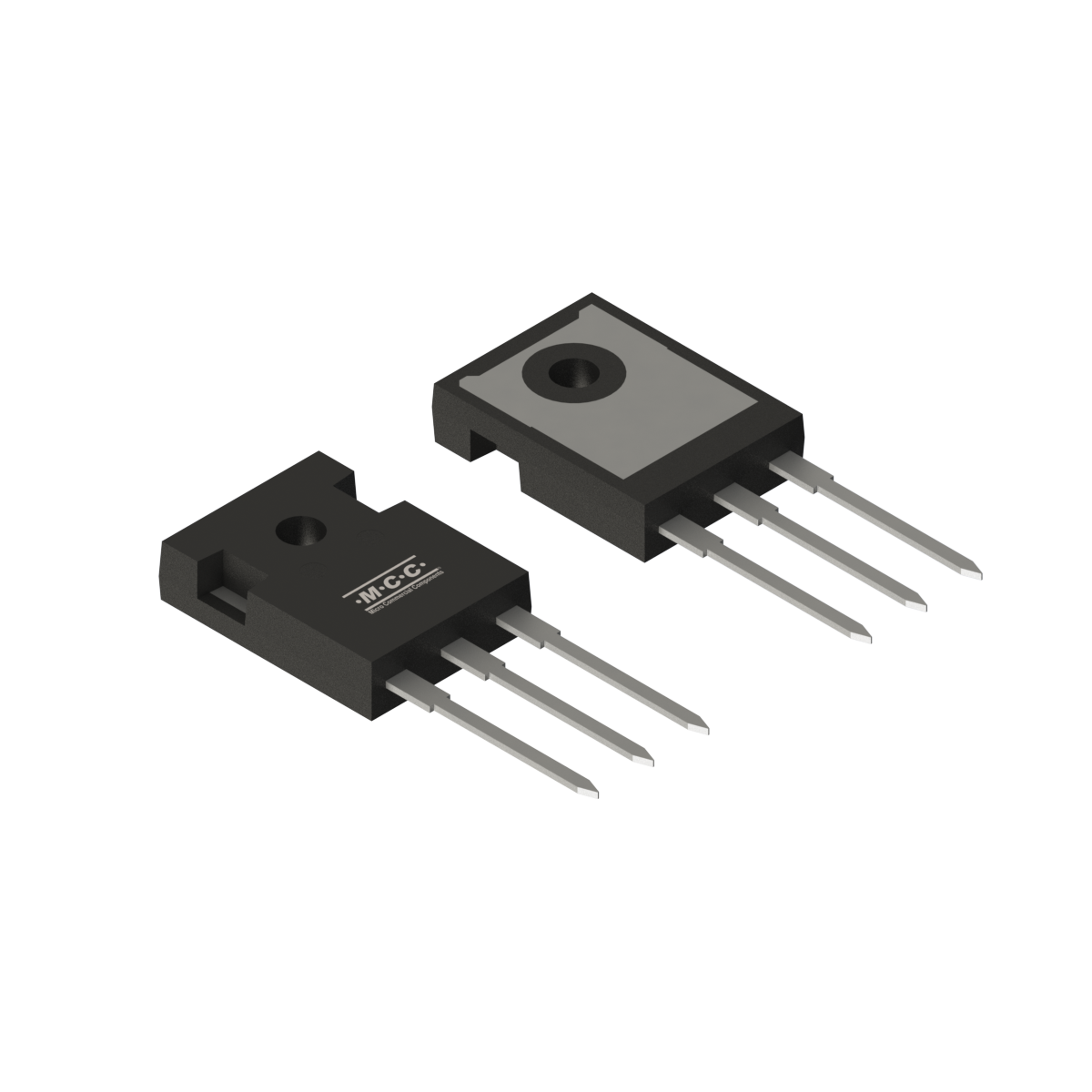

MIW80N120NT1YHE3

  • Package Type:TO-247AB
  • Packing Info:Tube:30pcs/Tube,1.8K/Ctn;
  • Category:IGBT Discrete
  • MPN:MIW80N120NT1YHE3-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Collector‐Emitter
Voltage
VCE (V)		 DC Collector Currentt
@ Tc=100°C
IC (A)		 Collector‐Emitter
Saturation Voltage
VCE(sat) (V)		 Turn-On
Energy@TJ=25°C
Eon (mJ)		 Turn‐Off
Energyy@TJ=25°C
Eoff (mJ)		 Junction
Temperature
Tj [max] (°C)		 Power
Rating
PD(W)
MIW80N120NT1YHE3 Single 1200 80 2.3 7.5 4.6 150 521
Part Number MIW80N120NT1YHE3 Number of Functions Single Collector‐Emitter
Voltage
VCE (V)  1200 		DC Collector Currentt
@ Tc=100°C
IC (A)  80 		Collector‐Emitter
Saturation Voltage
VCE(sat) (V)  2.3 		Turn-On
Energy@TJ=25°C
Eon (mJ)  7.5 		Turn‐Off
Energyy@TJ=25°C
Eoff (mJ)  4.6 		Junction
Temperature
Tj [max] (°C)  150 		Power
Rating
PD(W)  521

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MIW80N120NT1YHE3 TO-247AB TO-247AB 5.6000 MIW80N120NT1Y

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MSL MTBF FIT
N/A 0.00 0.0
