IGBT Discrete | Status :
Active

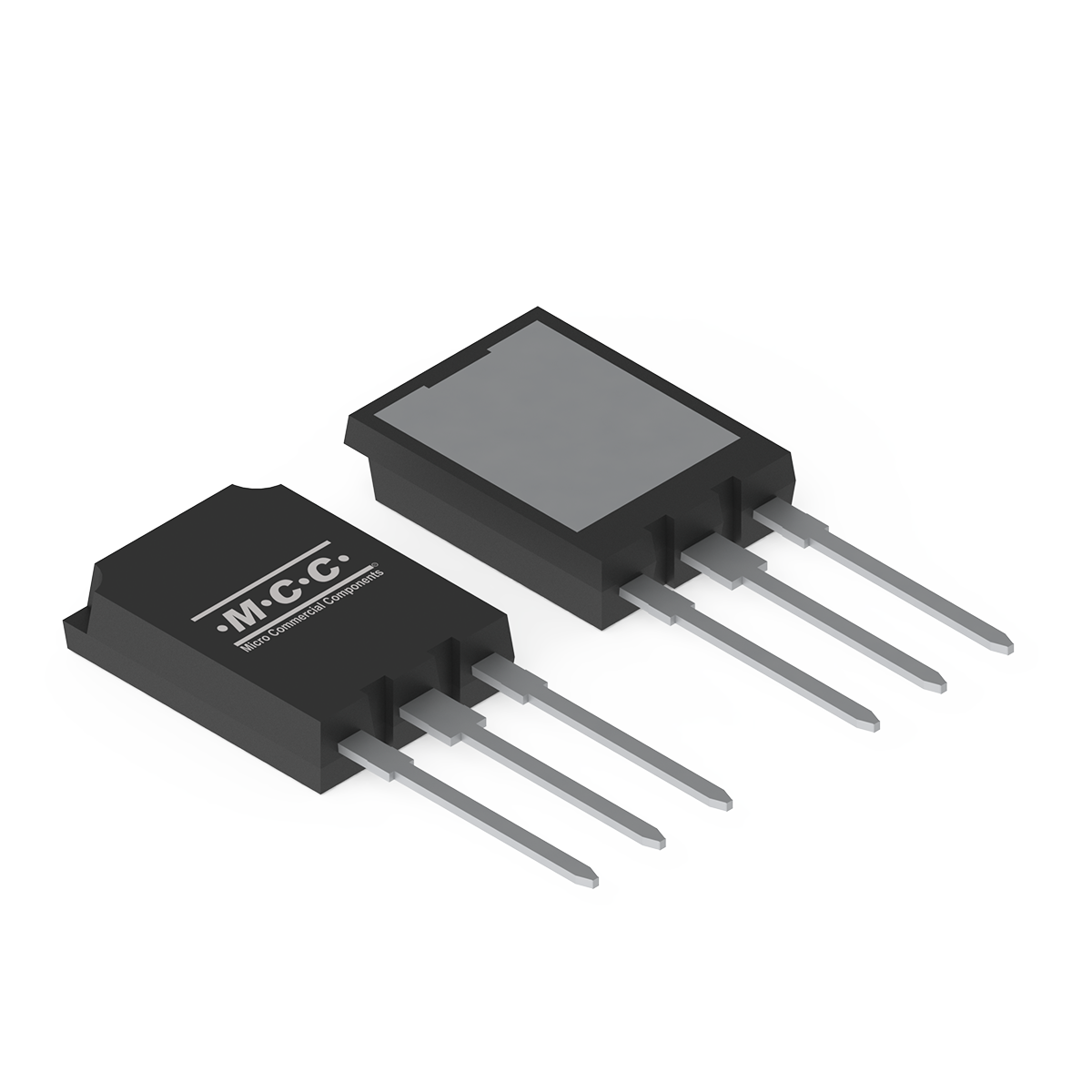

MIWP75N120AT1Y
- Package Type:TO-247Plus
- Packing Info:Tube:30pcs/Tube,1.8K/Ctn;
- Category:IGBT Discrete
- MPN:MIWP75N120AT1Y-BP
Product Detail
| Part Number | Number of Functions | Collector‐Emitter Voltage VCE (V) |
DC Collector Currentt @ Tc=100°C IC (A) |
Collector‐Emitter Saturation Voltage VCE(sat) (V) |
Turn-On Energy@TJ=25°C Eon (mJ) |
Turn‐Off Energyy@TJ=25°C Eoff (mJ) |
Junction Temperature Tj [max] (°C) |
Power Rating PD(W) |
|---|---|---|---|---|---|---|---|---|
| MIWP75N120AT1Y | Single | 1200 | 75 | 1.9 | 8.5 | 5.1 | 175 | 645 |
| Part Number MIWP75N120AT1Y | Number of Functions Single |
Collector‐Emitter Voltage VCE (V) 1200 |
DC Collector Currentt @ Tc=100°C IC (A) 75 |
Collector‐Emitter Saturation Voltage VCE(sat) (V) 1.9 |
Turn-On Energy@TJ=25°C Eon (mJ) 8.5 |
Turn‐Off Energyy@TJ=25°C Eoff (mJ) 5.1 |
Junction Temperature Tj [max] (°C) 175 |
Power Rating PD(W) 645 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code |
|---|---|---|---|---|
| MIWP75N120AT1Y | TO-247Plus | TO-247Plus | 0.0000 | MIWP75N120AT1Y |
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| N/A | 0.00 | 0.0 |
