Zener Diodes | Status : Active

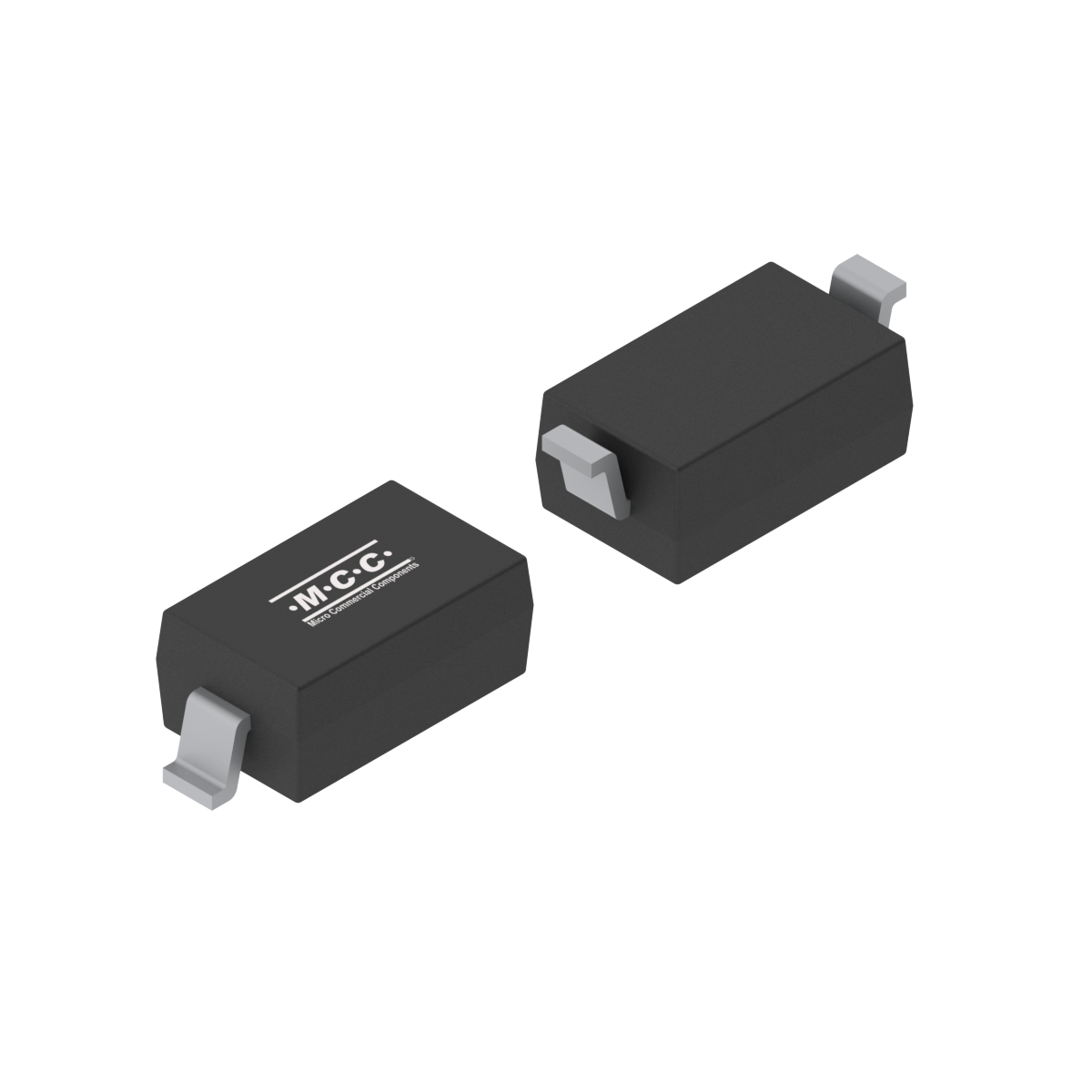

BZT52C22

  • Package Type:SOD-123
  • Packing Info:Tape : 3K/Reel, 120K/Ctn;
  • Category:Zener Diodes
  • MPN:BZT52C22-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
BZT52C22 Single 0.5 22 5 0.0001 15.4 55 250 1 150
Part Number BZT52C22 Number of Functions Single PD(W)  0.5 VZ[Nom](V)  22 IZT(mA)  5 IR (mA) [max]
@VR  0.0001 		VR(V)  15.4 ZZT(Ω)
@IZT  55 		ZZK(Ω)
@IZT  250 		IZK(mA)  1 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BZT52C22 SOD-123 SOD-123 0.0090 WN Tape : 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
