Zener Diodes | Status : Active

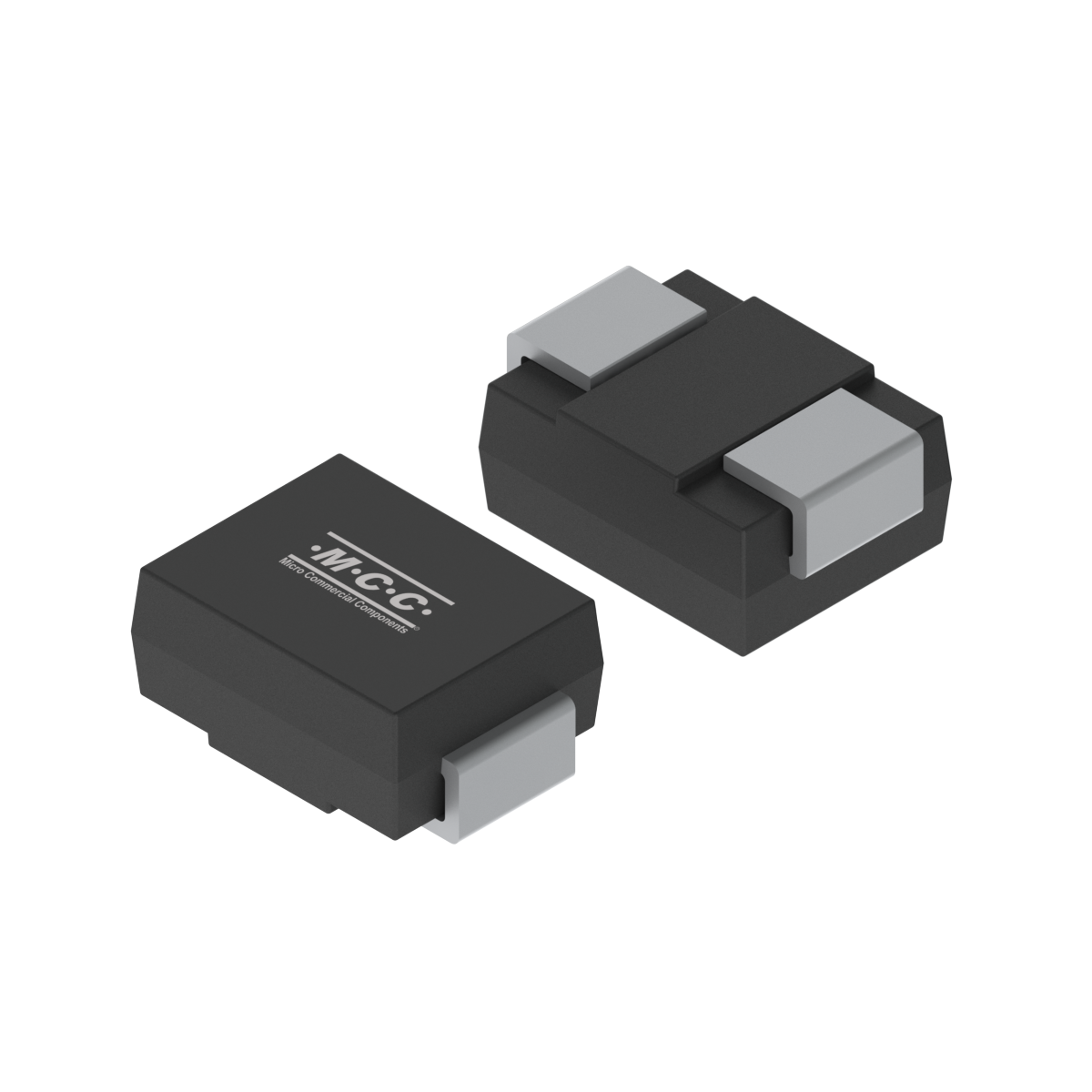

3SMBJ5941B

  • Package Type:SMB
  • Packing Info: Tape: 3K/Reel;
  • Category:Zener Diodes
Check Stock Add To Cart
Datasheet ECAD Model Spice Model

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
3SMBJ5941B Single 3 47 8 0.001 35.8 67 1000 0.25 150
Part Number 3SMBJ5941B Number of Functions Single PD(W)  3 VZ[Nom](V)  47 IZT(mA)  8 IR (mA) [max]
@VR  0.001 		VR(V)  35.8 ZZT(Ω)
@IZT  67 		ZZK(Ω)
@IZT  1000 		IZK(mA)  0.25 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
3SMBJ5941B SMB SMB 0.0990 H41B Tape: 3K/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
042723-2 Add New Qualified Source PDF 04/27/2023
031422-1 Additional Qualified Assembly and Test(A/T) Site. PDF 03/14/2022
010112 MCC Changes to use plastic reel for SMD Power Zener Products PDF 01/01/2012
090111 MCC developed a new silicon wafer fab source for zeners PDF 09/01/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
