Zener Diodes | Status : Active

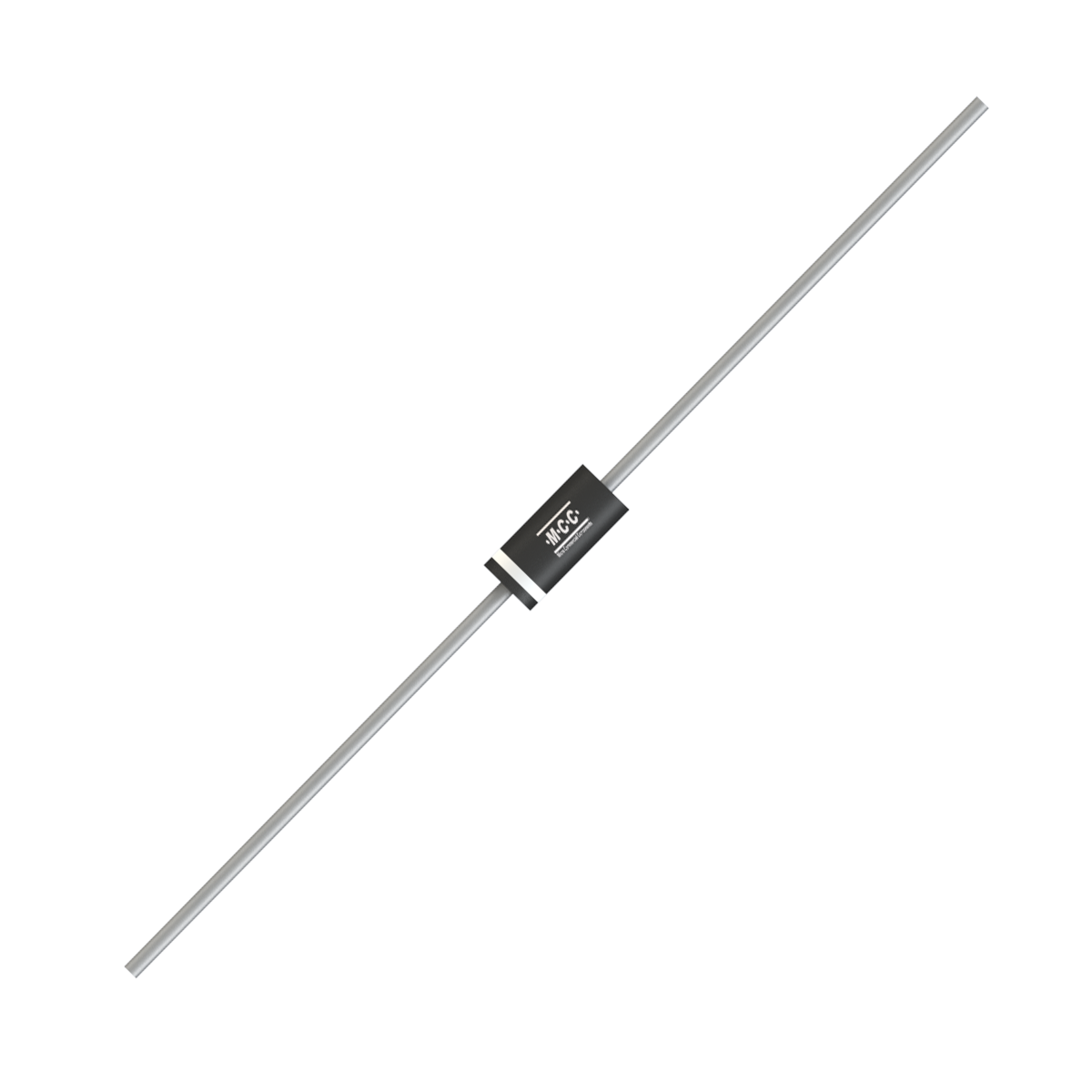

1N5368B

  • Package Type:DO-15
  • Packing Info: Tape : 4K/Reel, 16K/Ctn; Bulk: 500pcs/Box, 25K/Ctn; T/B: 3K/Ammo Box, 30K/Ctn.;
  • Category:Zener Diodes
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions PD VZ IZT IR VR ZZT ZZK IZK
1N5368B Single 5 47 25 0.0005 35.8 25 210 1
PD (W) VZ (V) IZT (mA) IR (mA) VR (V) ZZT (Ω) ZZK (Ω) IZK (mA)
Part Number 1N5368B Number of Functions Single PD  5 VZ  47 IZT  25 IR  0.0005 VR  35.8 ZZT  25 ZZK  210 IZK  1

Package

Part Number Configuration Package Type Packing Specification Component Weight (g) Marking Code Packing Info
1N5368B Configuration Image Package Type Image DO-15 DO-15 0.3880 1N5368B Tape : 4K/Reel, 16K/Ctn;

Reliability & Chemical Content link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report

ECN/PCN

ECN/PCN No# Title PDF Issued Date
102522-1 Additional Qualified (A/T) Assembly/Test Site And New Die Source PDF 10/25/2022
090111 MCC developed a new silicon wafer fab source for zeners PDF 09/01/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
