Super Fast Recovery Rectifiers | Status : Obsoleted

MURB1040CT

Last Time Ship Date:07/18/2025 EOL Notice

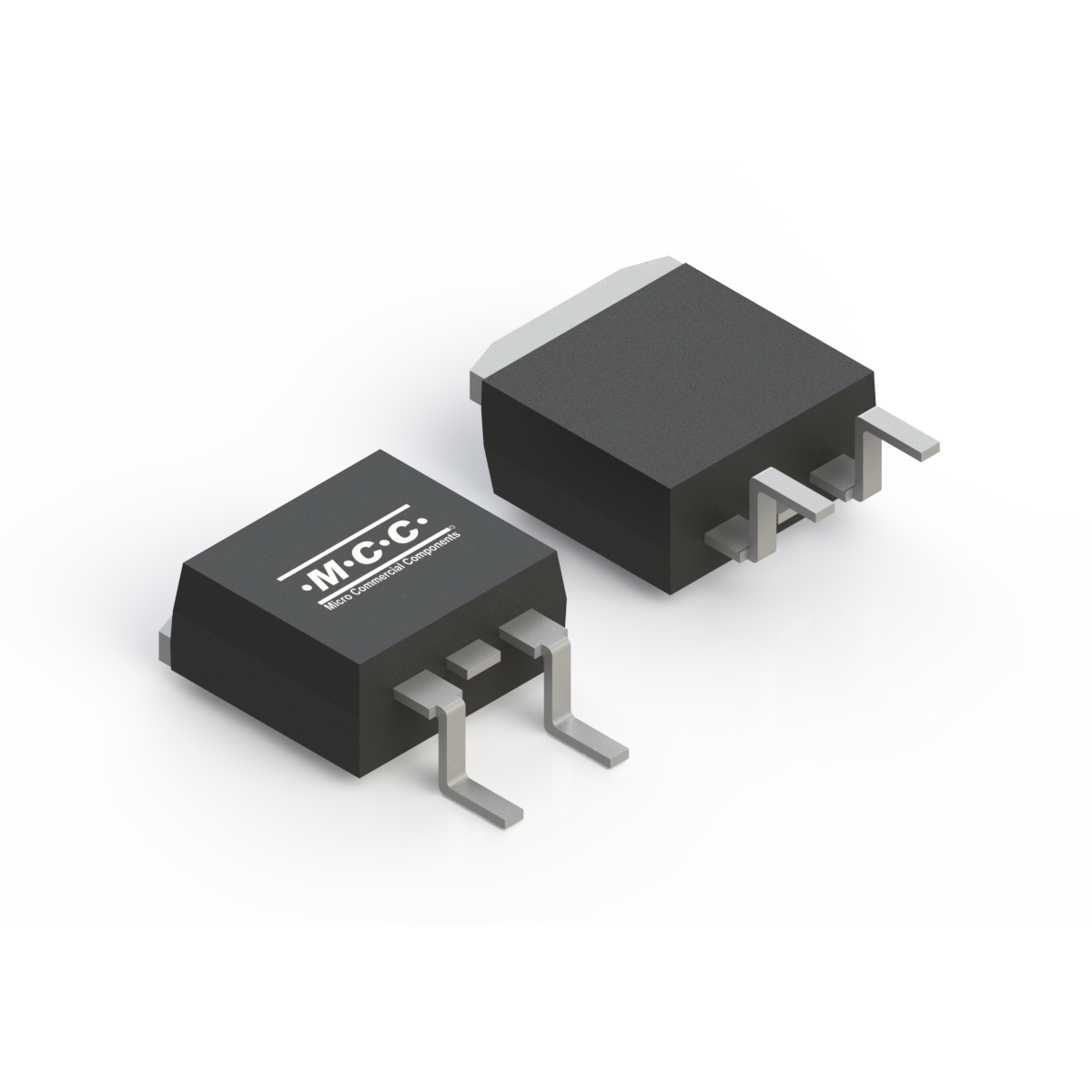

  • Package Type:D2-PAK
  • Packing Info:Tube: 50pcs/Tube, 5K/Ctn,Tape : 800pcs/Reel , 8K/Ctn.; Tube: 50pcs/Tube, 5K/Ctn,Tape : 800pcs/Reel , 8K/Ctn.;
  • Category:Super Fast Recovery Rectifiers
  • MPN:MURB1040CT-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MURB1040CT Dual Common Cathode 10 400 1.3 10 0.05 100 5 400 150
Part Number MURB1040CT Number of Functions Dual Configuration Common Cathode IF(AV)(A)  10 VRWM (V)  400 VF
(V) [max]@IF(A)  1.3 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.05 IFSM (A)  100 IF(A)  5 VR (V)  400 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MURB1040CT D2-PAK D2-PAK 1.4040 MURB1040CT Tube: 50pcs/Tube, 5K/Ctn,Tape : 800pcs/Reel , 8K/Ctn.;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 19984.92 5.7
