Super Fast Recovery Rectifiers | Status : Active

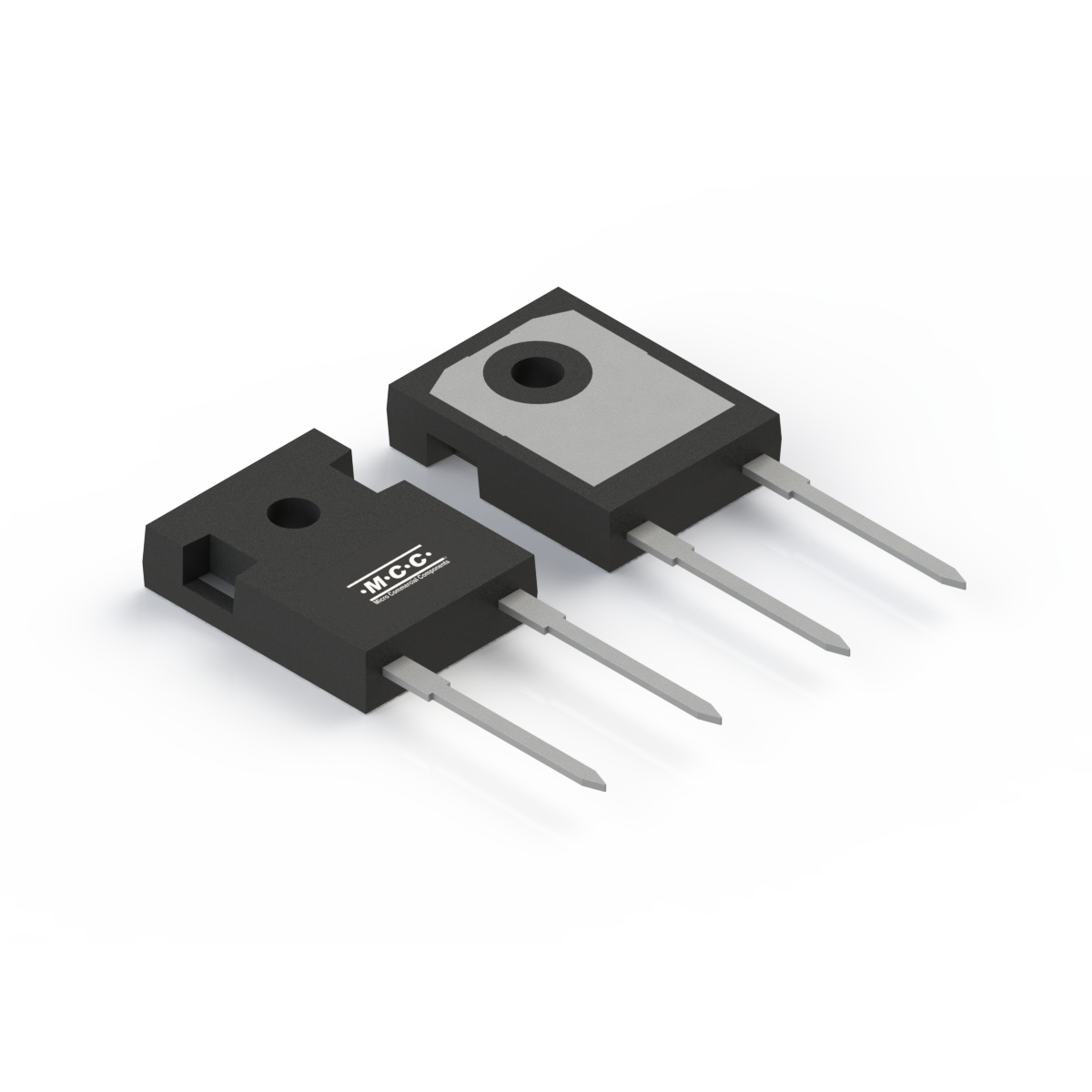

MUR3065BL

  • Package Type:TO-247AD
  • Packing Info:Tube:30pcs/Tube,Bulk:360pcs/Box; Tube:30pcs/Tube,Bulk:360pcs/Box;
  • Category:Super Fast Recovery Rectifiers
  • MPN:MUR3065BL-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MUR3065BL Single 30 650 2.4 10 0.04 300 30 650 175
Part Number MUR3065BL Number of Functions Single IF(AV)(A)  30 VRWM (V)  650 VF
(V) [max]@IF(A)  2.4 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.04 IFSM (A)  300 IF(A)  30 VR (V)  650 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MUR3065BL TO-247AD TO-247AD 4.0500 MUR3065BL

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0
