Super Fast Recovery Rectifiers | Status :
Active

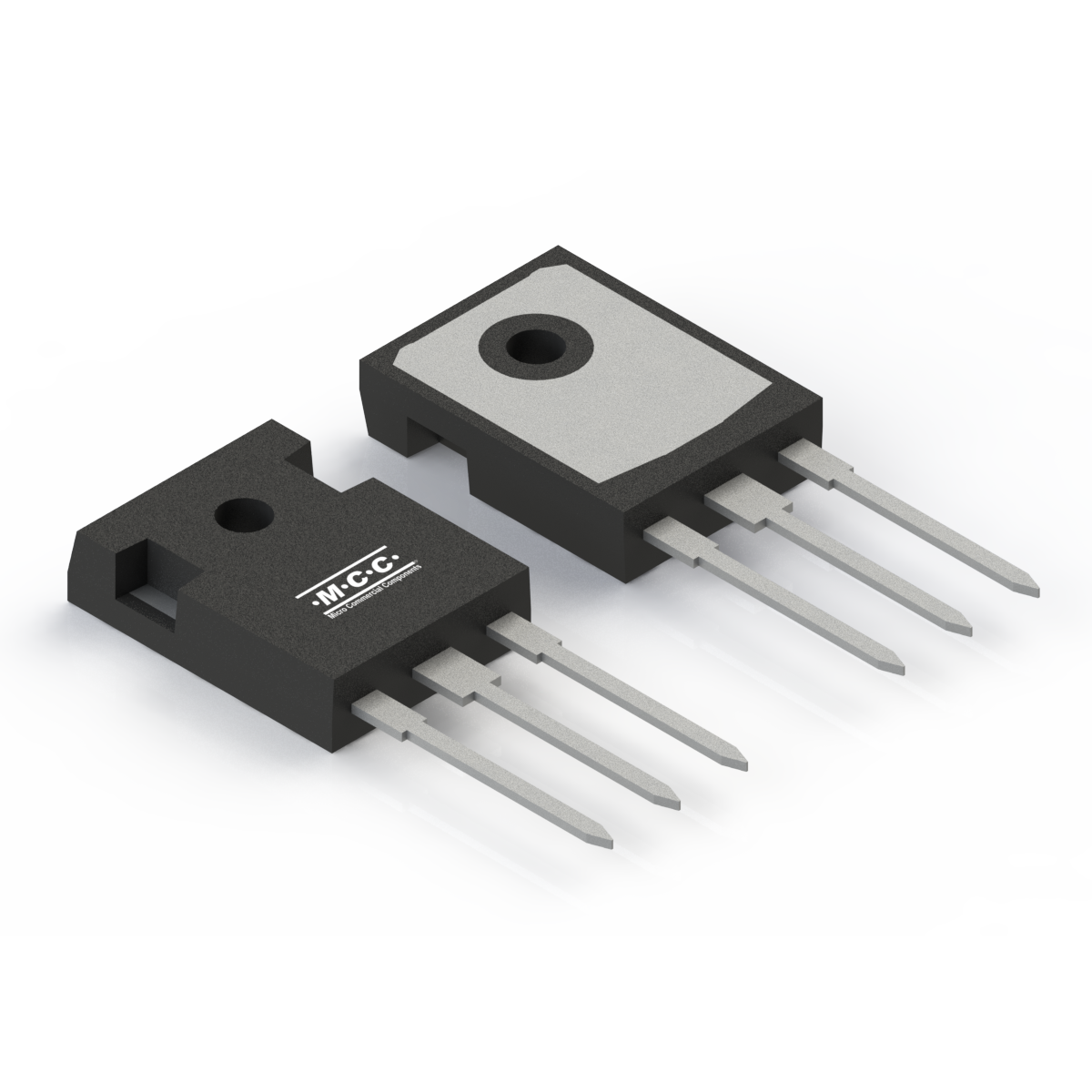

MUR3030PT
- Package Type:TO-247
- Packing Info:Bulk : 360pcs/Box, 1.8K/Ctn;
- Category:Super Fast Recovery Rectifiers
- MPN:MUR3030PT-BP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
TRR (μs) | IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| MUR3030PT | Dual | 30 | 300 | 1.35 | 5 | 0.035 | 180 | 15 | 300 | 175 |
| Part Number MUR3030PT | Number of Functions Dual | IF(AV)(A) 30 | VRWM (V) 300 |
VF (V) [max]@IF(A) 1.35 |
IR (uA) [max] @ VR 5 |
TRR (μs) 0.035 | IFSM (A) 180 | IF(A) 15 | VR (V) 300 |
Tj [max] (°C) 175 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MSL | MTBF | FIT |
|---|---|---|---|
|
N/A | 51066.20 | 2.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
