Super Fast Recovery Rectifiers | Status : Active

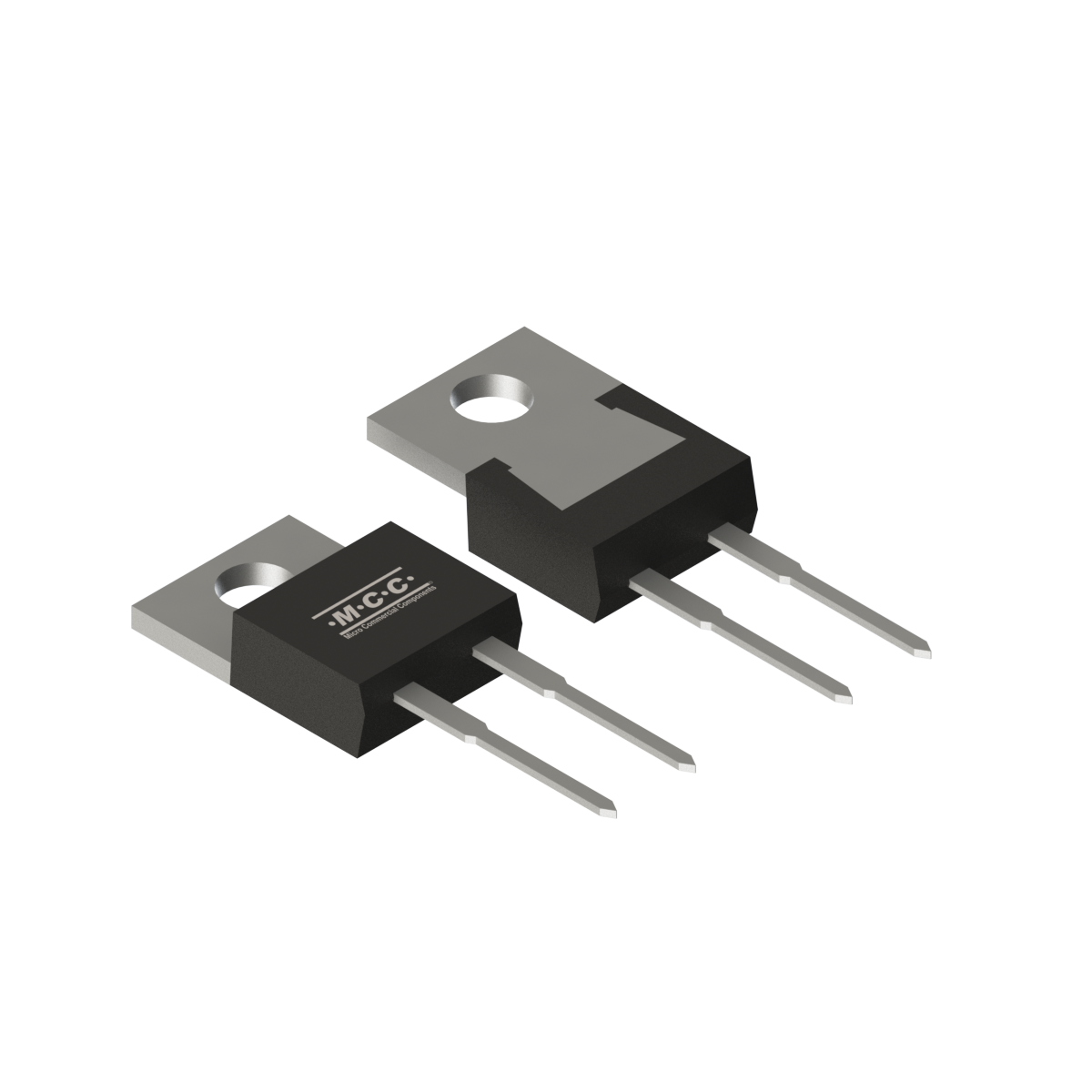

MURS3060

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MURS3060 Single 30 600 1.7 50 0.05 200 30 600 150
Part Number MURS3060 Number of Functions Single IF(AV)(A)  30 VRWM (V)  600 VF
(V) [max]@IF(A)  1.7 		IR (uA)  [max] @
VR  50 		TRR (μs)  0.05 IFSM (A)  200 IF(A)  30 VR (V)  600 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MURS3060 TO-220AC TO-220AC 2.2400 MURS3060

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 19984.92 5.7
