Bridge Rectifiers | Status :
Active

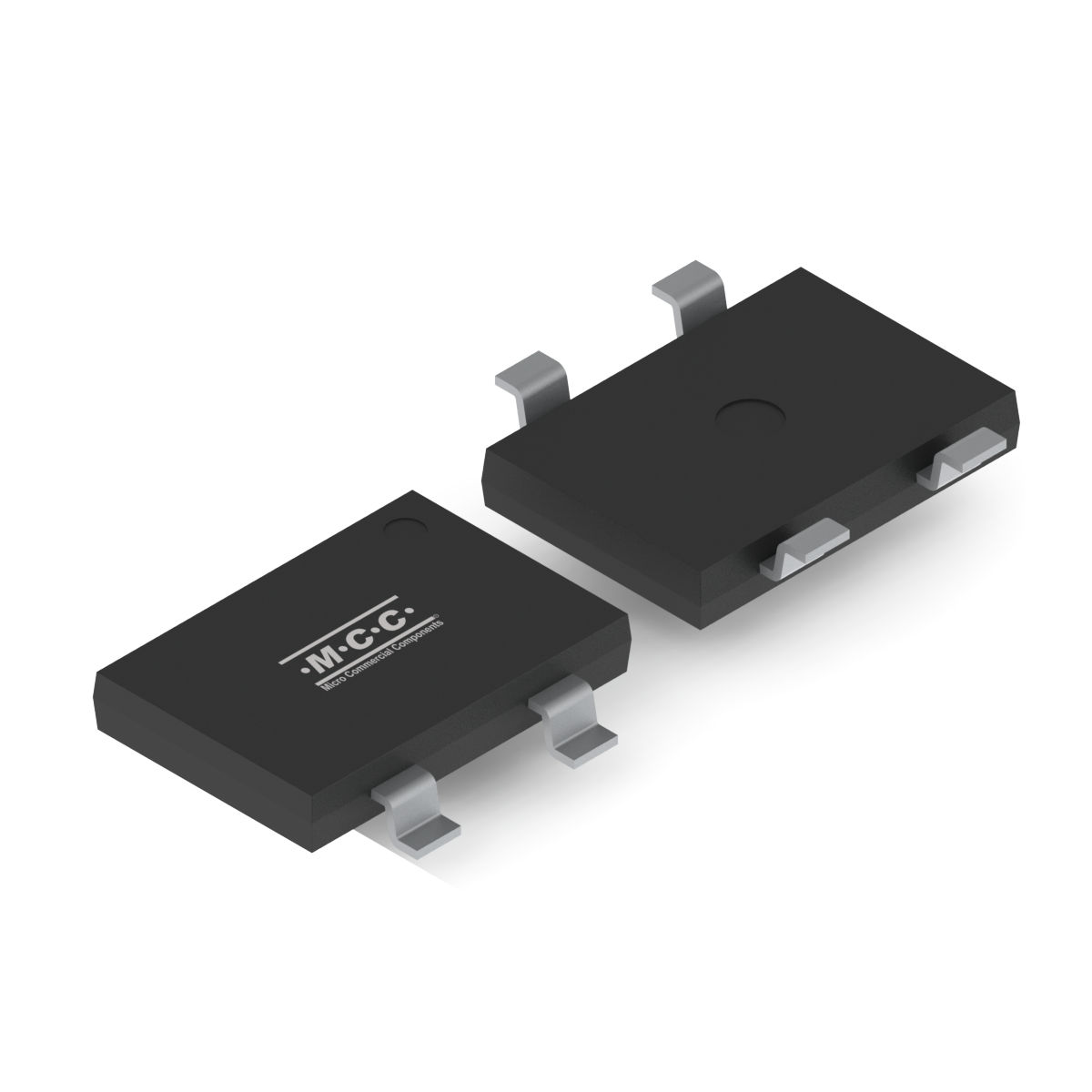

TBL608L
- Package Type:TBL
- Packing Info:Tape&Reel:1.8Kpcs/Reel
- Category:Bridge Rectifiers
- MPN:TBL608L-TP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| TBL608L | 1-Phase Bridge | 6 | 800 | 0.92 | 5 | 200 | 3 | 800 | 150 |
| Part Number TBL608L | Number of Functions 1-Phase Bridge | IF(AV)(A) 6 | VRWM (V) 800 |
VF (V) [max]@IF(A) 0.92 |
IR (uA) [max] @ VR 5 |
IFSM (A) 200 | IF(A) 3 | VR (V) 800 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|---|
|
1 |
|
0.00 | 0.0 |
