Bridge Rectifiers | Status : Preferred

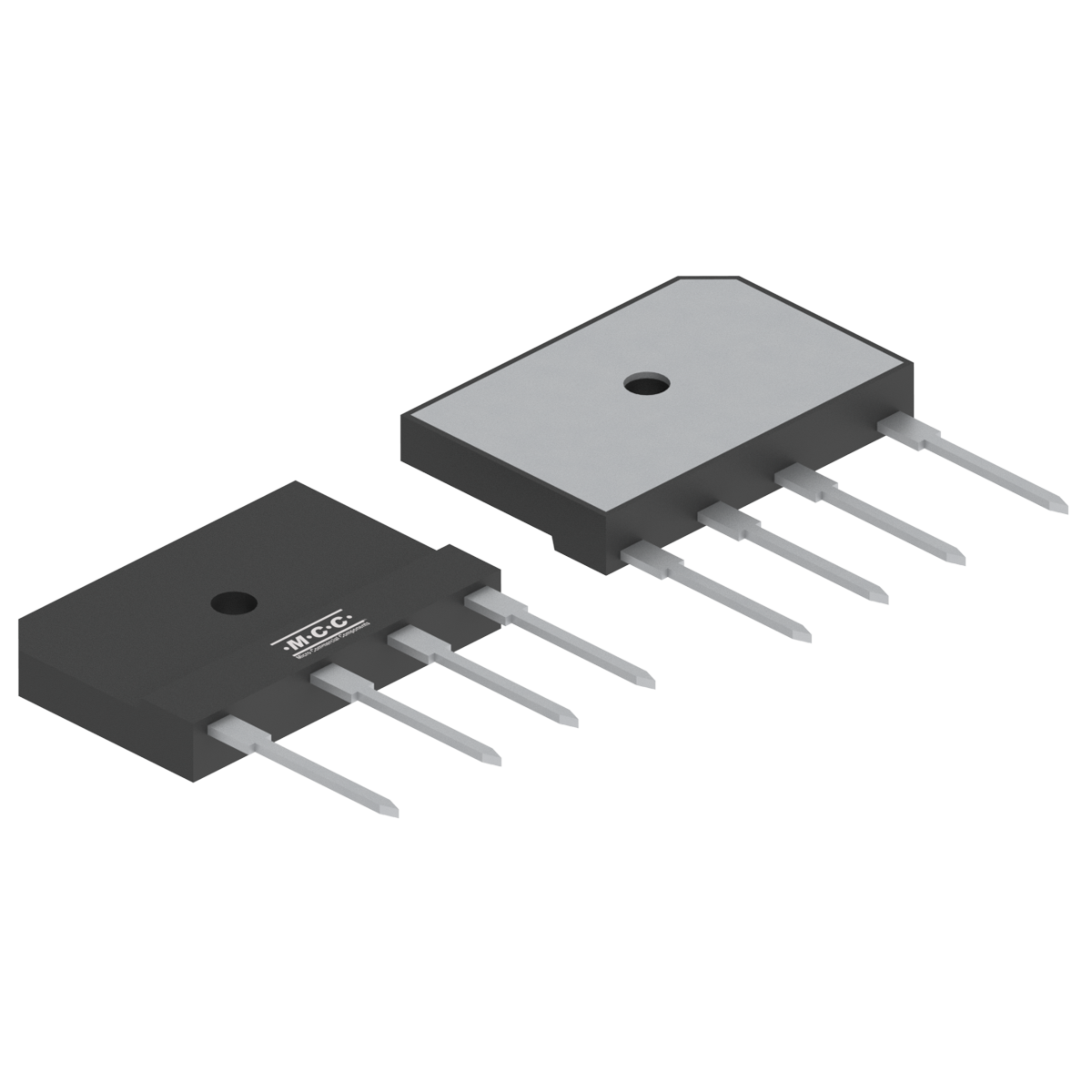

PB3516

  • Package Type:PB
  • Packing Info:Tube:15pcs/Tube,750pcs/Box,1.5K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:PB3516-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
PB3516 1-Phase Bridge 35 1600 1.1 5 400 17.5 1600 150
Part Number PB3516 Number of Functions 1-Phase Bridge IF(AV)(A)  35 VRWM (V)  1600 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  5 		IFSM (A)  400 IF(A)  17.5 VR (V)  1600 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
PB3516 PB PB 7.5503 PB3516

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report N/A Halogen Free 0.00 0.0
