Bridge Rectifiers | Status : Active

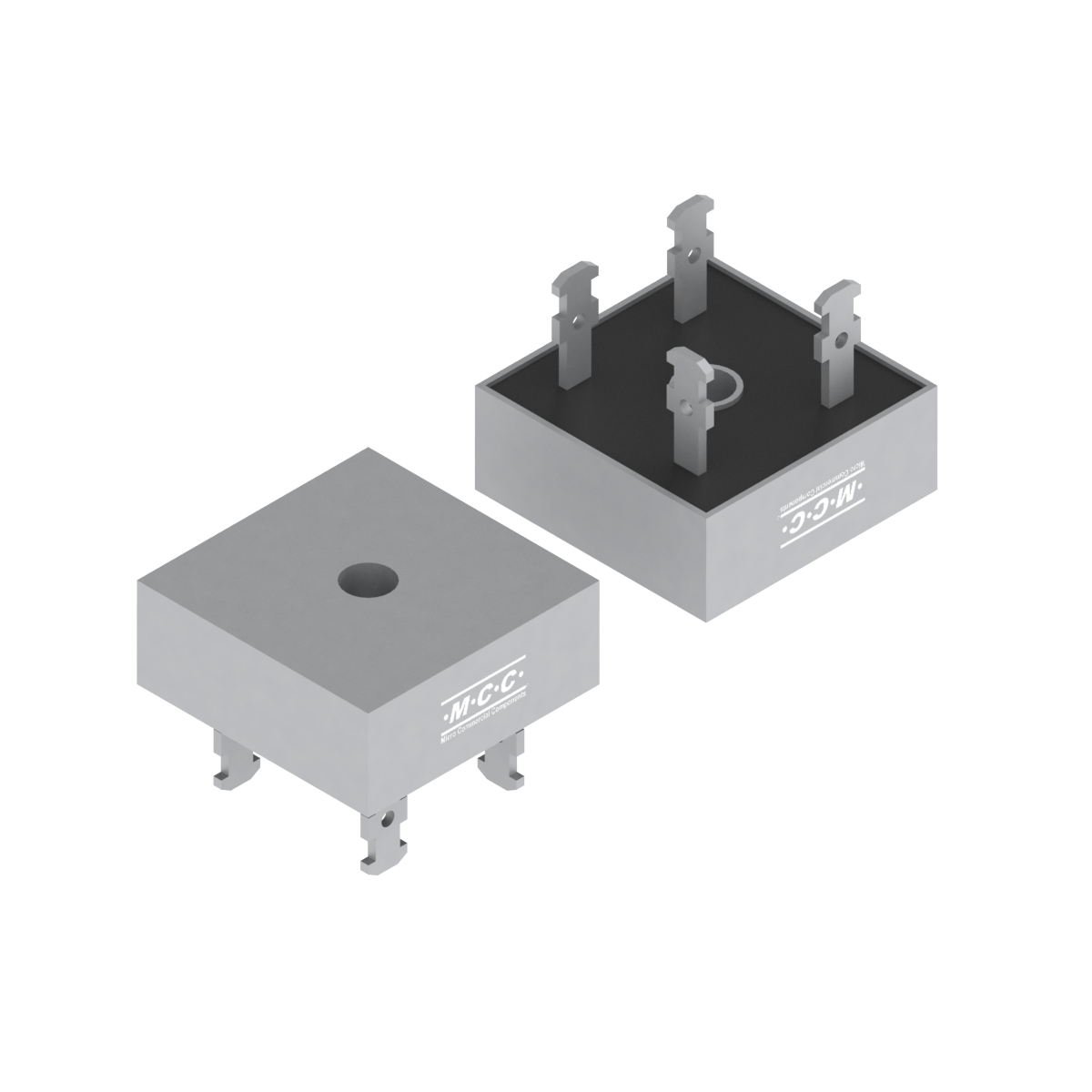

MB3510

  • Package Type:MB-35
  • Packing Info:Bulk: 50pcs/Box, 400Pcs/Ctn .;
  • Category:Bridge Rectifiers
  • MPN:MB3510-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
MB3510 1-Phase Bridge 35 1000 1.1 10 400 17.5 1000 125
Part Number MB3510 Number of Functions 1-Phase Bridge IF(AV)(A)  35 VRWM (V)  1000 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  10 		IFSM (A)  400 IF(A)  17.5 VR (V)  1000 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MB3510 MB-35 MB-35 24.0000 MB3510

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
6729.17 17.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
