ESD Protection Devices | Status : Active
Automotive

ESD15VD3BHE3

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration Reverse
Standoff
Voltage
VRWM(V)		 Peak Pulse
Current
IPP(A)		 Max.
Clamping
Voltage
VC (V)		 Junction
Capacitance
CJ(pF)		 Peak Pluse
Power
Dissipation
PPPK (W)		 Maximum
Reverse
Leakage
IR (uA)		 Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)		 VESDIEC61000-4-2
Air/Contact
(kV)
ESD15VD3BHE3 1 Bidirectional 15 5 28.5 45 250 1 16.7 150 ±30
Part Number ESD15VD3BHE3 Number of Functions 1 Configuration Bidirectional Reverse
Standoff
Voltage
VRWM(V)  15 		Peak Pulse
Current
IPP(A)  5 		Max.
Clamping
Voltage
VC (V)  28.5 		Junction
Capacitance
CJ(pF)  45 		Peak Pluse
Power
Dissipation
PPPK (W)  250 		Maximum
Reverse
Leakage
IR (uA)  1 		Breakdown
Voltage
Min VBR(V)  16.7 		Breakdown
Voltage
Max VBR(V)   		Junction
Temperature
Tj [max] (°C)  150 		VESDIEC61000-4-2
Air/Contact
(kV)  ±30

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

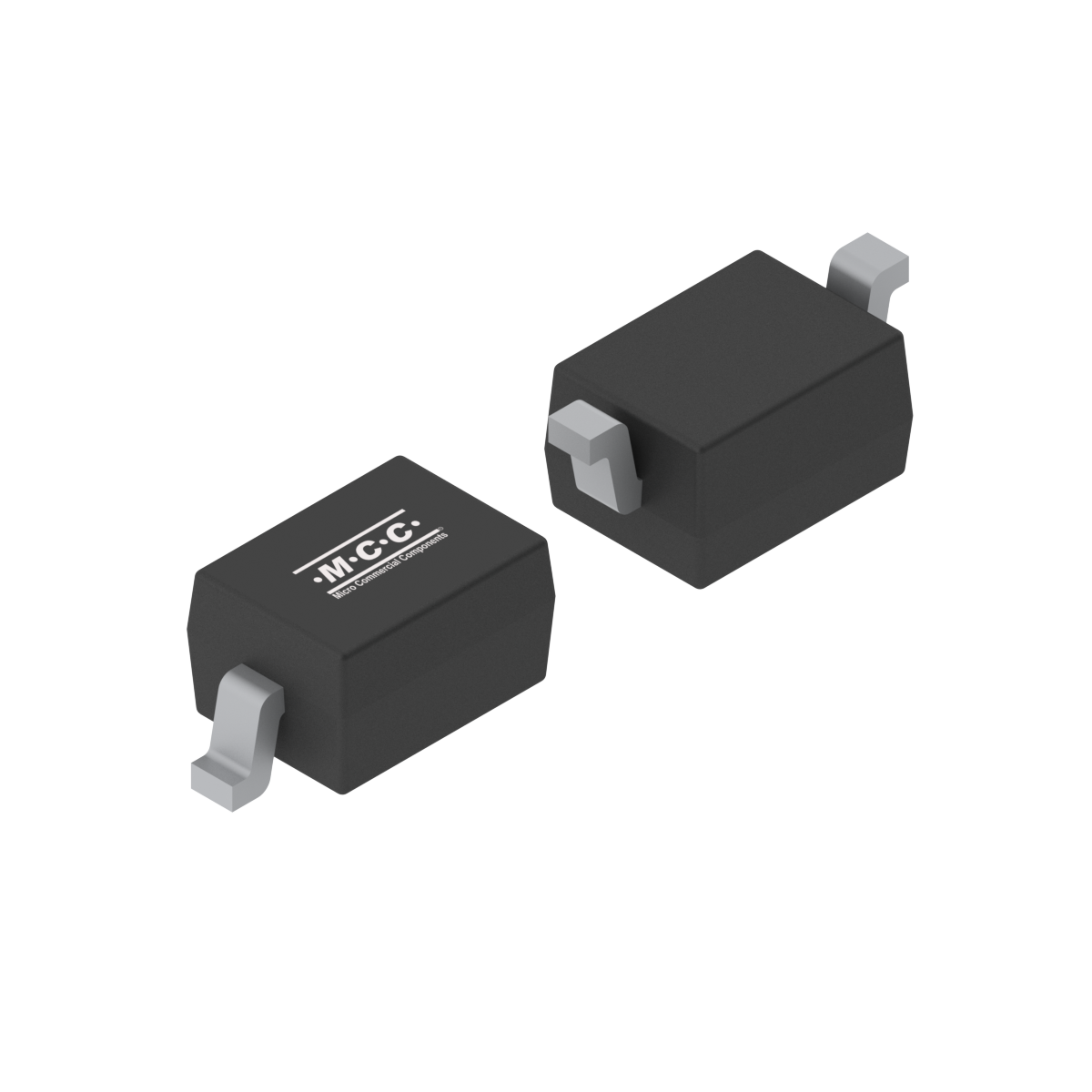

ESD15VD3BHE3 SOD-323 SOD-323 0.0040 15B. Tape&Reel:3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 12490.58 9.1
