ESD Protection Devices | Status : Allocation

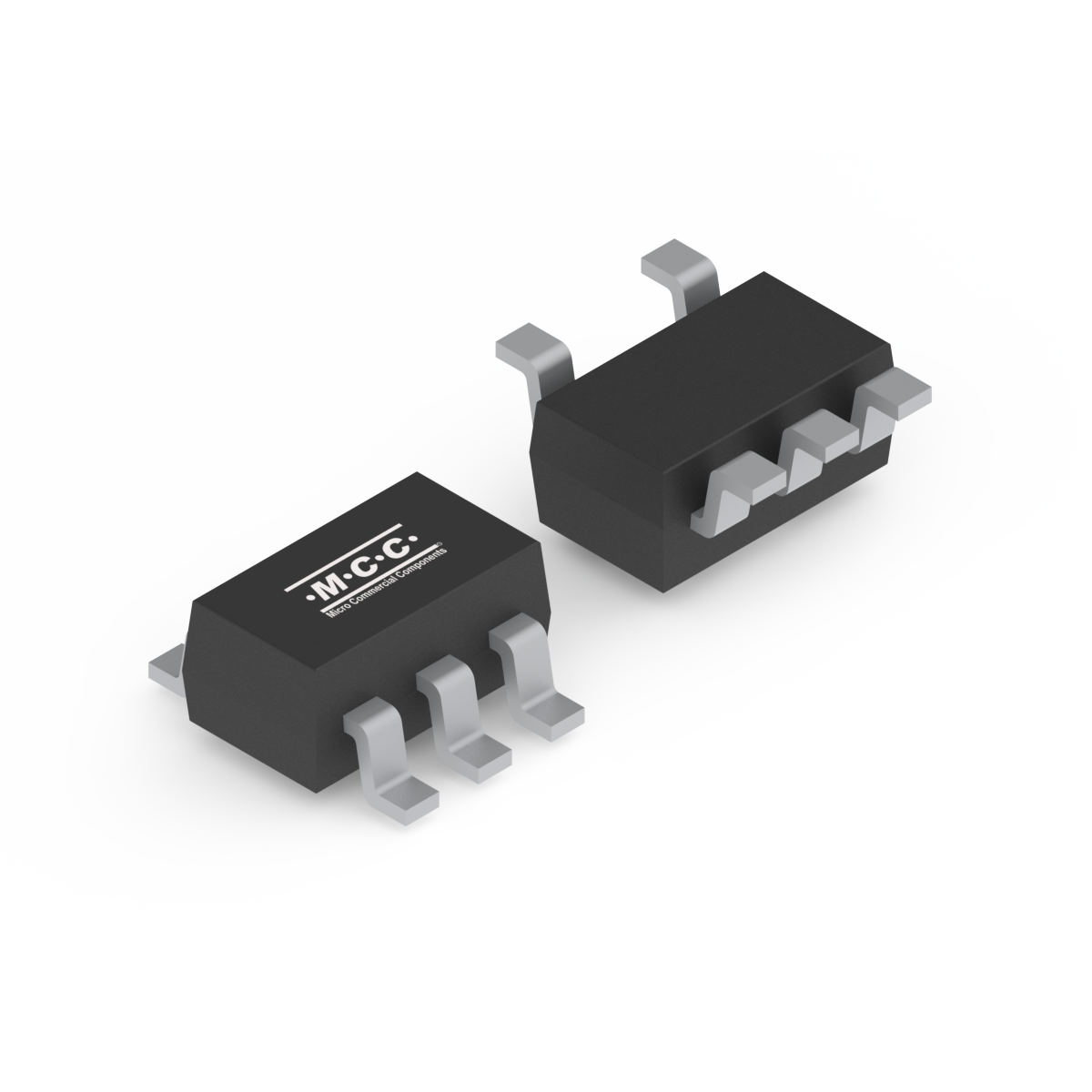

ESD5V0J4

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration Reverse
Standoff
Voltage
VRWM(V)		 Peak Pulse
Current
IPP(A)		 Max.
Clamping
Voltage
VC (V)		 Junction
Capacitance
CJ(pF)		 Peak Pluse
Power
Dissipation
PPPK (W)		 Maximum
Reverse
Leakage
IR (uA)		 Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)		 VESDIEC61000-4-2
Air/Contact
(kV)
ESD5V0J4 4 Unidirectional 5 5 12.5 90 200 2 6 7.2 150 ±30
Part Number ESD5V0J4 Number of Functions 4 Configuration Unidirectional Reverse
Standoff
Voltage
VRWM(V)  5 		Peak Pulse
Current
IPP(A)  5 		Max.
Clamping
Voltage
VC (V)  12.5 		Junction
Capacitance
CJ(pF)  90 		Peak Pluse
Power
Dissipation
PPPK (W)  200 		Maximum
Reverse
Leakage
IR (uA)  2 		Breakdown
Voltage
Min VBR(V)  6 		Breakdown
Voltage
Max VBR(V)  7.2 		Junction
Temperature
Tj [max] (°C)  150 		VESDIEC61000-4-2
Air/Contact
(kV)  ±30

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
ESD5V0J4 SOT-353 SOT-353 0.0070 12 Tape: 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free MTBF FIT
Halogen Free 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
