Medium Power Bipolar Transistors | Status : Active

2SD1664-R

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
2SD1664-R Single NPN 0.5 32 1 180 390 0.4 150 150
Part Number 2SD1664-R Number of Functions Single Polarity NPN PD (W)  0.5 VCEO(V)  32 IC (A)  1 HFE [min]  180 HFE [max]  390 VCE(sat) [max]
(V)  0.4 		fT(MHz)  150 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

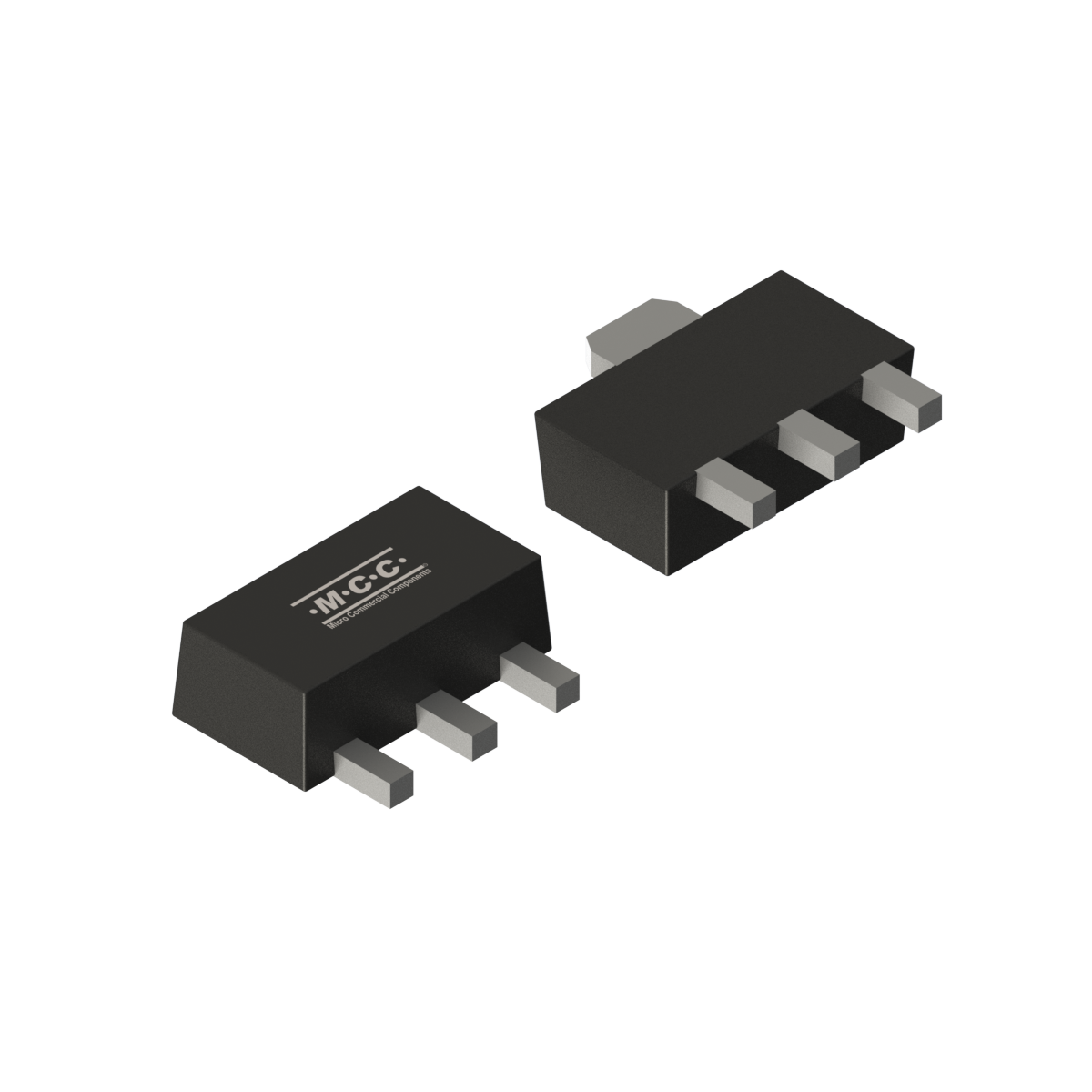

2SD1664-R SOT-89 SOT-89 0.0450 DAR Tape: 1K/Reel , 40K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
122421-1 MCC will update the products packing method for SOT-223 & SOT-89 packages. PDF 12/24/2021
113021-1 Additional new wafer source for SOT-89 & SOT-223 Parts PDF 11/30/2021
