Medium Power Bipolar Transistors | Status :
Obsoleted
KTA1664-Y
Last Time Ship Date:08-01-2019
EOL Notice

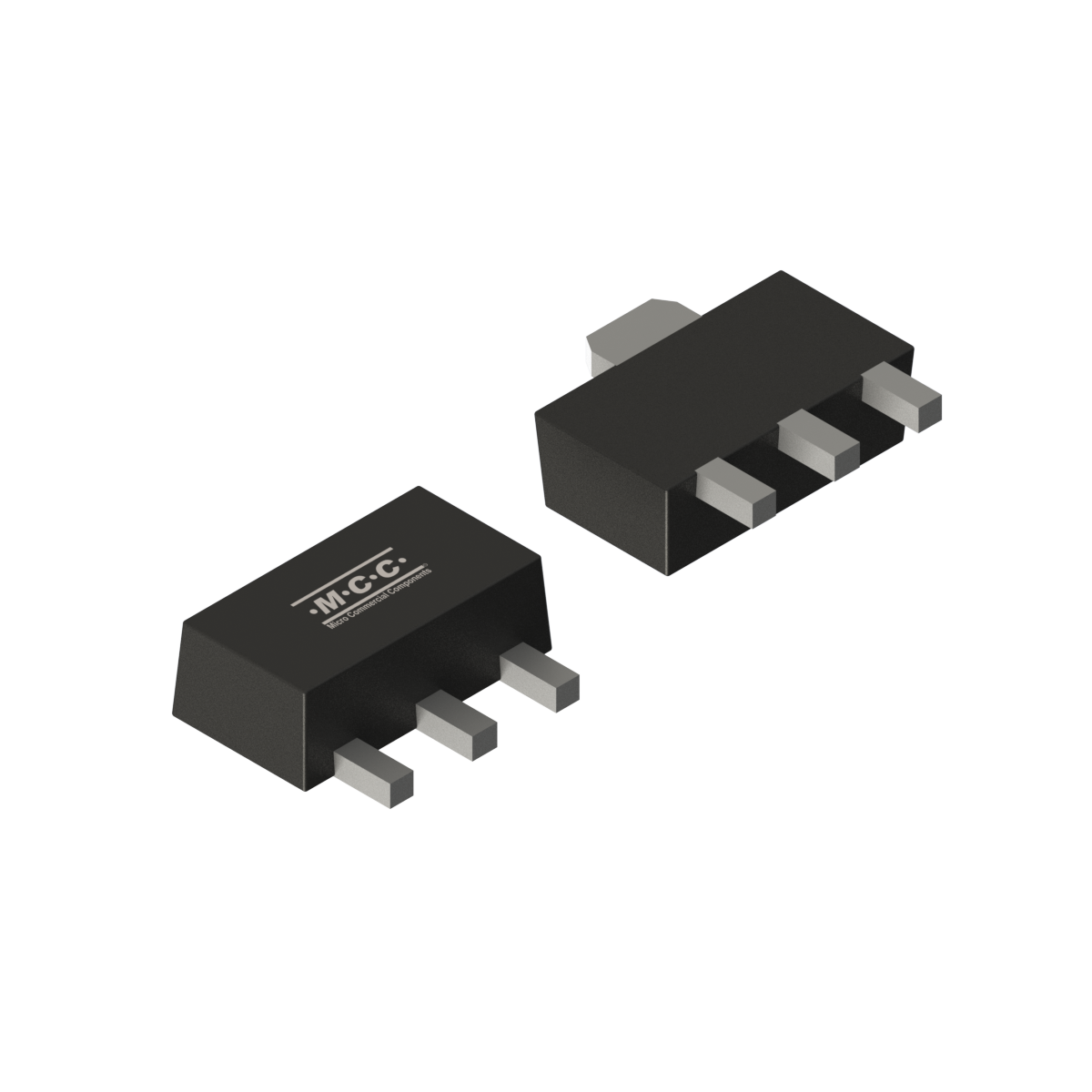

- Package Type:SOT-89
- Packing Info:Tape: 1K/Reel , 40K/Ctn;
- Category:Medium Power Bipolar Transistors
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| KTA1664-Y | Single | PNP | 0.5 | -30 | -0.8 | 180 | 390 | -0.7 | 120 | 150 |
| Part Number KTA1664-Y | Number of Functions Single | Polarity PNP | PD (W) 0.5 | VCEO(V) -30 | IC (A) -0.8 | HFE [min] 180 | HFE [max] 390 |
VCE(sat) [max] (V) -0.7 |
fT(MHz) 120 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free | MTBF | FIT |
|---|---|---|---|
|
|
27479.27 | 4.2 |
