Small Signal Bipolar Transistors | Status :
Active
MMBTA44

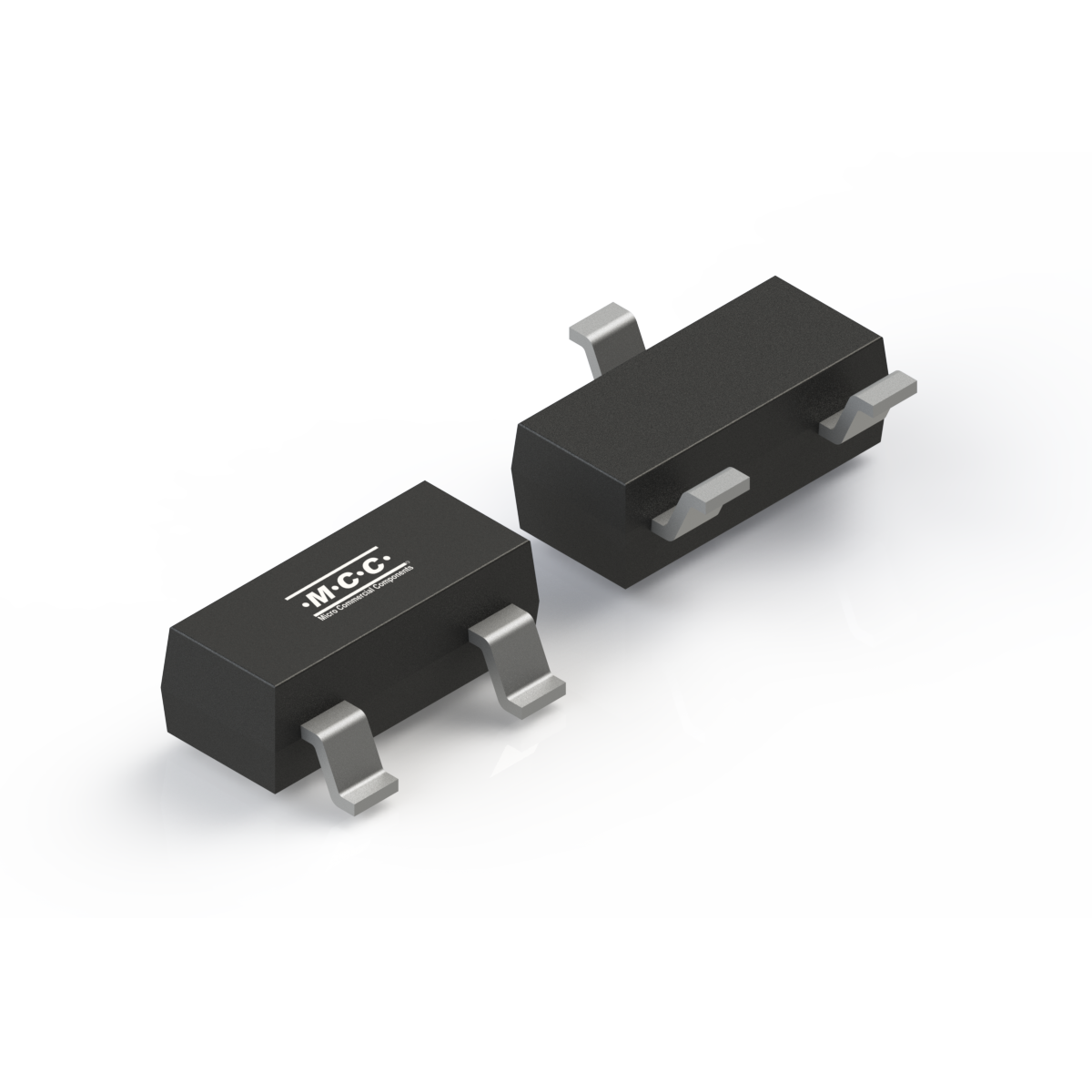

- Package Type:SOT-23
- Packing Info:Tape: 3K/Reel , 120K/Ctn;
- Category:Small Signal Bipolar Transistors
- MPN:MMBTA44-TP
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| MMBTA44 | Single | NPN | 0.35 | 400 | 0.1 | 40 | 0.75 | 50 | 150 |
| Part Number MMBTA44 | Number of Functions Single | Polarity NPN | PD (W) 0.35 | VCEO(V) 400 | IC (A) 0.1 | HFE [min] 40 | HFE [max] |
VCE(sat) [max] (V) 0.75 |
fT(MHz) 50 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free | MTBF | FIT |
|---|---|---|---|
|
|
24981.15 | 4.6 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 041825-1 | Releasing of new MCC plant in Vietnam to support increasing production capacity |
|
04/18/2025 |
| 080111 | Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 |
|
08/15/2011 |
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
