Small Signal Bipolar Transistors | Status : Active

KTC3875-GR

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
KTC3875-GR Single NPN 0.15 50 0.15 200 400 0.25 80 150
Part Number KTC3875-GR Number of Functions Single Polarity NPN PD (W)  0.15 VCEO(V)  50 IC (A)  0.15 HFE [min]  200 HFE [max]  400 VCE(sat) [max]
(V)  0.25 		fT(MHz)  80 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

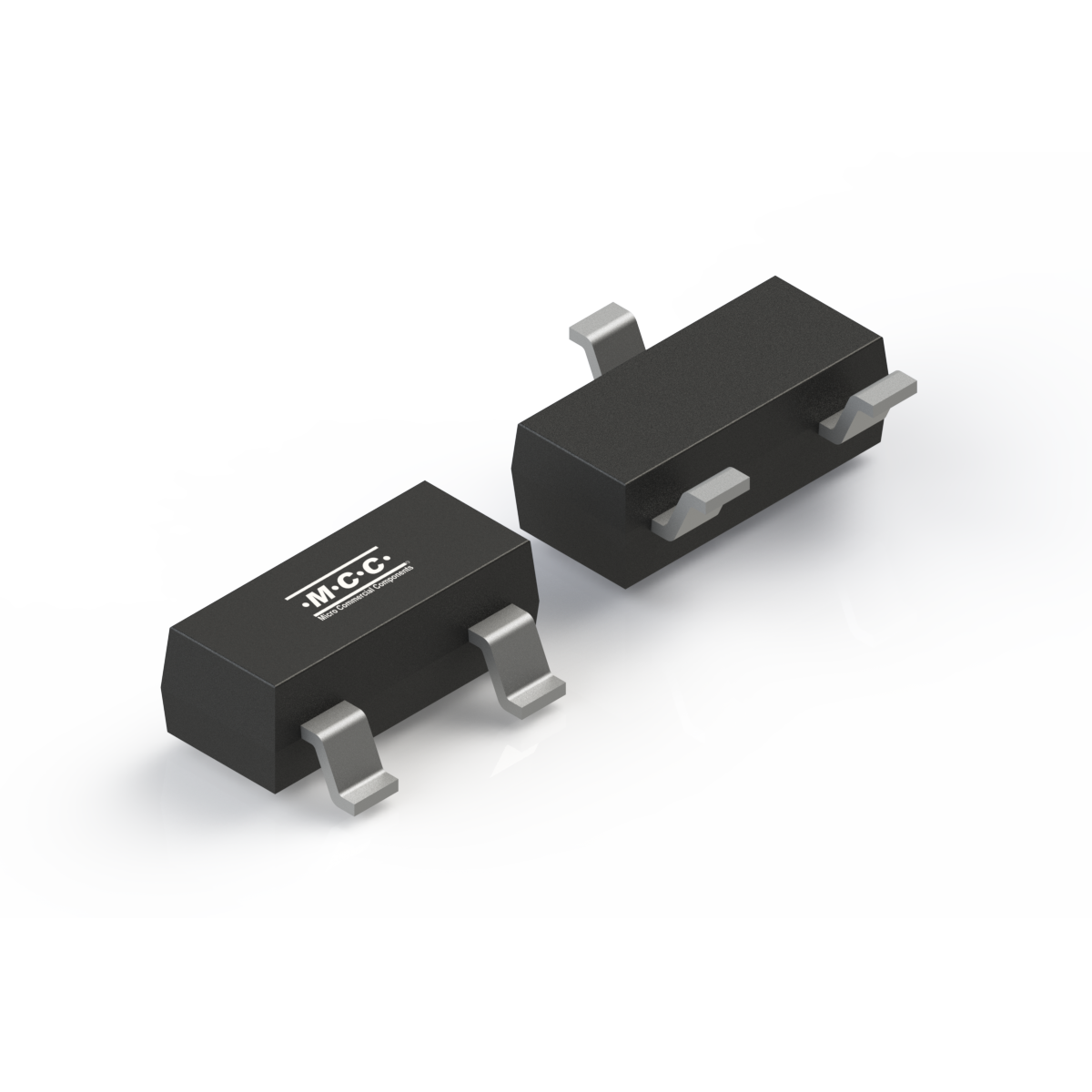

KTC3875-GR SOT-23 SOT-23 0.0080 ALG Tape: 3K/Reel , 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 27479.27 4.2
