Small Signal Bipolar Transistors | Status :
Active

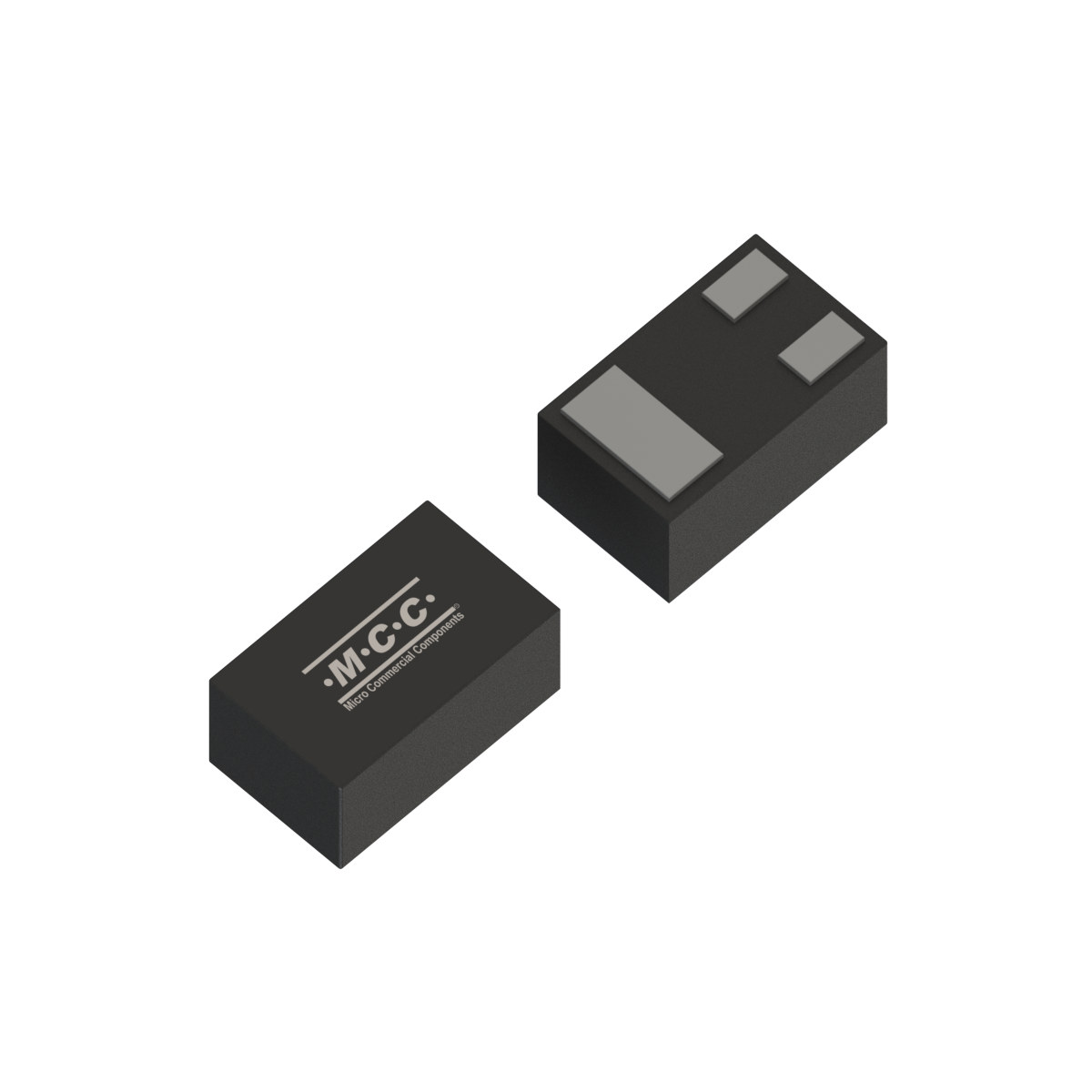

BC857BL3
- Package Type:DFN1006-3
- Packing Info:Tape&Reel: 10Kpcs/Reel
- Category:Small Signal Bipolar Transistors
- MPN:BC857BL3-TP
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| BC857BL3 | Single | PNP | 0.15 | -45 | -0.1 | 200 | 450 | -0.65 | 100 | 150 |
| Part Number BC857BL3 | Number of Functions Single | Polarity PNP | PD (W) 0.15 | VCEO(V) -45 | IC (A) -0.1 | HFE [min] 200 | HFE [max] 450 |
VCE(sat) [max] (V) -0.65 |
fT(MHz) 100 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|
| 1 |
|
12490.58 | 9.1 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 030424-1 | Package DFN1006-3 Change pin dot position for transistors |
|
03/04/2024 |
