Small Signal Bipolar Transistors | Status :
Active
BC856S

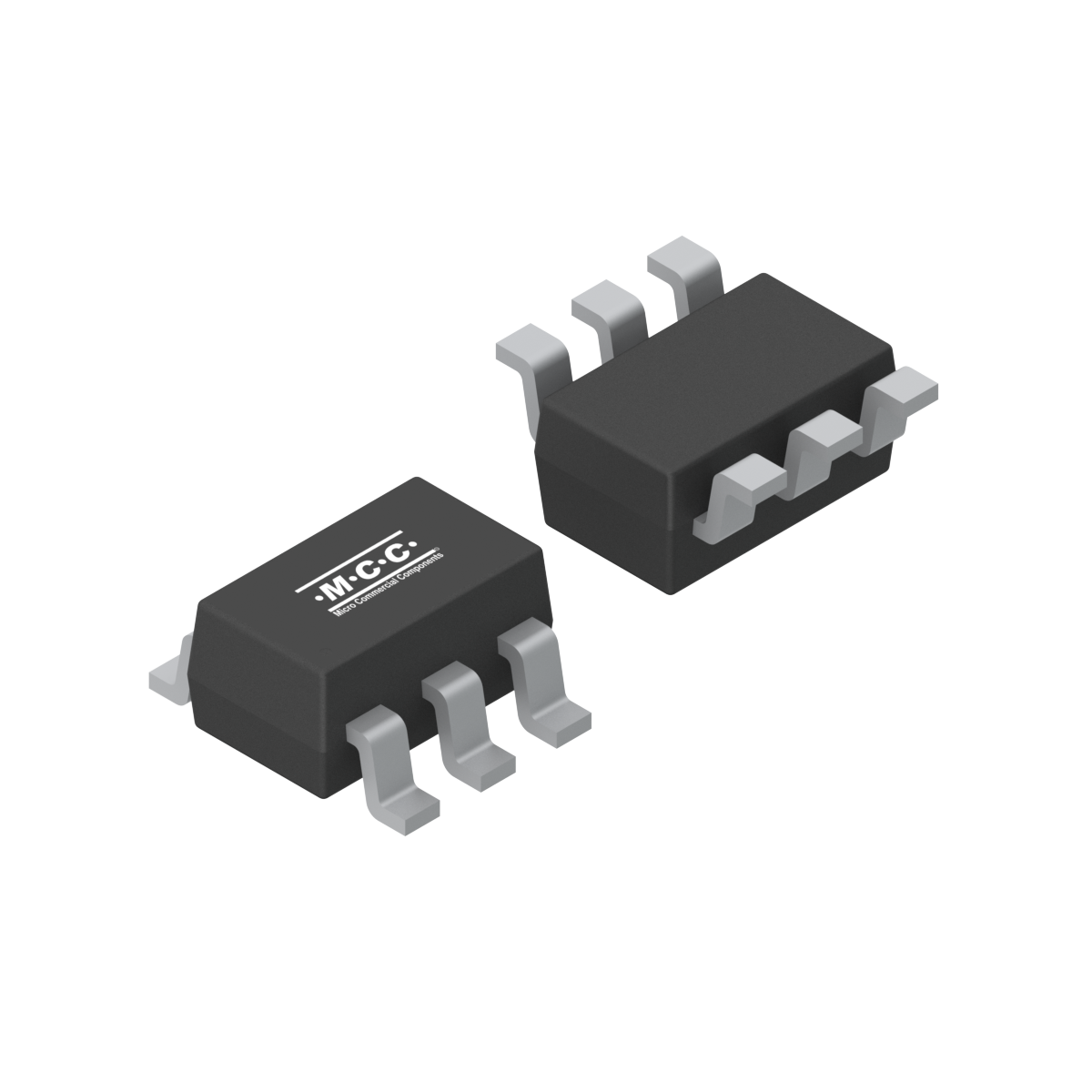

- Package Type:SOT-363
- Packing Info:Tape&Reel:3K/Reel;
- Category:Small Signal Bipolar Transistors
- MPN:BC856S-TP, BC856S-13P
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| BC856S | Dual | PNP*2 | 0.2 | -65 | -0.1 | 110 | -0.65 | 100 | 150 |
| Part Number BC856S | Number of Functions Dual | Polarity PNP*2 | PD (W) 0.2 | VCEO(V) -65 | IC (A) -0.1 | HFE [min] 110 | HFE [max] |
VCE(sat) [max] (V) -0.65 |
fT(MHz) 100 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|---|
|
1 |
|
17486.81 | 6.5 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 031325-1 | Additional new 2nd source |
|
03/13/2025 |
