Small Signal Bipolar Transistors | Status : Active

BC856BS

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
BC856BS Dual PNP*2 0.2 -65 -0.1 200 450 -0.3 100 150
Part Number BC856BS Number of Functions Dual Polarity PNP*2 PD (W)  0.2 VCEO(V)  -65 IC (A)  -0.1 HFE [min]  200 HFE [max]  450 VCE(sat) [max]
(V)  -0.3 		fT(MHz)  100 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

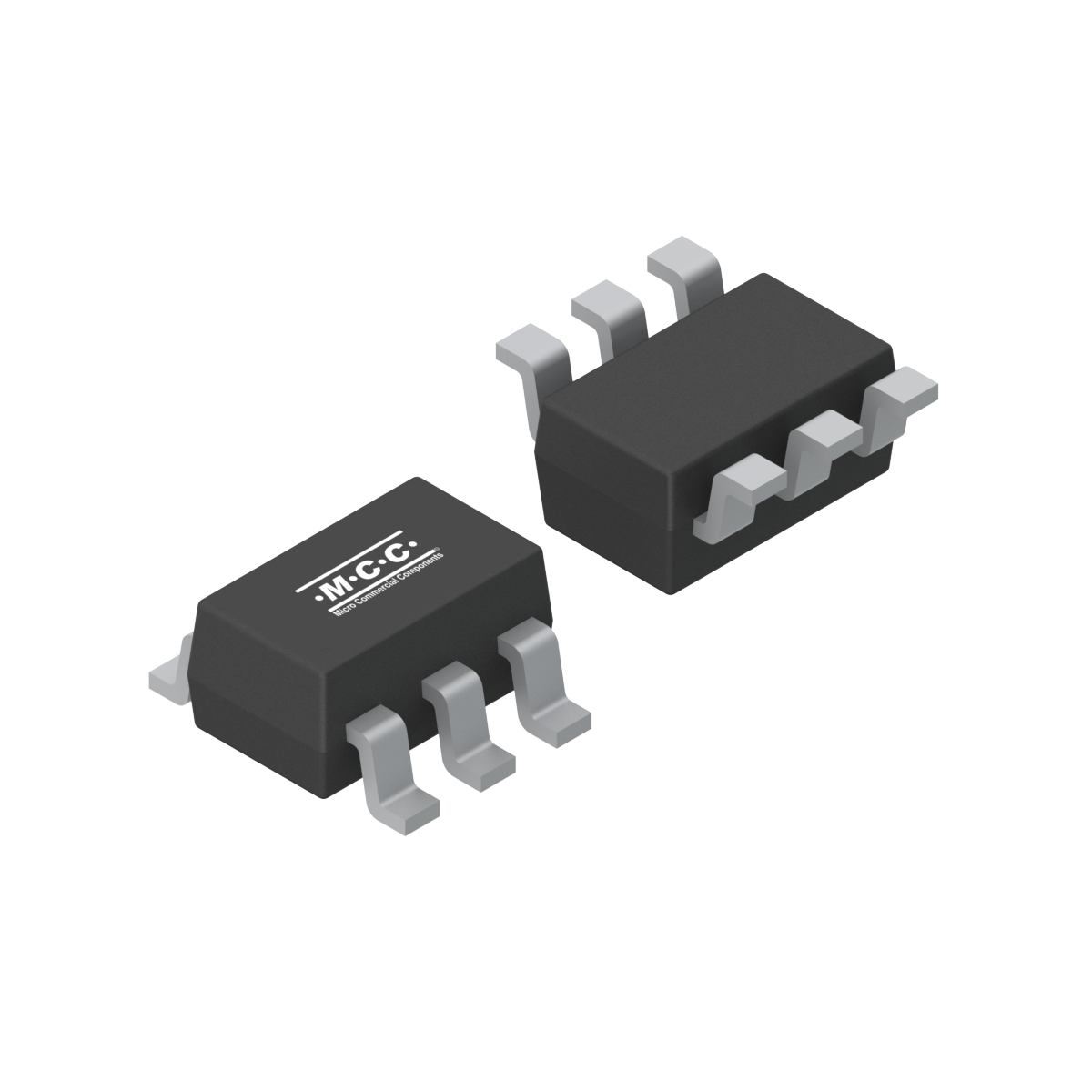

BC856BS SOT-363 SOT-363 0.0090 5Ft Tape: 3K/Reel , 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
031325-1 Additional new 2nd source PDF 03/13/2025
