Small Signal Bipolar Transistors | Status : Active

BC846BS

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
BC846BS Dual NPN*2 0.2 65 0.1 200 450 0.1 80 150
Part Number BC846BS Number of Functions Dual Polarity NPN*2 PD (W)  0.2 VCEO(V)  65 IC (A)  0.1 HFE [min]  200 HFE [max]  450 VCE(sat) [max]
(V)  0.1 		fT(MHz)  80 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

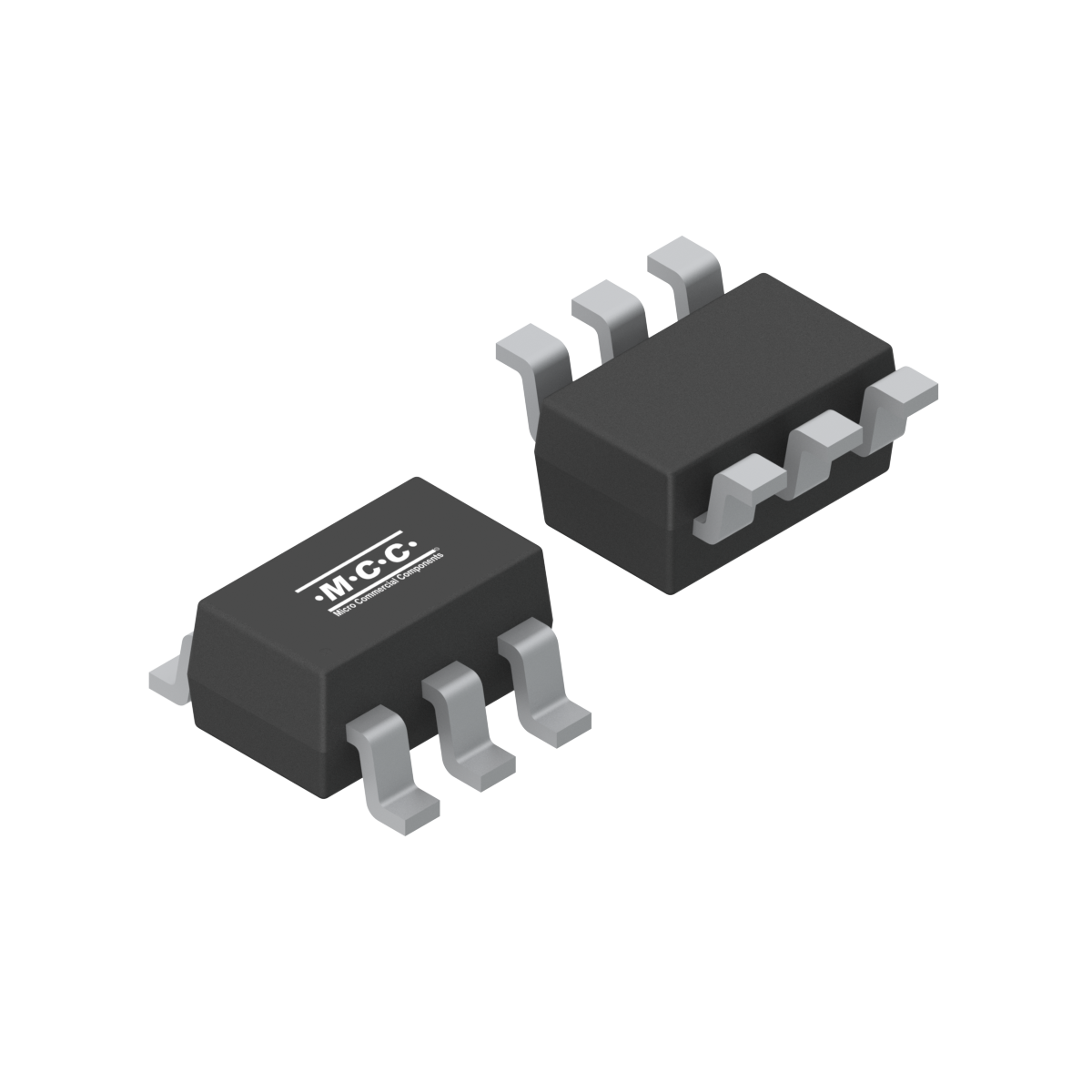

BC846BS SOT-363 SOT-363 0.0090 4Ft Tape&Reel:3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
031325-1 Additional new 2nd source PDF 03/13/2025
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
