Small Signal Bipolar Transistors | Status :
Active
BC807-25

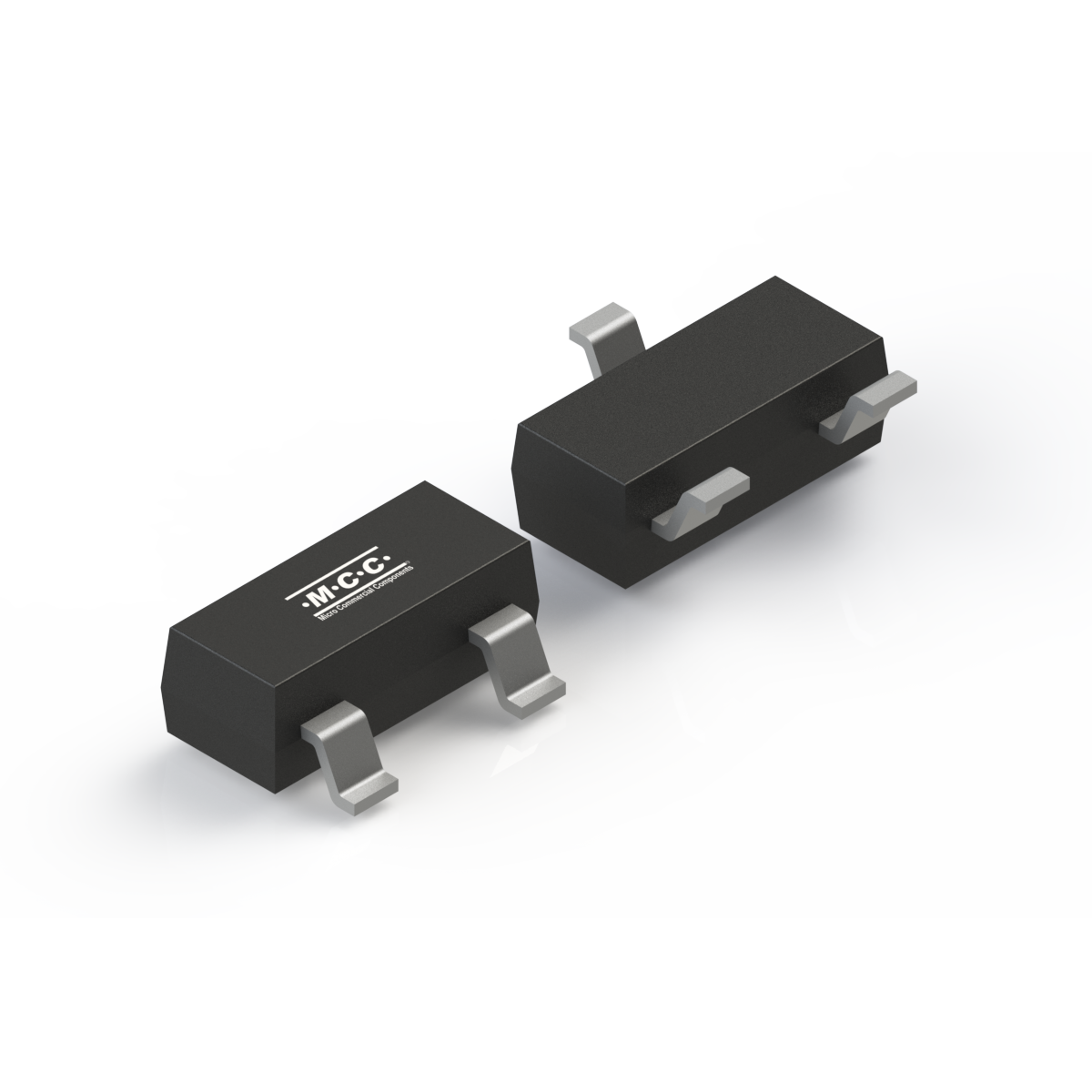

- Package Type:SOT-23
- Packing Info:Tape: 3K/Reel , 120K/Ctn
- Category:Small Signal Bipolar Transistors
- MPN:BC807-25-TP, BC807-25-13P
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| BC807-25 | Single | PNP | 0.3 | -45 | -0.5 | 160 | 400 | -0.7 | 100 | 150 |
| Part Number BC807-25 | Number of Functions Single | Polarity PNP | PD (W) 0.3 | VCEO(V) -45 | IC (A) -0.5 | HFE [min] 160 | HFE [max] 400 |
VCE(sat) [max] (V) -0.7 |
fT(MHz) 100 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free | MTBF | FIT |
|---|---|---|---|
|
|
27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 041825-1 | Releasing of new MCC plant in Vietnam to support increasing production capacity |
|
04/18/2025 |
| 080111 | Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 |
|
08/15/2011 |
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
