Medium Power Bipolar Transistors | Status :
Obsoleted
PXT2907A
Last Time Ship Date:07/18/2025
EOL Notice

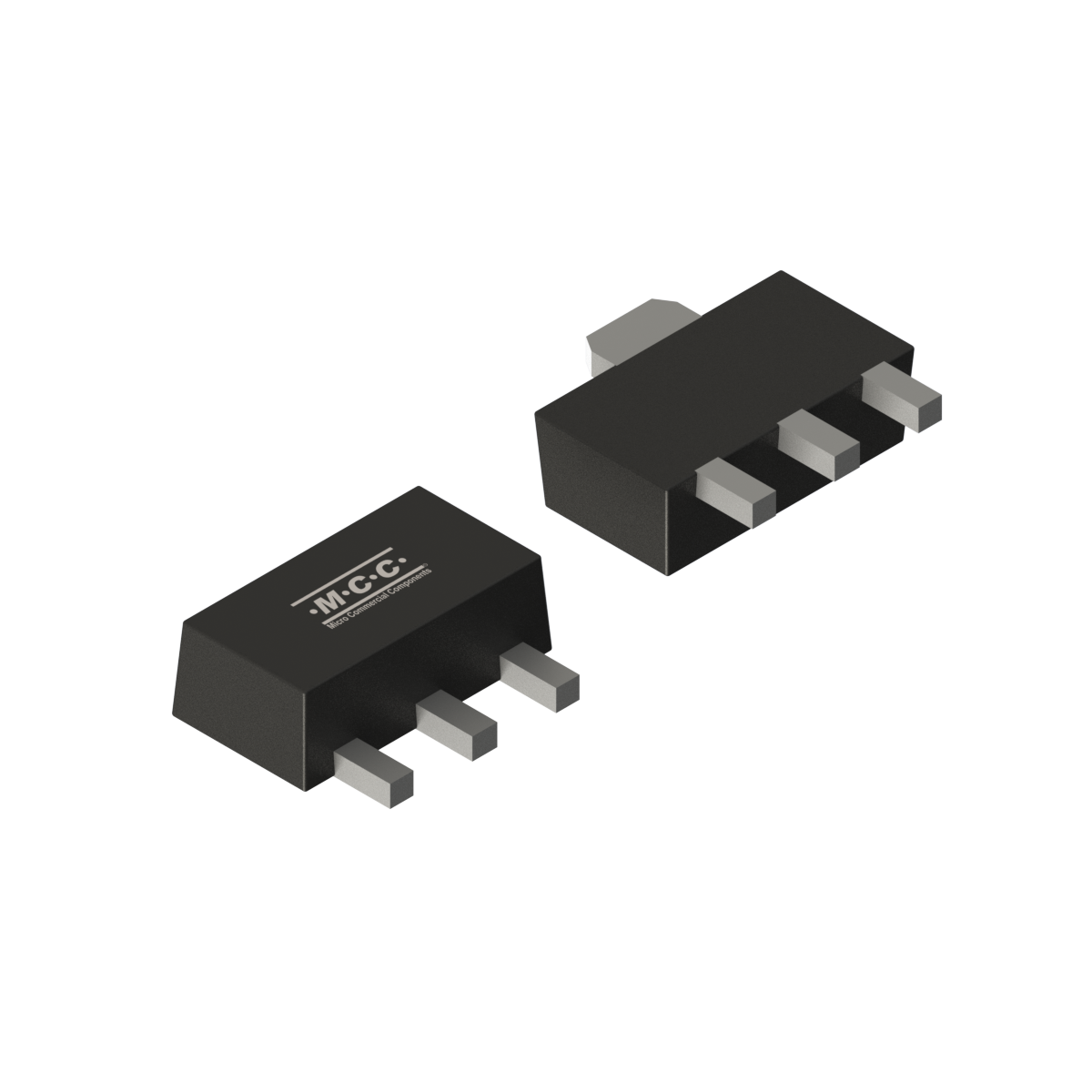

- Package Type:SOT-89
- Packing Info:Tape: 1K/Reel , 40K/Ctn;
- Category:Medium Power Bipolar Transistors
- MPN:PXT2907A-TP
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| PXT2907A | Single | PNP | 0.5 | -60 | -0.6 | 100 | 300 | -0.4 | 200 | 150 |
| Part Number PXT2907A | Number of Functions Single | Polarity PNP | PD (W) 0.5 | VCEO(V) -60 | IC (A) -0.6 | HFE [min] 100 | HFE [max] 300 |
VCE(sat) [max] (V) -0.4 |
fT(MHz) 200 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free | MTBF | FIT |
|---|---|---|---|
|
|
27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 080111 | Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 |
|
08/15/2011 |
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
