Medium Power Bipolar Transistors | Status : Active

MJD122S

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
MJD122S Single NPN 1.5 100 5 1000 12000 2 150
Part Number MJD122S Number of Functions Single Polarity NPN PD (W)  1.5 VCEO(V)  100 IC (A)  5 HFE [min]  1000 HFE [max]  12000 VCE(sat) [max]
(V)  2 		fT(MHz)   Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

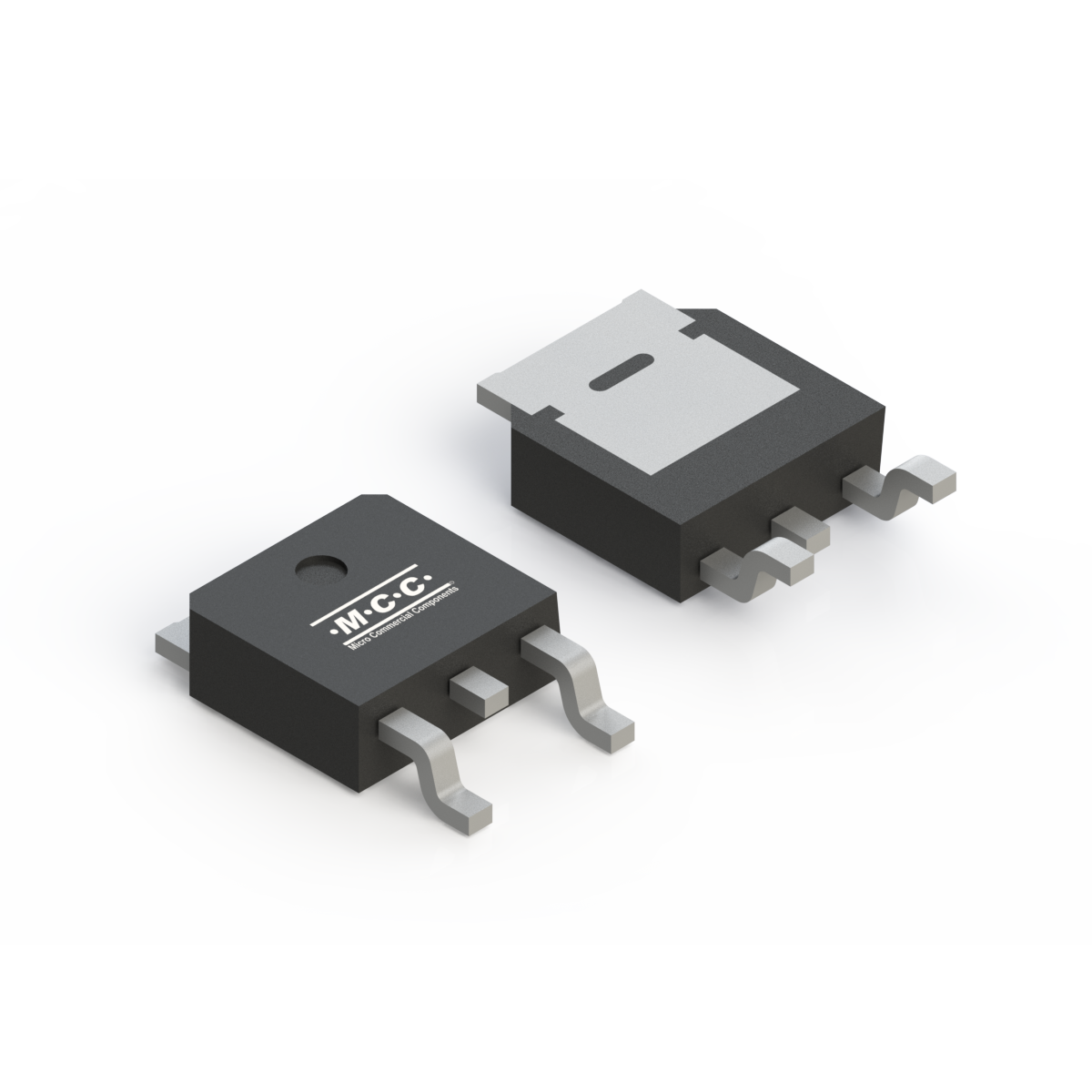

MJD122S DPAK DPAK 0.3252 MJD122S Tape&Reel:2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0
