Medium Power Bipolar Transistors | Status :
Obsoleted
B772-Y
Last Time Ship Date:06-30-2021
EOL Notice

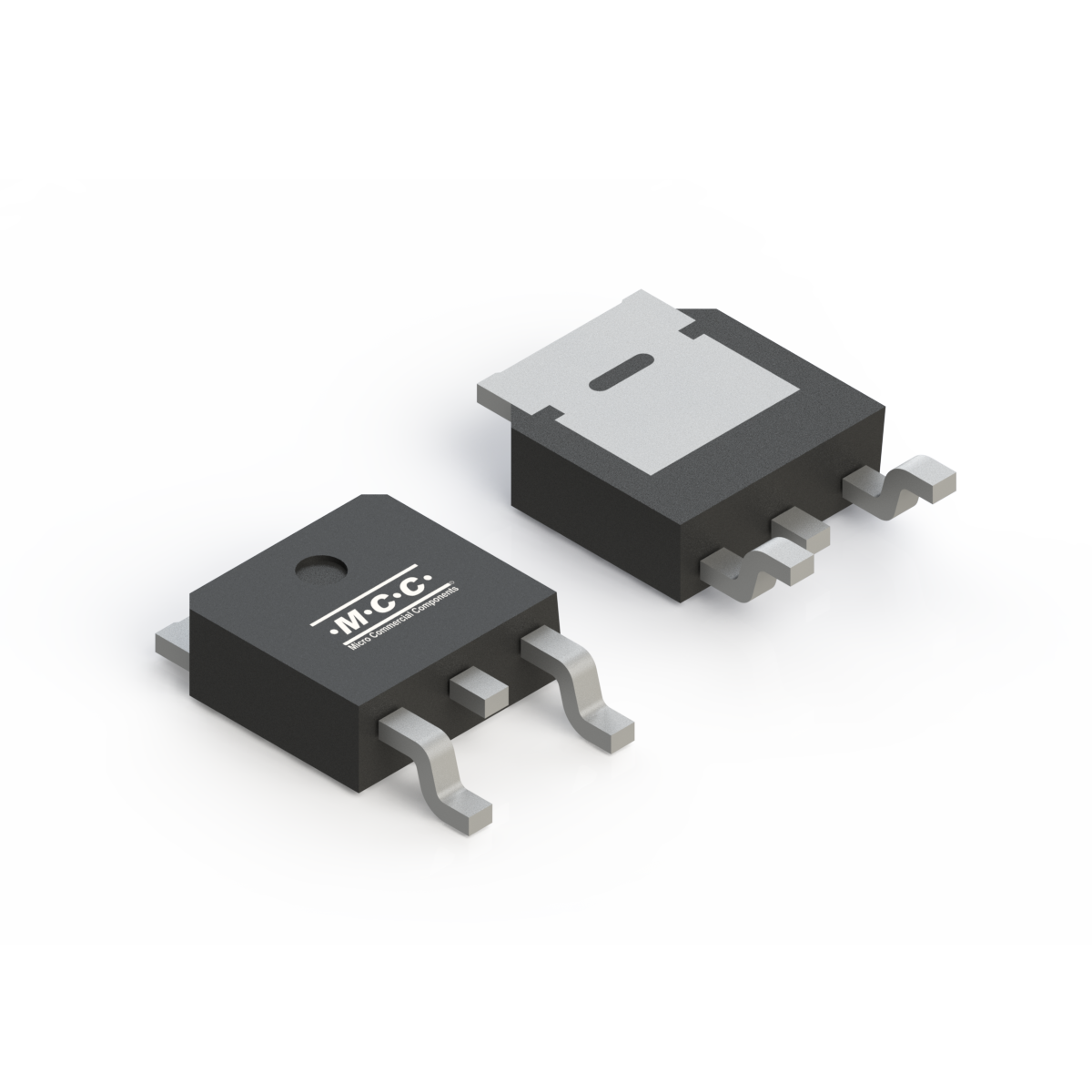

- Package Type:DPAK
- Packing Info:Tube: 80pcs/Tube, 4K/Box, 20K/Ctn;
- Category:Medium Power Bipolar Transistors
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| B772-Y | Single | PNP | 1.25 | -30 | -3 | 160 | 320 | -0.5 | 50 | 150 |
| Part Number B772-Y | Number of Functions Single | Polarity PNP | PD (W) 1.25 | VCEO(V) -30 | IC (A) -3 | HFE [min] 160 | HFE [max] 320 |
VCE(sat) [max] (V) -0.5 |
fT(MHz) 50 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Halogen Free | MTBF | FIT |
|---|---|---|
|
27479.27 | 4.2 |
