Medium Power Bipolar Transistors | Status :
Obsoleted
2SD1766-R
Last Time Ship Date:11-20-2021
EOL Notice

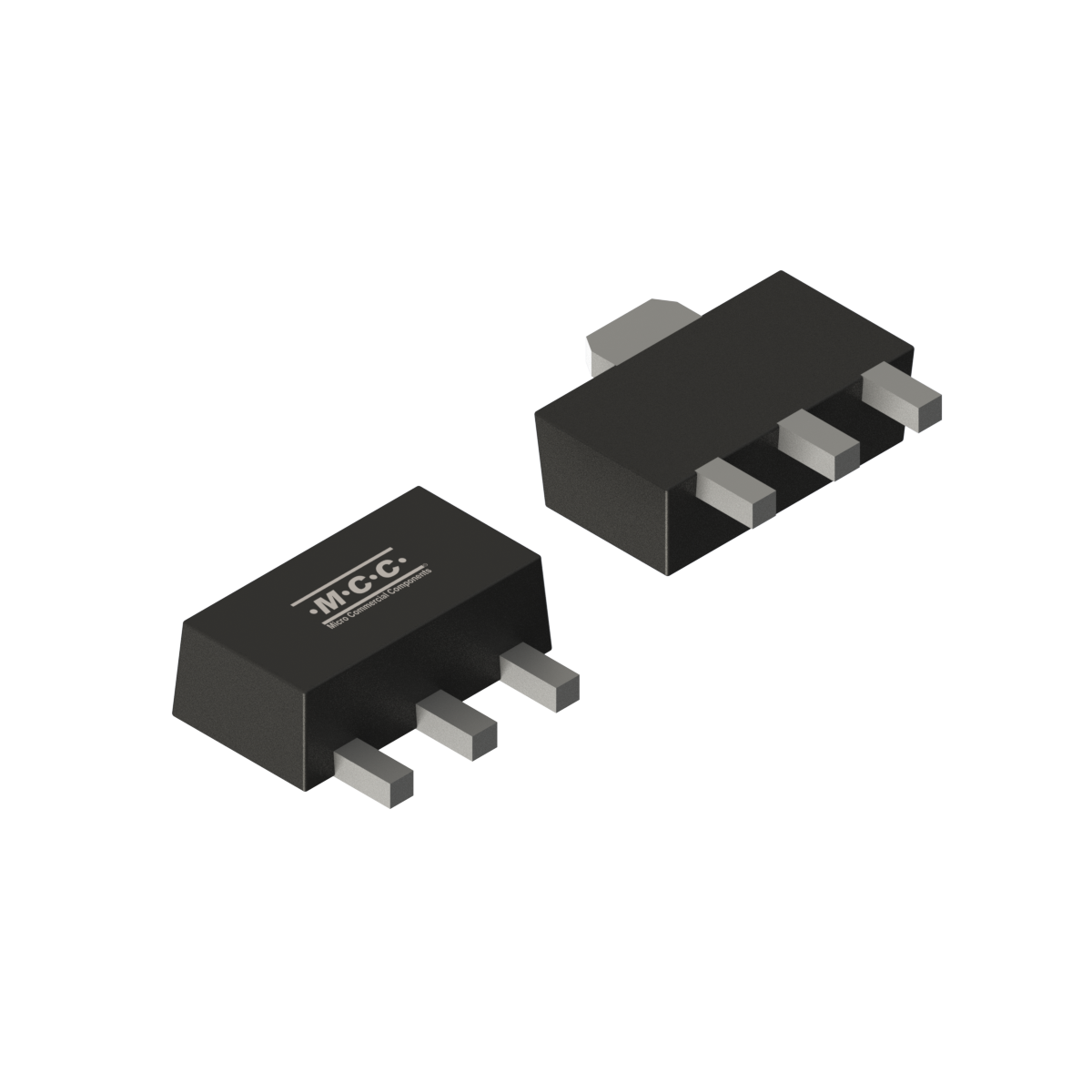

- Package Type:SOT-89
- Packing Info:Tape: 1K/Reel , 40K/Ctn;
- Category:Medium Power Bipolar Transistors
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2SD1766-R | Single | NPN | 0.5 | 32 | 1 | 180 | 390 | 0.8 | 100 | 150 |
| Part Number 2SD1766-R | Number of Functions Single | Polarity NPN | PD (W) 0.5 | VCEO(V) 32 | IC (A) 1 | HFE [min] 180 | HFE [max] 390 |
VCE(sat) [max] (V) 0.8 |
fT(MHz) 100 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free | MTBF | FIT |
|---|---|---|---|
|
|
22483.04 | 5.1 |
