SiC Schottky Diode Modules | Status :
Pre-Release

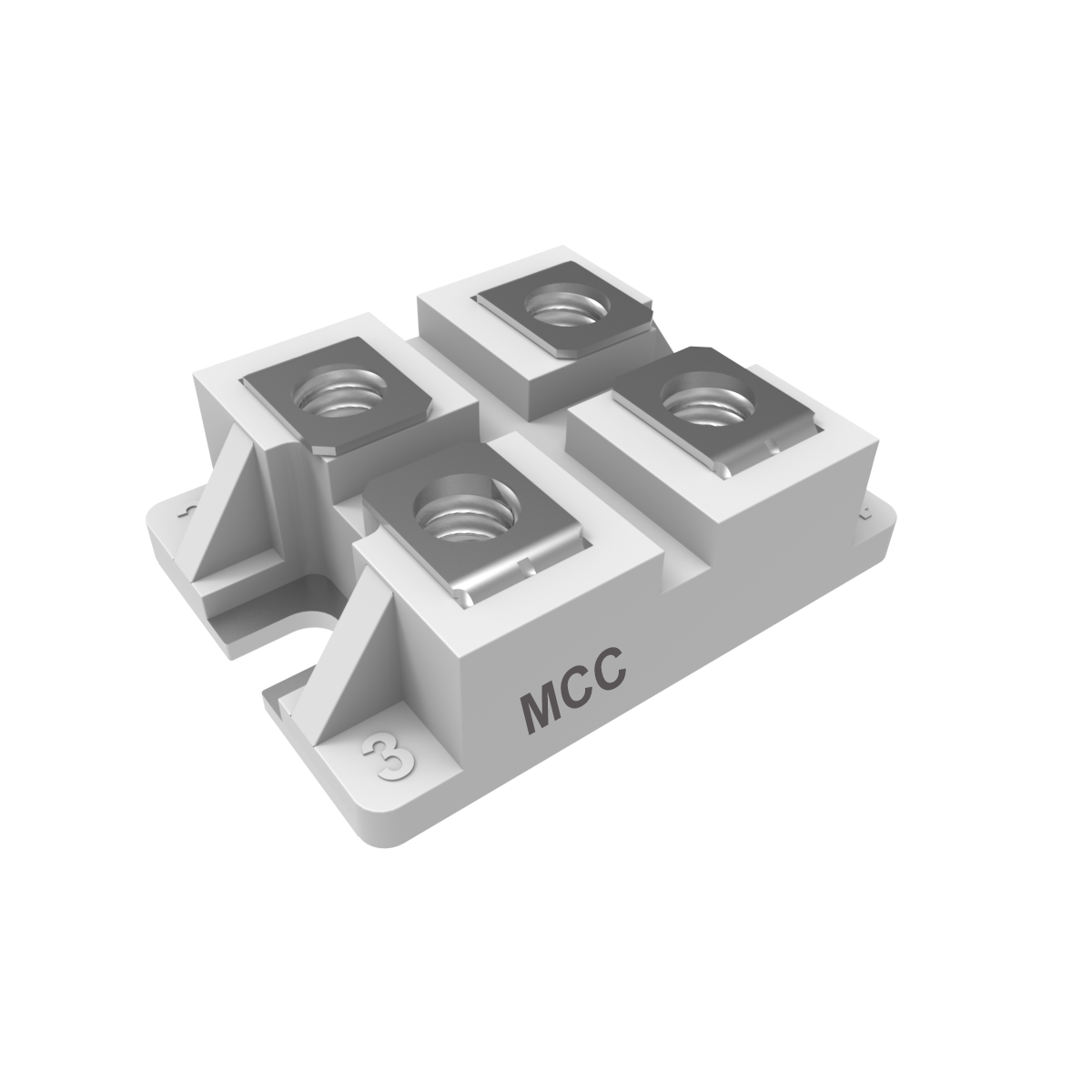

SICDFJ2X60120G4P
- Package Type:FJ
- Packing Info:Bulk: 25pcs/Box
- Category:SiC Schottky Diode Modules
Product Detail
| Part Number | Number of Functions | Peak Repetitive Reverse Voltage VRRM (V) |
Average Forward Current IF(AV)A) |
Peak Forward Surge Current IFSM (A) |
Forward Voltage VF (V) [max]@IF(A) |
At Rated Forward Current IF (A) |
Reverse Voltage Leakage Current IR (uA) [max] @ VR |
Maximum DC Blocking Voltage VR (V) |
Junction Temperature Tj [max] (°C) |
Power Rating PD(W) |
|---|---|---|---|---|---|---|---|---|---|---|
| SICDFJ2X60120G4P | Dual | 1200 | 2X30 | 215 | 1.7 | 30 | 100 | 1200 | 175 | 155 |
| Part Number SICDFJ2X60120G4P | Number of Functions Dual |
Peak Repetitive Reverse Voltage VRRM (V) 1200 |
Average Forward Current IF(AV)A) 2X30 |
Peak Forward Surge Current IFSM (A) 215 |
Forward Voltage VF (V) [max]@IF(A) 1.7 | At Rated Forward Current IF (A) 30 | Reverse Voltage Leakage Current IR (uA) [max] @ VR 100 | Maximum DC Blocking Voltage VR (V) 1200 | Junction Temperature Tj [max] (°C) 175 |
Packing Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| N/A | 0.00 | 0.0 |
